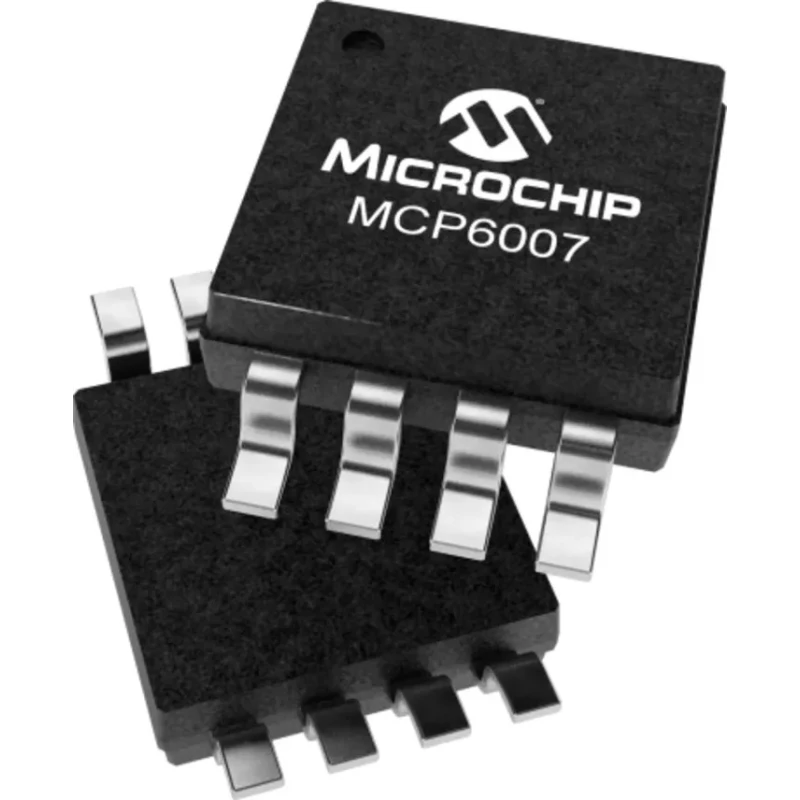

Microchip Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin MSOP, 5.5V MCP6007-E/SN

Microchip MCP6007-E/SN is a high precision operational amplifier designed with a 1 MHz typical gain bandwidth product and rail-to-rail input and output capability. Housed in a compact 8-pin MSOP package, this device operates from a single supply voltage ranging from 1.8V to a maximum of 5.5V. It boasts a very low input bias current of ±1 pA and a maximum input offset voltage of 1.6 mV, making it ideal for sensitive signal conditioning in industrial, automotive, and instrumentation applications.

The operational amplifier delivers a typical supply current of just 50 μA per amplifier, ensuring efficient power consumption in battery-powered and portable systems. It features a slew rate of 1.9 V/μs to handle fast transient signals effectively. The device is qualified to the AEC-Q100 automotive standard, signifying its robustness for automotive electronic systems.

With operating temperature support from -40°C up to 125°C, this amplifier can function reliably in harsh environments. The integrated EMI filtering enhances immunity to electromagnetic interference, ensuring signal stability and integrity in industrial environments.

The small outline MSOP package measures 3mm in length, 3mm in width, and 1.1mm in height, supporting surface mount assembly processes. This operational amplifier series from Microchip is suitable for designing precision amplification circuits in automotive electronics, industrial control, instrumentation, and consumer electronics sectors.

Features low input bias current of ±1 pA for precision applications. Operates with supply voltage range from 1.8V to 5.5V. Offers rail-to-rail input and output operation for wide dynamic range. Maximum input offset voltage of 1.6 mV enhances signal integrity.

Slew rate of 1.9 V/μs supports faster signal response. Typical supply current consumption is 50 μA per amplifier ensuring low power usage. Qualified to automotive standard AEC-Q100 for reliability in automotive environments.

Compact MSOP package with 8 pins, measuring 3mm length, 3mm width, and 1.1mm height. Designed to operate within temperature range of -40°C to +125°C for robust performance. Includes integrated EMI filtering for stable operation in noisy environments.

This Microchip operational amplifier MCP6007-E/SN is ideal for applications requiring stable and efficient signal amplification in automotive, industrial, manufacturing, and instrumentation electronic systems.
