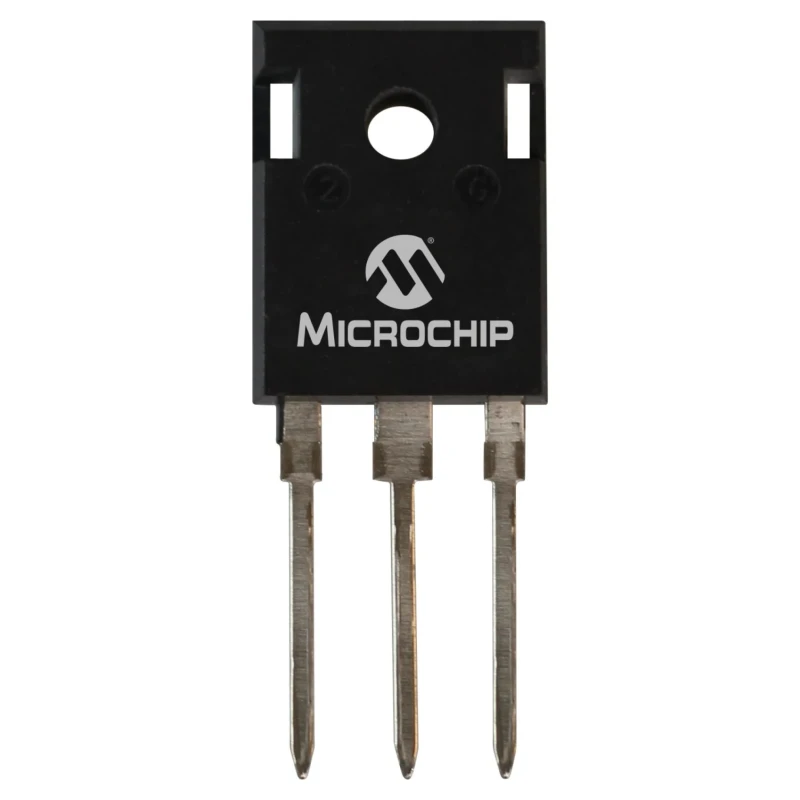

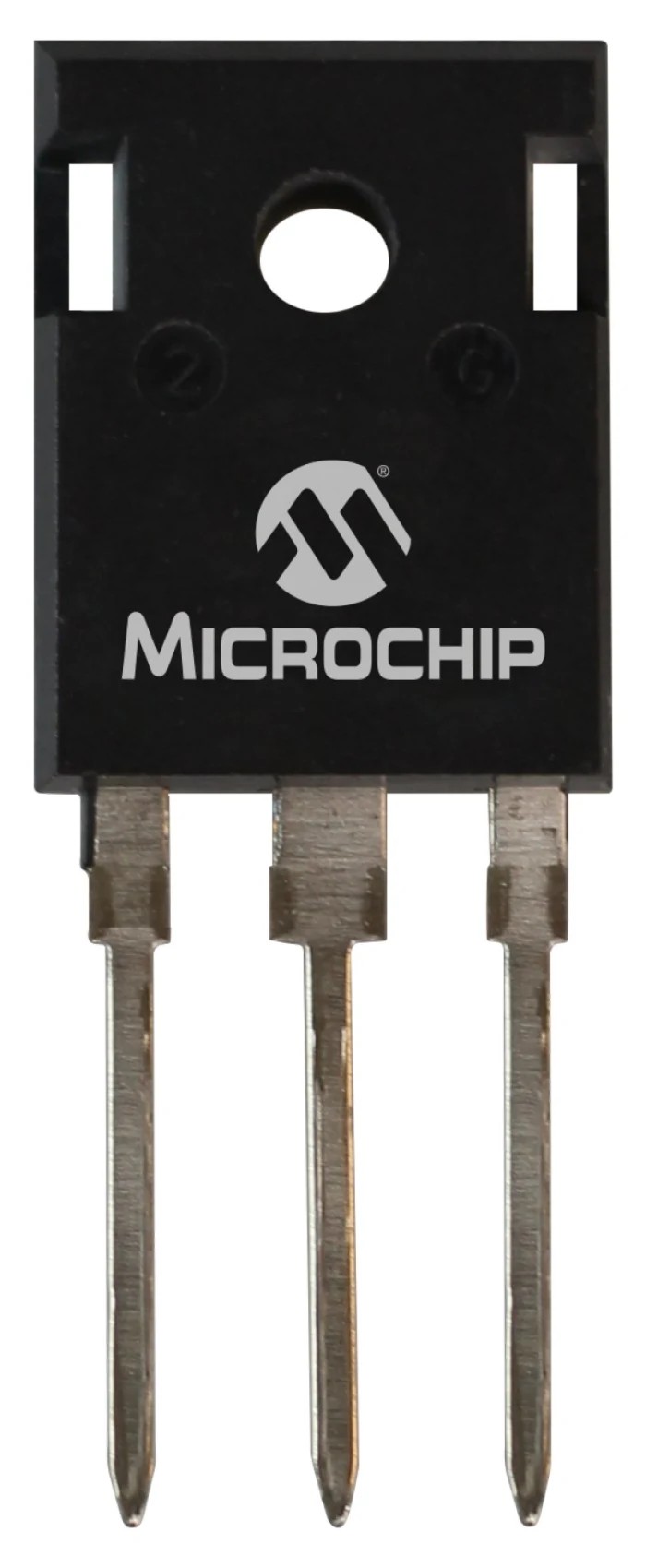

Microchip 1200 V 30 A Schottky Barrier Rectifier Diode TO-247 MSC030SDA120BCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC030SDA120BCT |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Schottky diode with 1200 V peak reverse voltage and 30 A continuous forward current.
- Through hole Mount Type with TO-247 package for robust mechanical support.
- Low forward voltage drop of 1.8 V reduces conduction power losses.
- Operates reliably from -55°C to 175°C temperature range for industrial use.
- Peak surge current rating of 75 A withstands transient overloads.
- RoHS compliant design supports environmental safety standards.
- Ideal for high frequency switching power supplies and rectifier circuits.
Product Description
Microchip MSC030SDA120BCT is a robust 1200 V Schottky barrier rectifier diode designed primarily for high-frequency power electronics applications where low forward voltage drop and minimal reverse recovery are essential. The diode's 30 A maximum continuous forward current and 75 A peak surge current ratings cater to demanding load conditions in industrial and commercial power systems.
Enclosed in a TO-247 package, this through-hole mounted device offers excellent thermal performance and mechanical stability, suitable for soldering onto printed circuit boards in power supply units, inverters, and voltage regulators.
Operating across a broad temperature range from -55°C to 175°C, this diode reliably performs under harsh environmental conditions often encountered in automotive, industrial, and telecommunications sectors.
Its low forward voltage of 1.8 volts reduces conduction losses, enhancing overall energy efficiency, while the device exhibits minimal leakage current to assure high reliability and longevity. Compliance with RoHS standards guarantees it meets modern environmental and safety requirements.
Applications include usage as a power-parallel diode in power supplies, freewheeling diode in motor drives, and as a rectifier in switching regulator circuits. The diode minimizes switching losses and improves system efficiency making it ideal for industrial machines, automated controllers, and power conversion equipment.
This Schottky diode supports through hole mounting in a TO-247 package. Maximum continuous forward current is 30 A with a peak forward surge current of 75 A. Rated peak reverse voltage of 1200 V ensures protection against voltage spikes.
Low forward voltage drop of 1.8 V enhances power efficiency. Wide operating temperature range from -55°C to 175°C suits diverse industrial environments. RoHS compliant device for environmentally safe applications. Explore related semiconductor components and power rectifier solutions within EnvMart’s Electronics & Electricals category for optimized power management and circuit protection.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Microchip MSC030SDA120BCT is 30 A.
This Schottky barrier rectifier diode has a peak reverse voltage rating of 1200 V.
The forward voltage drop of this model is 1.8 V, which helps reduce conduction power losses.
It operates reliably within a temperature range of -55°C to 175°C.
The peak surge current rating for the MSC030SDA120BCT is 75 A, allowing it to withstand transient overloads.
This diode supports through-hole mounting in a TO-247 package.
Yes, the Microchip MSC030SDA120BCT is RoHS compliant, meeting modern environmental safety standards.
It is suitable for high-frequency switching power supplies, rectifier circuits, and as a freewheeling diode in motor drives.
The package type of this diode is TO-247, which provides robust mechanical support.
This model belongs to the MSC0 series of Schottky diodes.
The Microchip MSC030SDA120BCT is manufactured in India.
The rectifier type of this component is Schottky, known for its low forward voltage drop and fast switching capabilities.
