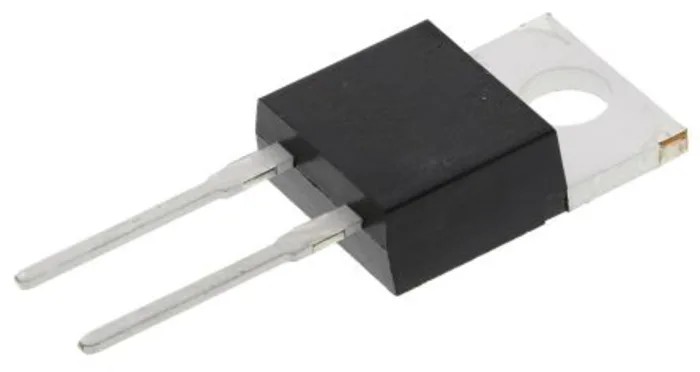

Microchip 1200 V 30 A Schottky Barrier Diode Through Hole TO-220 MSC030SDA120K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC030SDA120K |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Designed for high switching frequency applications.
- Features low forward voltage of 1.8 V to improve efficiency.
- Minimal leakage current for reliable performance.
- Avalanche-energy rated for surge tolerance.
- Operates in a wide temperature range from -55°C to 175°C.
- RoHS compliant ensuring environmental safety.
- Reliable for industrial electronic and power conversion applications.
Product Description
Microchip MSC030SDA120K is a high-performance Schottky barrier diode packaged in a through hole TO-220 enclosure, designed to support applications requiring rapid switching and efficient power rectification.
Its maximum peak reverse repetitive voltage (Vrrm) is 1200 V, while it supports a maximum continuous forward current (If) of 30 A. The low forward voltage drop of 1.8 V enhances conduction efficiency, minimizing power losses in electronic circuits.
This diode features zero recovery characteristics and low leakage current, critical for reducing switching noise and improving device reliability in demanding industrial environments.
With a peak non-repetitive forward surge current (Ifsm) rating of 75 A, this device can withstand transient surges, making it suitable for robust power conditioning and conversion applications.
The operating temperature ranges from -55°C to 175°C, ensuring stable performance across harsh conditions prevalent in manufacturing, automation, and power electronics sectors. Microchip’s MSC0 series diodes conform to RoHS directives, confirming compliance with environmental safety standards.
Designed for high switching frequency applications. Low forward voltage to improve efficiency and reduce heat dissipation. Low leakage current for reliable and stable operation. Rated for avalanche-energy to handle surge conditions.
Wide operating temperature range ensures usability in diverse environments. Through hole mounting with TO-220 package for easy integration. Suitable for power parallel diode configurations and power electronics.
This product finds applications in industrial power supplies, electronic switching equipment, power conversion modules, and other electronic components requiring high-performance Schottky diodes.
Explore more semiconductor products and components to support efficient industrial and electronic design at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage (Vrrm) of this diode is 1200 V.
This model supports a maximum continuous forward current (If) of 30 A.
The maximum forward voltage drop (Vf) is 1.8 V, which enhances conduction efficiency.
It operates within a temperature range of -55°C to 175°C.
The diode is packaged in a TO-220 enclosure, designed for through hole mounting.
The peak non-repetitive forward surge current (Ifsm) rating is 75 A.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
This diode is suitable for industrial power supplies, electronic switching equipment, and power conversion modules.
The rectifier type of this component is Schottky.
It features low leakage current, which is critical for reliable performance in electronic circuits.
This diode belongs to the MSC0 series.
The country of origin for this diode is India.
