Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 2-Wire 10mm Detection 264V XS1M30MA250

Free Delivery in India | Lowest Global Shipping Charges

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 2-Wire 10mm Detection 264V XS1M30MA250

Name: Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 2-Wire 10mm Detection 264V XS1M30MA250
Brand: Telemecanique Sensors
SKU: 114798
Price: 172.17 USD
Availability: InStock



Category Proximity Sensor Brand Telemecanique Sensors Condition New

Specifications

Country of Origin	India
Brand	Telemecanique Sensors
Length	55mm
Model	XS1M30MA250
Depth	36mm
IP Rating	IP68
Width	36mm
Mount Type	Flush
Housing Material	Nickel Plated Brass
Output type	2-Wire
Series	XS
Maximum Operating Temperature	70°C
Thread Size	M30 x 1.5
Minimum Operating Temperature	-25°C
Switching Current	300mA
Terminal type	Pre-Cabled
Body Style	Threaded Barrel
Maximum dc Voltage	264V dc
Shielding	Shielded
Maximum Switching Frequency	2kHz
Standards/Approvals	CE, RoHS, UL
Maximum AC Voltage	264V ac
Maximum Supply Voltage	264V
Maximum Detection	10mm

Key Features

Threaded barrel design with M30 x 1.5 thread size for flush mounting.
Robust nickel plated brass housing and PPS front material ensure durability.
Pre-cabled 2-wire output suitable for AC/DC applications.
High protection rating of IP68 enables operation in harsh environments.
Operating temperature range from -25°C to 70°C for versatile industrial use.
Maximum supply voltage of 264V AC/DC supports varied power conditions.
Switching frequency up to 2 kHz for fast detection response.
Inductive sensing technology ideal for detecting metal objects non-contact.

Product Description

Telemecanique Sensors XS1M30MA250 is a high-performance threaded barrel inductive proximity sensor designed for precise detection of metal objects within a nominal sensing distance of 10mm. Featuring an M30 x 1.5 thread size and a robust nickel plated brass housing, this flush-mount sensor ensures reliable operation in industrial, manufacturing, and automation applications.

The sensor operates on a maximum supply voltage of 264V AC/DC and supports 2-wire pre-cabled electrical connection, suitable for AC/DC circuits with short circuit protection. It offers a maximum switching frequency of 2 kHz and a switching current capacity of 300mA, enabling fast and accurate sensing.

With an IP68 ingress protection rating, the XS1M30MA250 sensor withstands dust and water immersion, making it ideal for demanding environments such as material handling, packaging, food processing, pharmaceutical, robotics, and conveyor systems. The sensor’s operating temperature range from -25°C to 70°C further adds to its versatility across various industrial settings.

The front material PPS and flush mounting capacity allow seamless integration into machinery and equipment, while the dual LED indicators provide visual confirmation of output state and power supply. The sensor complies with CE, RoHS, and UL standards and offers double insulation per IEC 60529.

Threaded barrel M30 x 1.5 with 51mm thread length for secure installation. Nickel plated brass housing offers corrosion resistance and mechanical strength. 10mm detection range suitable for metal object sensing applications.

2-wire AC/DC 264V pre-cabled connection for easy integration. IP68 rating protects against dust and water exposure in harsh conditions. Operating temperature between -25°C and 70°C supports varied industrial environments.

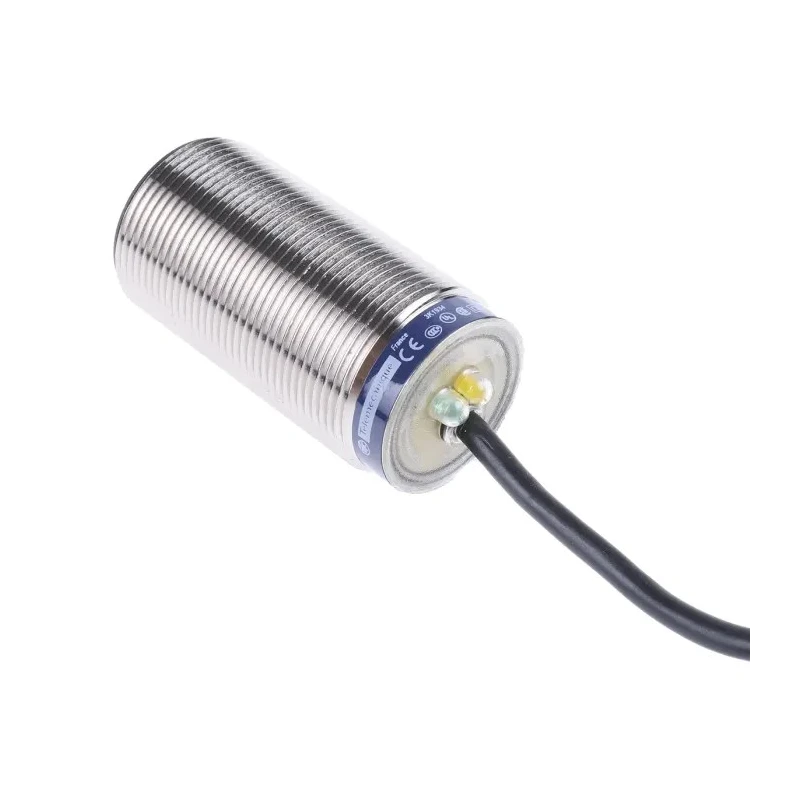

Maximum switching frequency of 2 kHz enables rapid sensor response. Output state and supply visible via yellow and green LEDs. Certified for safety and compliance: CE, RoHS, UL, CSA, CCC.

Telemecanique Sensors inductive Proximity Sensors in the OsiSense XS series are widely used in sectors such as railway, mobile equipment, lifts and escalators, material handling, machine tools, and packaging machinery due to their robust performance and long service life. Their electromagnetic detection principle renders them resistant to oil, dirt, and vibrations, ideal for challenging industrial conditions.

Explore the full range of Telemecanique Sensors at EnvMart for reliable automation and control gear solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum detection range of this model is 10mm, suitable for detecting metal objects.

This unit features an M30 x 1.5 thread size, allowing for flush mounting.

The maximum supply voltage for this sensor is 264V AC/DC, accommodating various power conditions.

It has an IP68 rating, which ensures protection against dust and water immersion, making it suitable for harsh environments.

The operating temperature range for this model is from -25°C to 70°C, allowing for versatile use in different industrial settings.

The maximum switching frequency is 2 kHz, enabling rapid detection response.

It provides a 2-wire output, suitable for both AC and DC applications with pre-cabled connections.

The housing is made of nickel plated brass, which offers corrosion resistance and mechanical strength.

The dimensions of this model are 55mm in length, 36mm in width, and 36mm in depth.

It complies with CE, RoHS, and UL standards, ensuring safety and environmental compliance.

The switching current capacity is 300mA, which supports effective operation in various applications.

This model is suitable for applications in material handling, packaging, food processing, and robotics due to its robust performance in industrial environments.
