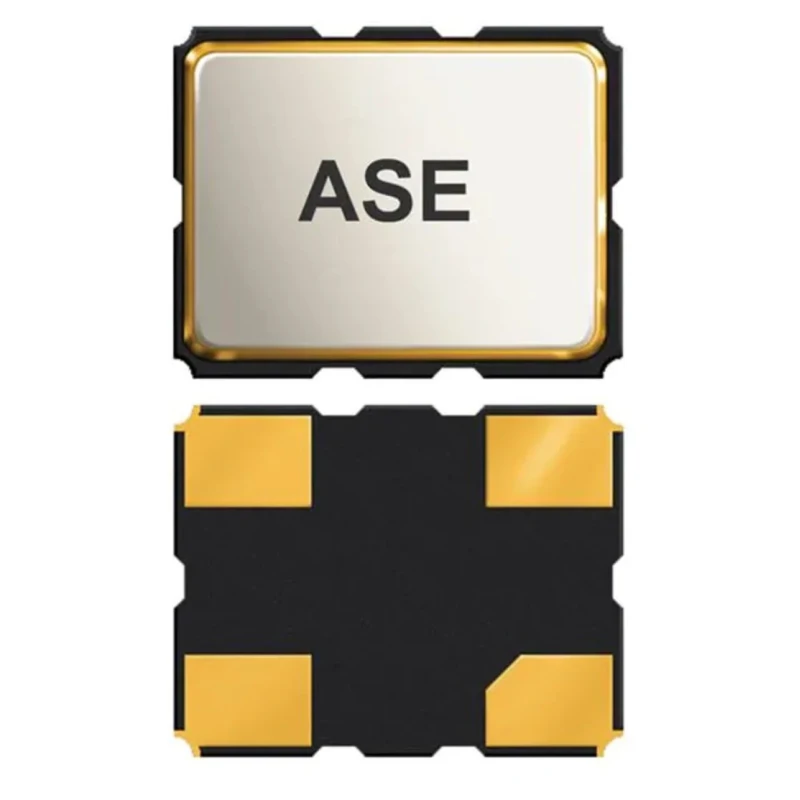

Abracon 4MHz Crystal Oscillator Surface Mount 4-Pin CMOS ±50 ppm ASE-4.000MHZ-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 3.2mm |
| Model | ASE-4.000MHZ-LC-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASE |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 4MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.47V |
| Minimum Supply Voltage | 3.14V |
| Oscillator Type | Crystal Oscillator |
| Output Level | CMOS |
Key Features
- Crystal oscillator offers a stable 4MHz output frequency for precise timing applications.
- Features CMOS output level suitable for digital circuits.
- Operates reliably within temperature range of -40°C to 85°C.
- Compact 4-pin surface mount package with dimensions 3.2mm x 2.5mm x 1.2mm.
- Supports supply voltage between 3.14V and 3.47V for low power consumption.
- RoHS compliant construction assures environmental safety and lead-free manufacturing.
- Excellent frequency stability of ±50 ppm ensures accurate and consistent signal generation.
- Suitable for use in CCD clocks for VTR cameras, PDAs, wireless communication devices, and laptops.
Product Description
Abracon ASE-4.000MHZ-LC-T is a highly reliable 4MHz crystal oscillator designed for surface mount technology (SMT) applications. It features CMOS output level with excellent frequency stability of ±50 ppm across a wide temperature range from -40°C to +85°C.
This compact 4-pin oscillator measures 3.2mm in length, 2.5mm in width, and 1.2mm in height, making it ideal for space-constrained electronic devices. The device operates at supply voltages between 3.14V and 3.47V, enabling low current consumption and efficient power management.
The oscillator is RoHS compliant, supporting environmentally responsible manufacturing practices. It is commonly used in timing-critical applications such as CCD clock generation for VTR cameras, PDAs, wireless communication modules, and laptop computers.
The ASE series is suitable for reflow soldering processes and is delivered in tape & reel packaging to support high-volume automated assembly. Its low profile and surface mount package type enable integration into compact printed circuit boards without compromising performance.
Crystal oscillator offers a stable 4MHz output frequency for precise timing applications. Features CMOS output level suitable for digital circuits. Operates reliably within temperature range of -40°C to 85°C. Compact 4-pin surface mount package with dimensions 3.2mm x 2.5mm x 1.2mm.
Supports supply voltage between 3.14V and 3.47V for low power consumption. RoHS compliant construction assures environmental safety and lead-free manufacturing. Excellent frequency stability of ±50 ppm ensures accurate and consistent signal generation.
Suitable for use in CCD clocks for VTR cameras, PDAs, wireless communication devices, and laptops. Low height profile design optimizes PCB space usage in compact electronic assemblies. Packaging in tape & reel format facilitates automated pick and place assembly processes.
This product is ideal for use in industrial, electronic manufacturing, telecommunications, consumer electronic devices, and laboratory equipment where stable and precise frequency generation is required.
Explore more Abracon Crystal Oscillators and other electronic components on EnvMart for reliable and efficient component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 4MHz, providing stable timing for various applications.
It operates reliably within a temperature range of -40°C to 85°C, suitable for a variety of environments.
This unit has dimensions of 3.2mm in length, 2.5mm in width, and 1.2mm in height, making it compact for space-constrained applications.
It supports a supply voltage range between 3.14V and 3.47V, allowing for low power consumption.
This oscillator features a CMOS output level, which is suitable for digital circuits.
It is packaged in tape & reel format, facilitating automated pick and place assembly processes in manufacturing.
This model has a pin count of 4, which is standard for many surface mount applications.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards and is lead-free.
It is commonly used in timing-critical applications such as CCD clocks for VTR cameras, PDAs, and wireless communication devices.
This oscillator belongs to the ASE series, which is designed for surface mount technology applications.
It offers excellent frequency stability of ±50 ppm, ensuring accurate and consistent signal generation.
The country of origin for this model is India, reflecting its manufacturing location.
