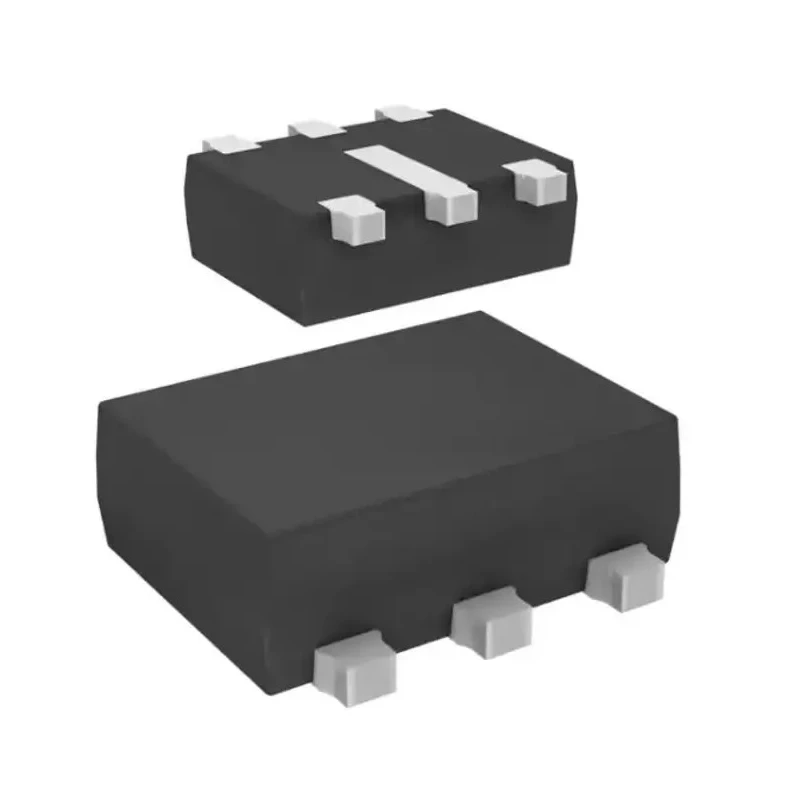

STMicroelectronics Bi-Directional TVS Diode Array 6-Pin SOT-666 ESDA25-4BP6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.7mm |
| Length | 1.7mm |
| Model | ESDA25-4BP6 |
| Width | 0.62mm |
| Mount Type | Surface |
| Series | ESDA25-4BP6 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-666 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC, RoHS |
| Pin Count | 6 |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25V |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- Designed to protect up to 5 lines against ESD transients.
- Minimum breakdown voltage of 25V for reliable voltage suppression.
- Operating temperature range from -55°C to 150°C.
- Low leakage current less than 1 μA enhances circuit stability.
- Complies with IEC and RoHS standards for safety and environment.
- Automotive grade compliant to AEC-Q101 standard.
- Compact dimensions of 1.7mm x 0.62mm x 1.7mm suitable for dense boards.
Product Description
STMicroelectronics ESDA25-4BP6 Bi-Directional TVS Diode Array is engineered to safeguard sensitive electronic circuits from electrostatic discharge and transient voltage spikes. This device is available in a compact 6-pin SOT-666 surface-mount package optimized for space-saving on high-density printed circuit boards.
Featuring a minimum breakdown voltage of 25V and high ESD protection capabilities, the array protects up to five lines from damage caused by sudden voltage transients. It boasts very low leakage current, less than 1 microampere, thereby maintaining circuit integrity and reducing power loss.
The diode array operates reliably within a temperature range of -55°C to +150°C, making it suitable for automotive and industrial environments that demand high thermal tolerance. Compliance with IEC and RoHS standards ensures the product meets stringent quality and environmental regulations. Automotive industry users benefit additionally from its qualification to the AEC-Q101 standard, certifying robustness under harsh vehicle operating conditions.
Its small footprint of 1.7mm length, 0.62mm width, and 1.7mm height facilitates easy integration into compact designs where board space is limited. The device is ideal for use in industrial automation, automotive electronics, telecommunications, and consumer electronics circuits requiring robust transient voltage suppression to enhance reliability.
Designed to protect up to five lines against ESD transients. Minimum breakdown voltage of 25V ensures effective voltage clamping. Low leakage current less than 1 μA minimizes power consumption. Surface mountable SOT-666 package suitable for high density PCB layouts.
Operating temperature range from -55°C to 150°C supports demanding applications. Complies with IEC and RoHS standards for safety and environmental compliance. Automotive AEC-Q101 qualified, suitable for vehicle electronic systems.
This diode array is a reliable solution for engineers seeking to protect sensitive circuitry from damaging voltage spikes in a compact form factor. Browse the Electronics & Electricals, Semiconductor, TVS Diode Array category on EnvMart for more options from STMicroelectronics and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of the ESDA25-4BP6 is 25V, ensuring effective voltage clamping for protection against transients.
This model operates reliably within a temperature range of -55°C to +150°C, making it suitable for demanding applications.
It is designed to protect up to five lines against electrostatic discharge (ESD) transients.
The dimensions of the SOT-666 package are 1.7mm in length, 0.62mm in width, and 1.7mm in height.
The maximum reverse leakage current for the ESDA25-4BP6 is less than 500nA, which helps maintain circuit stability.
This diode array complies with IEC and RoHS standards, ensuring safety and environmental compliance.
Yes, it is automotive grade compliant to the AEC-Q101 standard, making it suitable for vehicle electronic systems.
The ESDA25-4BP6 features a surface mount type, optimized for high-density PCB layouts.
This model has a pin count of 6, which is typical for its SOT-666 package.
It is suitable for industrial automation, automotive electronics, telecommunications, and consumer electronics circuits that require robust transient voltage suppression.
The low leakage current of less than 1 μA enhances circuit stability and reduces power loss, contributing to overall efficiency.
The country of origin for this diode array is India.
