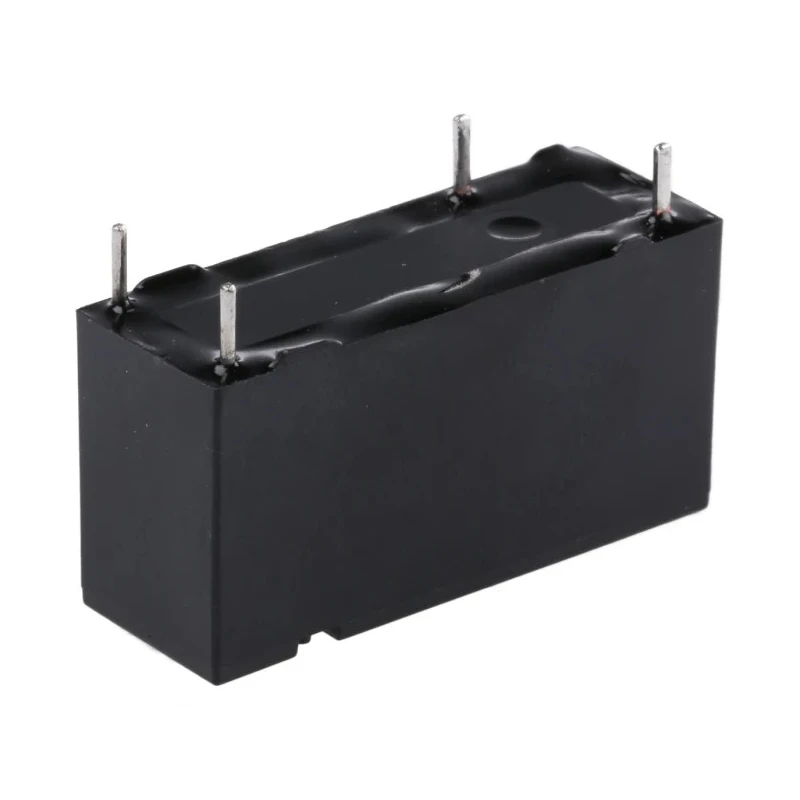

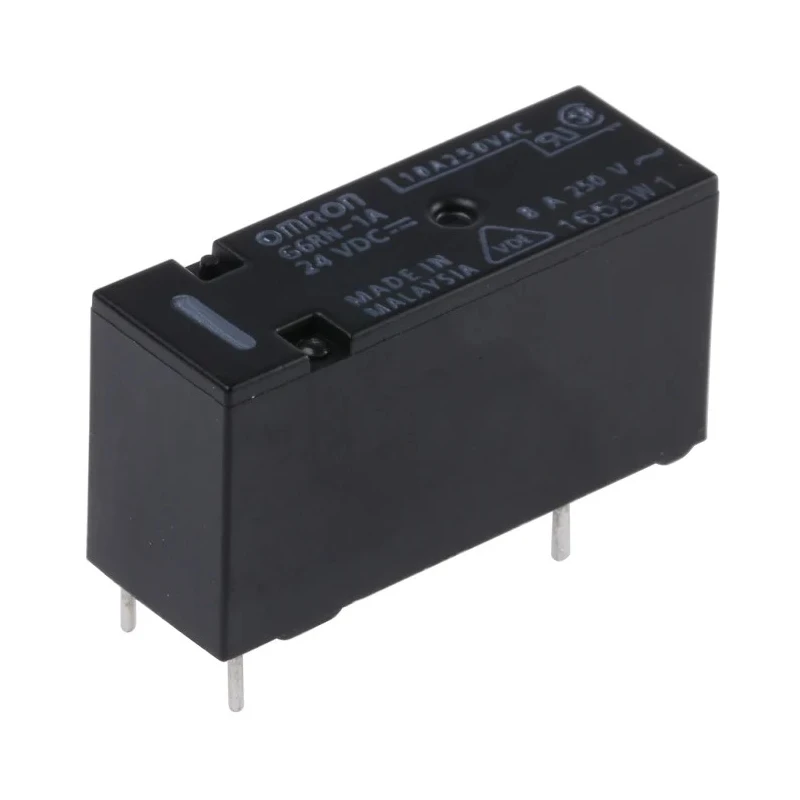

Omron PCB Power Relay 24V dc Coil 8A Switching Current SPST G6RN-1A DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Operating Temperature | -40 → +85°C |
| Height | 15.3mm |
| Length | 28.8mm |
| Model | G6RN-1A DC24 |
| Width | 10.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6RN |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Mechanical Life | 10 x 106 |
| Coil Resistance | 2.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 220mW |
| Minimum contact load | 100mA @ 5mVdc |
| OMRON G6R1-A PCB RLY24VDCBrand | NEUTRAL |
Key Features
- Coil voltage rated at 24V DC for efficient operation.
- Single Pole Single Throw (SPST) contact configuration enables simple switching.
- Supports a switching current up to 8 amperes for versatile applications.
- Coil resistance is 2.6kΩ providing stable coil performance.
- Compact dimensions with length 28.8mm, width 10.5mm, and height 15.3mm.
- Gold plated contacts ensure low contact resistance and high reliability.
- Operating temperature range from -40°C to 85°C for durability in various environments.
- Mechanical life rated at 10 million operations guaranteeing long-term usage.
Product Description
Omron G6RN-1A DC24 PCB Power Relay features a 24V DC coil and supports an 8A switching current with a Single Pole Single Throw (SPST) contact configuration. Designed for PCB mounting with solder terminals, this relay provides reliable and efficient switching performance.
The relay's coil resistance is 2.6kΩ with coil power consumption of 220mW, enabling optimized energy use. Its gold plated contacts reduce contact resistance to approximately 50mΩ, ensuring effective electrical conduction and durability.

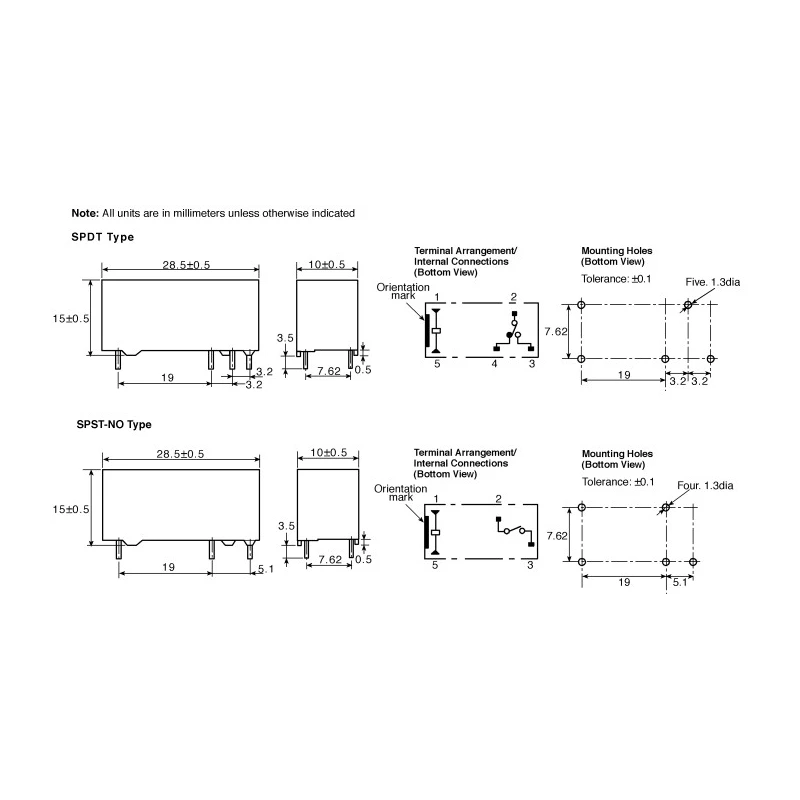

With a compact size measuring 28.8 mm in length, 10.5 mm in width, and 15.3 mm in height, this relay integrates easily into PCB assemblies. It operates within a temperature range of -40°C to 85°C, making it suitable for various industrial and commercial applications requiring robust performance under varying environmental conditions.
The mechanical durability of this relay is rated at 10 million operations, ensuring a reliable lifespan for switching uses up to 2 kVA. Its minimum contact load is 100mA at 5mV DC, providing versatility for both control and power circuits.
This enclosed relay complies with RoHS standards, supporting environmentally responsible manufacturing and use. The combination of gold plated contacts and a fully sealed design assures long-term operational reliability in automated control systems, power switching, and other industrial equipment.
Coil voltage: 24V DC. Contact configuration: SPST. Switching current: 8A. Gold plated contact material. Operating temperature range: -40°C to 85°C. Mechanical life: 10 million operations. Switching power: 2 kVA maximum. Mount type: PCB solder terminal.
This Omron power relay is ideal for industrial electronic circuits, automation, HVAC controllers, power supply modules, signal conditioning, and manufacturing equipment requiring high reliability in a compact form factor.
Discover more options and detailed industrial electrical components in the Electronics & Electricals category on EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rated at 24V DC, which allows for efficient operation.
It supports a maximum switching current of 8 amperes, making it suitable for various applications.
This model features a Single Pole Single Throw (SPST) contact configuration, enabling simple switching.
The relay has compact dimensions of 28.8 mm in length, 10.5 mm in width, and 15.3 mm in height.
It operates within a temperature range of -40°C to 85°C, suitable for various environments.
The coil resistance is 2.6kΩ, providing stable coil performance during operation.
The mechanical life of this relay is rated at 10 million operations, ensuring long-term usage.
It features solder terminals for PCB mounting, facilitating easy integration into electronic circuits.
The contacts are gold plated, which helps reduce contact resistance and enhances reliability.
The minimum contact load is 100mA at 5mV DC, allowing versatility for control and power circuits.
This relay complies with RoHS standards, supporting environmentally responsible manufacturing and use.
The maximum switching power for this relay is 2 kVA, suitable for various industrial applications.
