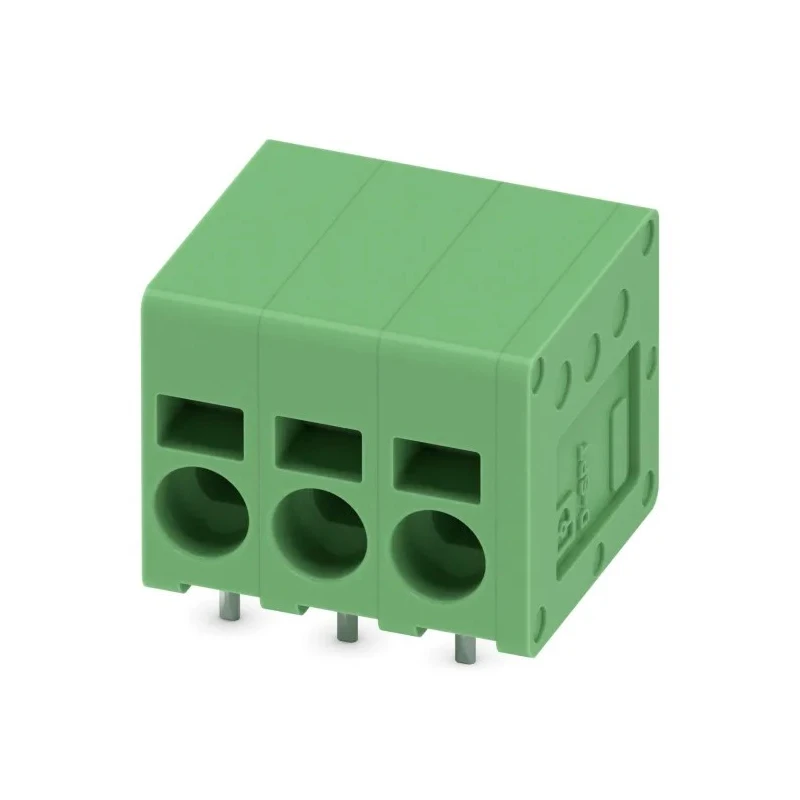

Phoenix Contact SPT 2.5/3-H-5.0 Series PCB Terminal Block, 3-Contact, 5 mm Pitch, 1 Row, 400V, 24A, Polyamide Housing 1990986
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 24A |
| Length | 16.4mm |
| Model | 1990986 |
| Depth | 14.4mm |
| Width | 13.5mm |
| Housing Material | Polyamide |
| Series | SPT 2.5/3-H-5.0 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Spring Cage |
Key Features
- The terminal block features a green polyamide housing that ensures durability.
- It uses a spring cage wire connection method designed for both solid and stranded wires.
- Wire size compatibility ranges from 0.2 mm² (24 AWG) to 4 mm² (12 AWG).
- The block has a straight orientation, facilitating easy PCB integration.
- Designed as part of the SPT 2.5/3-H-5.0 series, it offers reliable screwless push-in connections.
- Made in Germany, adhering to industrial quality standards.
Product Description
The Phoenix Contact 1990986 SPT 2.5/3-H-5.0 Series PCB Terminal Block is a high-quality pluggable terminal designed for electronic and electrical applications requiring reliable and compact connections. This model is engineered as a 3-contact, single-row terminal block with a 5 mm pitch, supporting up to 24A current and 400V voltage, making it suitable for various industrial control and automation systems.
Constructed with a robust green polyamide housing, the terminal block ensures both mechanical stability and electrical insulation. Its spring cage connection method allows for quick and secure wire termination for solid or stranded conductors, eliminating the need for screws and increasing assembly efficiency. For solid non-ferruled wires, a screwdriver can be used to open the terminal connection.
This terminal block supports a wire cross-section from 0.2 mm² up to 4 mm², equivalent to 24 AWG to 12 AWG wire sizes, accommodating typical wiring requirements in PCB applications. The straight orientation aligns well with vertical and horizontal mounting options on printed circuit boards, providing versatile installation capabilities.
Key technical dimensions include a length of 16.4 mm, width of 13.5 mm, and depth of 14.4 mm, contributing to a compact PCB footprint. It is part of the COMBICON SPT 5.0 mm series known for screwless push-in spring cage terminals, which enhances both reliability and ease of use in industrial electronics, manufacturing equipment, and control cabinets.
The terminal block’s polyamide housing offers excellent durability and heat resistance for long-term operation. The spring cage mechanism provides secure wire tension and vibration resistance. Facilitates quick installation and maintenance in industrial machinery and automation panels.
Compatible with standard PCB layouts that require 5 mm pitch spacing between contacts. Manufactured in Germany to meet stringent quality and safety standards.
This Phoenix Contact terminal block is widely used in industrial automation systems, manufacturing equipment, HVAC controls, power distribution panels, and other electronic assembly applications. Its proven design and construction guarantee consistent electrical performance and operational safety over extended service life.
Explore more high-quality Phoenix Contact components within the EnvMart platform for reliable industrial and electronic solutions.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 400V and a current rating of 24A.
It is compatible with wire sizes ranging from 0.2 mm² (24 AWG) to 4 mm² (12 AWG).
The pitch size of this terminal block is 5 mm.
The dimensions are 16.4 mm in length, 13.5 mm in width, and 14.4 mm in depth.
It utilizes a spring cage wire connection method, allowing for quick and secure termination of both solid and stranded wires.
This terminal block features 3 contacts.
The orientation of this terminal block is straight, facilitating easy integration onto PCBs.
The housing is made from polyamide, which provides durability and heat resistance.
It is manufactured in Germany, adhering to industrial quality standards.
This terminal block is part of the SPT 2.5/3-H-5.0 series.
It is suitable for various industrial control and automation systems, as well as electronic assembly applications.
The straight orientation allows for both vertical and horizontal mounting options on printed circuit boards.
