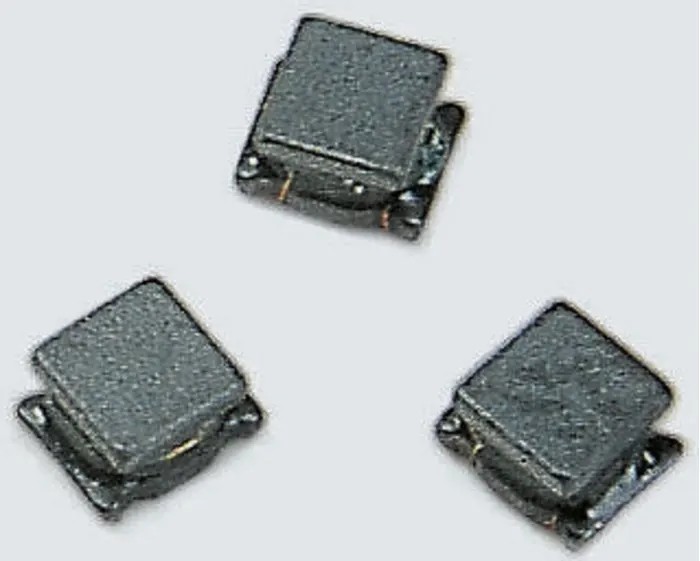

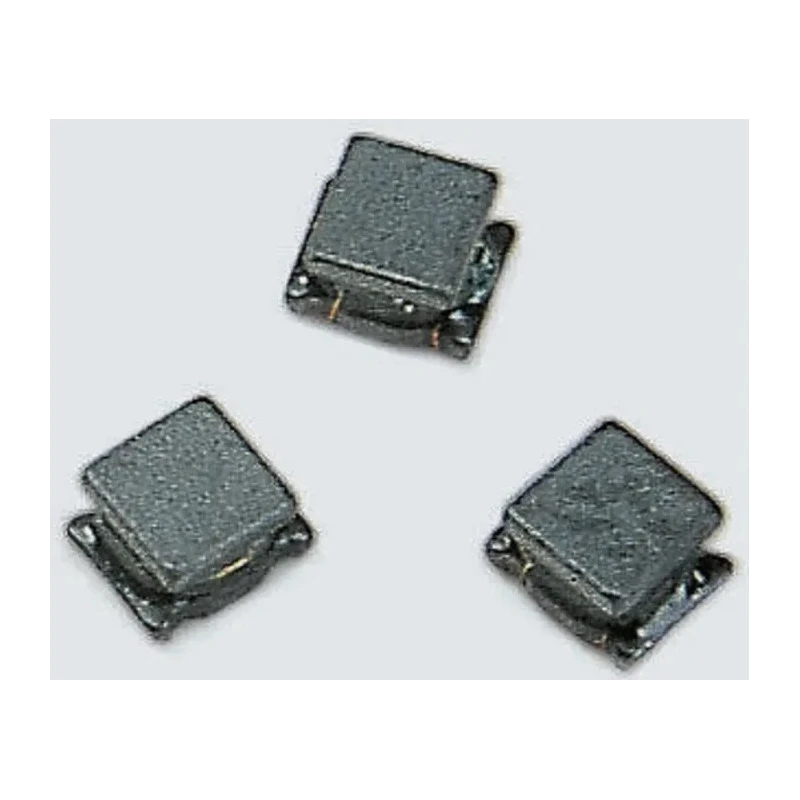

Murata Wirewound Surface Mount Inductor 330μH ±5% 95mA 1812 Ferrite Core LQH43MN331J03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43MN331J03L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 95mA |
| Pin Count | 2 |
| Maximum DC Resistance | 8.2Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.6MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- This inductor features a ferrite core and wirewound construction for high frequency and low DC resistance performance.
- The 1812 package size provides compact surface mount usage with 4.5mm length and 2.6mm height.
- It supports a maximum operating temperature of 85°C and minimum -40°C for reliable use in various environments.
- The component offers a quality factor (Q) of 40 and maximum self-resonant frequency of 3.6MHz.
- Termination style is solder, and the package comes in embossed tape format suitable for automated assembly.
- This RoHS compliant inductor is molded and unshielded for general electronics applications.
- Manufactured in Japan, it is designed for consistent inductance and durability over its operating range.
Product Description
Murata LQH43MN331J03L Wirewound Surface Mount Inductor provides precise 330μH inductance with ±5% tolerance and supports a maximum DC current of 95mA. Designed with a ferrite core and wirewound construction, this 1812 case size inductor offers low DC resistance of 8.2Ω and a quality factor of 40, ensuring high performance at high frequencies up to 3.6MHz.

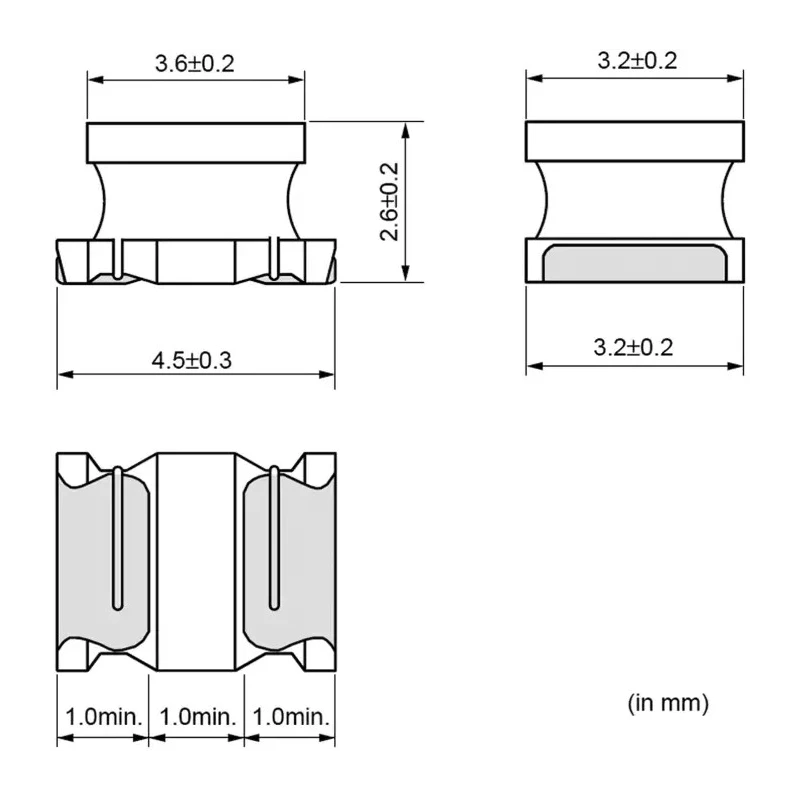

The inductor measures 4.5mm in length, 2.6mm in height, and 3.2mm in depth, making it suitable for surface mount technology on compact PCBs. Its termination style is solder, and it is packaged in an embossed tape format allowing for streamlined automated placement in manufacturing processes.
Operating reliably from -40°C up to 85°C, this component is RoHS compliant and molded for added durability. The device is unshielded, which facilitates integration into various applications including power supplies, filtering, and signal conditioning in industrial, automotive, consumer electronics, and telecommunications sectors.
Manufactured in Japan, the LQH43MN331J03L combines quality construction with high current and inductance specifications, suitable for demanding electronics designs. Its wirewound construction ensures consistent electrical and mechanical performance over its lifespan.
This inductor features a ferrite core and wirewound construction for high frequency and low DC resistance performance. The 1812 package size provides compact surface mount usage with 4.5mm length and 2.6mm height. It supports a maximum operating temperature of 85°C and minimum -40°C for reliable use in various environments.
The component offers a quality factor (Q) of 40 and maximum self-resonant frequency of 3.6MHz. Termination style is solder, and the package comes in embossed tape format suitable for automated assembly. This RoHS compliant inductor is molded and unshielded for general electronics applications.
Manufactured in Japan, it is designed for consistent inductance and durability over its operating range. Explore more high-quality Surface Mount Inductors and Murata components at EnvMart for reliable electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 330μH with a tolerance of ±5%.
It supports a maximum DC current of 95mA.
The inductor measures 4.5mm in length, 2.6mm in height, and 3.2mm in depth.
The maximum operating temperature is 85°C, while the minimum is -40°C.
The termination style is solder, allowing for easy mounting on PCBs.
It has a maximum self-resonant frequency of 3.6MHz.
The inductor offers a quality factor of 40.
It is constructed with a ferrite core, which is suitable for high frequency applications.
The inductor is packaged in embossed tape format, which is suitable for automated assembly.
Yes, this inductor is RoHS compliant, ensuring it meets environmental standards.
It is suitable for various applications including power supplies, filtering, and signal conditioning in electronics.
This model is manufactured in Japan, ensuring quality construction.
