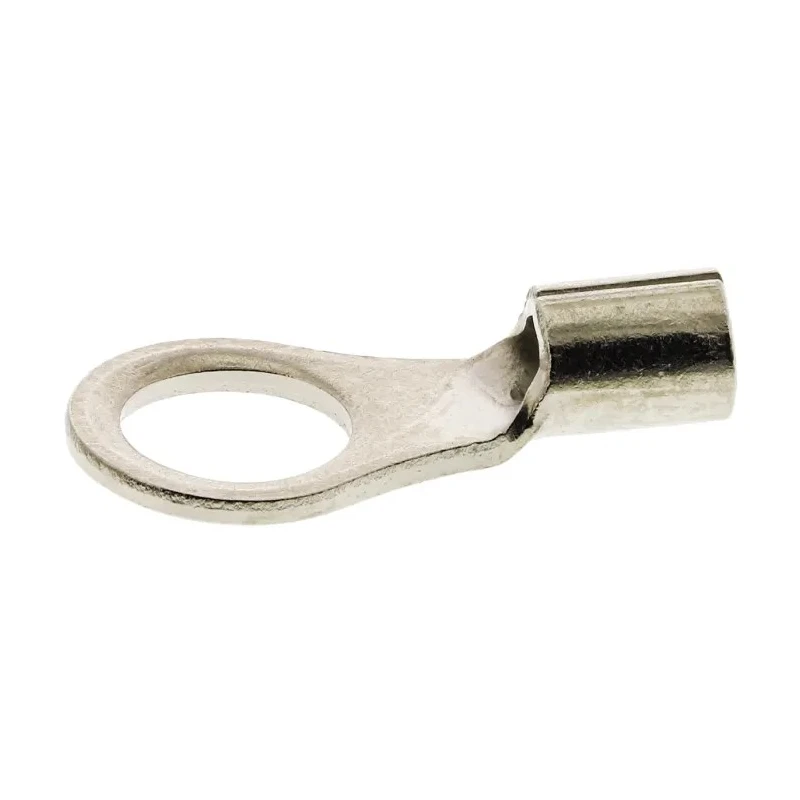

TE Connectivity STRATO-THERM Uninsulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Copper Nickel Plated 322799
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 322799 |
| Insulation | Uninsulated |
| Overall Length | 14.58mm |
| Contact Material | Copper |
| Series | STRATO-THERM |
| Maximum Operating Temperature | 343°C |
| Standards/Approvals | RoHS |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed from nickel-plated electrolytic copper to ensure optimal conductivity.
- Designed for high-temperature applications with a maximum operating temperature of 343°C.
- Complies with RoHS standards for environmental and safety compliance.
- Features a 7.14mm outer ring diameter and 5mm inner ring diameter suitable for M5 studs.
- Offers a thickness of 0.79mm and an overall length of 14.58mm for robust mechanical stability.
- Suitable for terminating solid or stranded conductors in industrial, electronic, and electrical applications.
- Provides reliable electrical contact by forcing wire into serrations during crimping.
Product Description
TE Connectivity 322799 STRATO-THERM uninsulated ring terminal is engineered for demanding electrical connections requiring high heat resistance and mechanical durability. It is specified for a stud size of M5 and accommodates wire gauges from 22 AWG to 16 AWG, making it versatile for various wire sizes.
Manufactured from electrolytic copper with a nickel plating, this terminal offers excellent conductivity and corrosion resistance. The STRATO-THERM series is designed for applications where standard insulated crimps are unsuitable due to high operating temperatures, withstanding up to 343°C (650°F).
The terminal features a 7.14mm outer ring diameter and a 5mm inner ring diameter to fit securely on M5 size studs. With a thickness of 0.79mm and overall length of 14.58mm, it provides robust mechanical support and ease of installation in tight spaces.
This product is compliant with RoHS regulations, reflecting commitment to reduced hazardous substances for safer industrial use. It ensures secure termination for both solid and stranded conductors, with the crimp barrel's serrations maximizing electrical contact area during crimping for reliable conductivity.
Nickel-plated electrolytic copper contact material ensures durability. Uninsulated design suitable for high-temperature environments. Maximum operating temperature of 343°C supports harsh industrial processes. Precise dimensional compliance for M5 stud size installations.
Complies with RoHS standards, safe for electronic and electrical manufacturing. Compatible with 22 to 16 AWG wires for flexible usage. Optimized crimp design enhances electrical and mechanical connection strength.
This ring terminal is ideal for industrial, laboratory, construction, HVAC, manufacturing, and electronic assembly applications, where durable, heat-resistant electrical connections are critical. The reliable STRATO-THERM series terminals provide excellent performance in challenging environments.
Choose TE Connectivity STRATO-THERM ring terminals to ensure robust, high-quality wire termination solutions. Explore more in our Electronics Components category on EnvMart for tailored industrial electrical connectivity solutions.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this terminal is 343°C (650°F), making it suitable for high-temperature applications.
This uninsulated ring terminal accommodates wire gauges from 22 AWG to 16 AWG.
The outer ring diameter is 7.14mm, the inner ring diameter is 5mm, and the overall length is 14.58mm.
It is constructed from nickel-plated electrolytic copper, providing excellent conductivity and corrosion resistance.
The thickness of this ring terminal is 0.79mm.
This model is uninsulated, designed for applications where standard insulated terminals are unsuitable due to high temperatures.
This terminal is designed for a stud size of M5.
Yes, it complies with RoHS standards, reflecting a commitment to reduced hazardous substances.
It is suitable for terminating both solid and stranded conductors in various applications.
This model is ideal for industrial, laboratory, construction, HVAC, manufacturing, and electronic assembly applications.
The crimp barrel's serrations maximize the electrical contact area, ensuring reliable conductivity during crimping.
The country of origin for this terminal is India.
