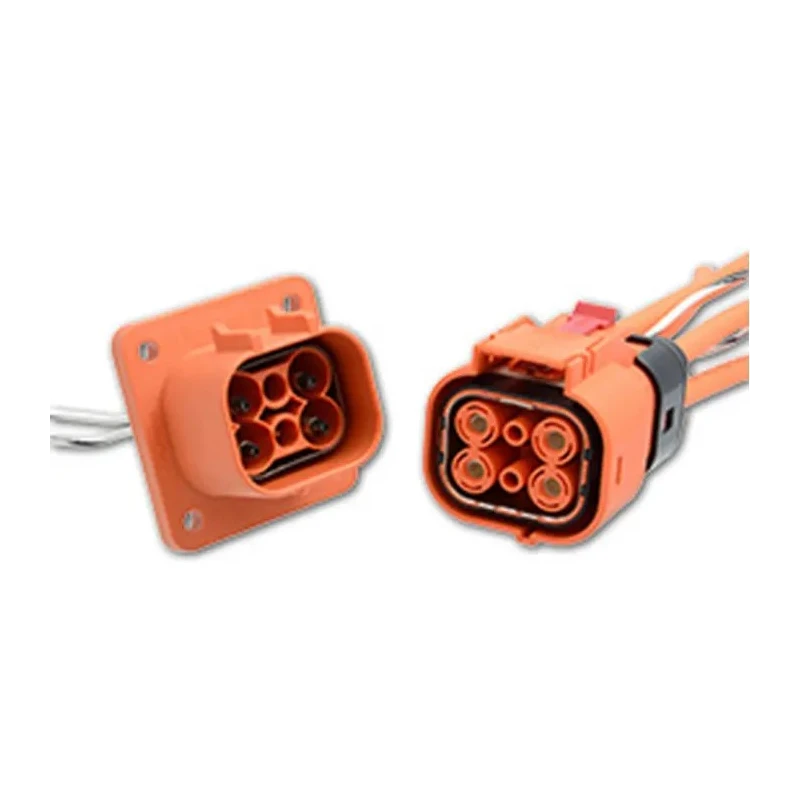

Amphenol Industrial EV Connector RADSOK Receptacle with HVIL Female Panel Mount 70A 800V ELR2U03 / C10-738025-2UP3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 40.6mm |
| Model | ELR2U03 / C10-738025-2UP3 |
| Depth | 37mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Receptacle with HVIL |
| Width | 45.4mm |
| Mount Type | Panel Mount |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 1 |
| Wire size | 6mm² |
| Operating Voltage | 800V |
| For Use With | 2 Position ePower-Lite Plug with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Key Type | U |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- Features durable RADSOK technology for low resistance and high amperage.
- Connector has one row with two contacts and supports 6mm² wire size.
- Rated for temperatures from -40°C to 125°C with IP67 waterproof protection.
- Constructed with flame-retardant plastic housing and offers straight orientation for easy installation.
- Meets IEC 60529 and UL 94 V-0 standards for touch proof and flammability.
- Colored in orange with a U key type to prevent mis-mating.
- Includes a male contact gender with crimp termination.
- Designed for use with 2-position ePower-Lite plug with HVIL for enhanced safety.
Product Description
Amphenol Industrial ELR2U03 / C10-738025-2UP3 EV Connector RADSOK Receptacle with HVIL Female is a specialized high-performance connector designed for electric and hybrid vehicle applications operating at 800 volts and supporting a continuous current of 70 amperes. This panel mount connector is engineered to provide reliable, low-resistance electrical connection with enhanced safety features using RADSOK technology.
The compact, lightweight design features a robust plastic housing that offers excellent dielectric and flame-retardant properties meeting UL 94 V-0 certification. Its waterproof rating of IP67 ensures protection against environmental elements, making it suitable for harsh automotive and industrial environments. The connector is designed with a single row of two contacts sized for 6mm² cable, and the male contacts terminate via crimp method for secure electrical performance.
The connector operates reliably in extreme temperature ranges from -40°C to 125°C and includes a straight orientation for streamlined installation. Its unique U key prevents incorrect mating, enhancing operational safety in the field. The connector pairs with a 2-position ePower-Lite plug equipped with HVIL (High Voltage Interlock Loop) to further promote safety during electric vehicle charging and operation.
This product is part of Amphenol’s Better World initiative, supporting renewable energy solutions and sustainable transportation technologies. Its compact footprint and durable performance make it ideal for automotive, industrial, and renewable energy sectors.
Durable RADSOK technology for enhanced conductivity and low thermal rise. Compact panel mount design with waterproof IP67 rating. Flame retarded housing compliant with UL 94 V-0. Temperature rating from -40°C to 125°C. Single row, 2-contact configuration with 6mm² wire size.
Electrical rating of 70A current at 800V operation. U coding for polarisation and mating assurance. Compatible with 2-position ePower-Lite plug with HVIL. Orange-colored housing for easy identification. Meets IEC 60529 for touch proof safety.
For high-quality electrical connections in automotive and renewable energy applications, explore the full range of EV connectors and power Connectors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a maximum current of 70 amperes.
It operates at a maximum voltage of 800 volts.
This model is designed for panel mount installation.
It can operate reliably in temperatures ranging from -40°C to 125°C.
This connector has an IP67 waterproof rating, ensuring protection against dust and water.
It supports a wire size of 6mm².
The housing is made from flame-retardant plastic that meets UL 94 V-0 standards.
This connector features a single row with two contacts.
It includes a U key type for polarization to prevent mis-mating and is designed with HVIL for enhanced safety.
It meets IEC 60529 for touch proof safety and UL 94 V-0 for flammability.
The connector has a straight orientation for easy installation.
The connector uses a crimp termination method for its male contacts.
