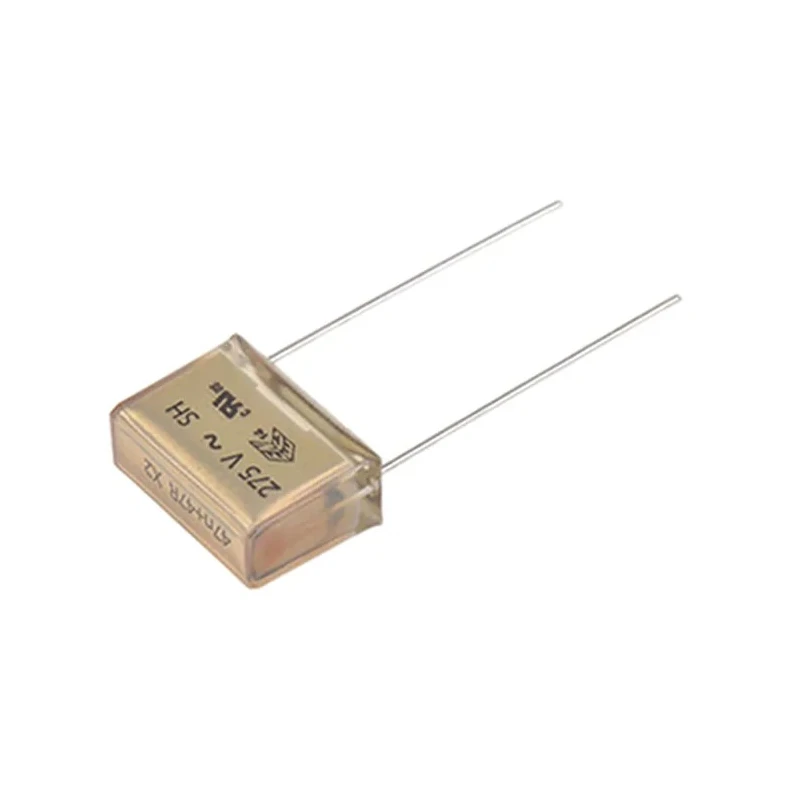

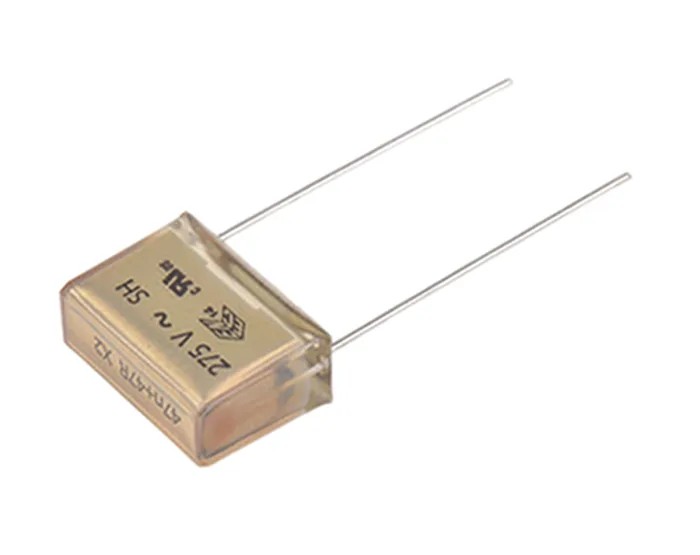

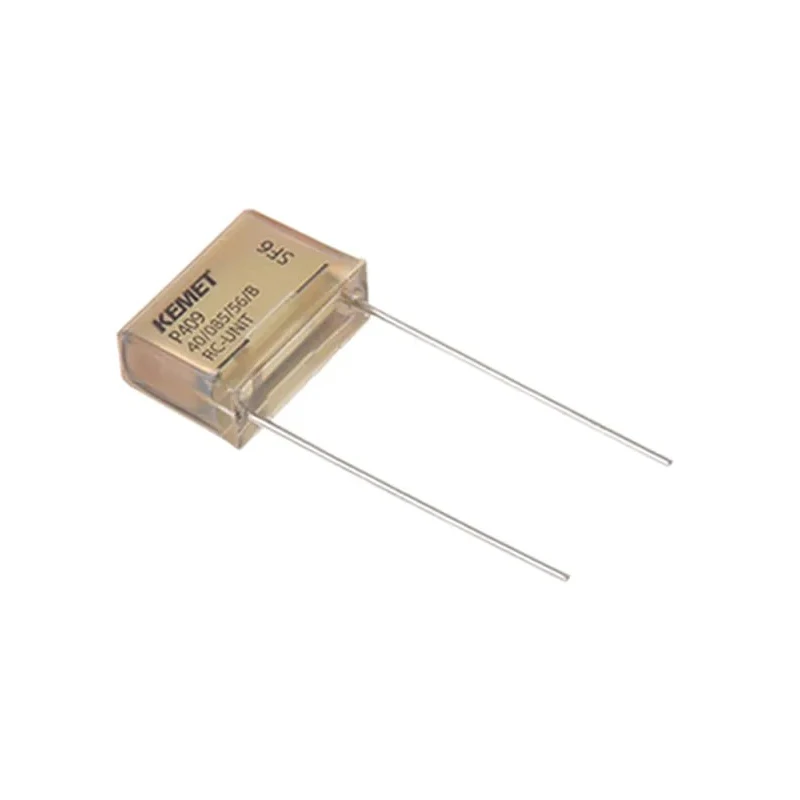

KEMET P409 Paper Capacitor X2 Rated 275V AC 275V DC 100nF Through Hole P409CP104M275AH151

KEMET P409CP104M275AH151 paper capacitor is engineered for reliable suppression and transient protection applications with a rated AC and DC voltage of 275V. This through hole capacitor features a capacitance of 100nF and is constructed from multilayer metallized paper with impregnation, providing excellent stability and self-healing characteristics. Encapsulated in a self-extinguishing material compliant with UL 94 V-0, it ensures enhanced safety in electrical circuits.

It supports a wide operating temperature range from -40°C to +85°C, making it suitable for industrial, commercial, and electrical equipment in various environments. The capacitor’s X2 suppression class rating makes it ideal for worldwide use in contact protection and interference suppression. The electrical design includes a 20.3mm lead pitch and 0.8mm lead diameter for secure mounting on printed circuit boards.

Standards compliance includes UL 60384-14, EN/IEC 60384-14, CAN/CSA-E60384-14-09, and RoHS, confirming its adherence to international safety and environmental requirements. The physical dimensions measure 24mm in length, 16.5mm in height, and 11.3mm in depth, providing a compact form factor for PCB integration.

The capacitor offers high dV/dt capability with resistance values ranging from 22 to 470 ohms and capacitance ranges between 0.047 to 0.47µF, accommodating various circuit needs. Its excellent self-healing properties ensure long operational life even when exposed to frequent voltage spikes.

Rated operating voltage of 275V AC and 275V DC. 100nF capacitance with ±30% tolerance. Multilayer metallized paper construction with self-extinguishing encapsulation. Through hole mount with 20.3mm lead pitch and 0.8mm lead diameter.

Operating temperature range from -40°C to +85°C. X2 suppression class suitable for contact protection and transient suppression. Meets UL 60384-14, EN/IEC 60384-14, CAN/CSA, and RoHS standards. Dimensions: 24mm length, 16.5mm height, 11.3mm depth.

High dV/dt capability and excellent self-healing properties.

This capacitor is widely used in industrial electronics, power supply components, automotive electrical systems, and HVAC equipment. Its robust design and certifications ensure compliance with safety and environmental regulations. Explore the KEMET capacitor range for reliable film capacitor solutions on EnvMart.
