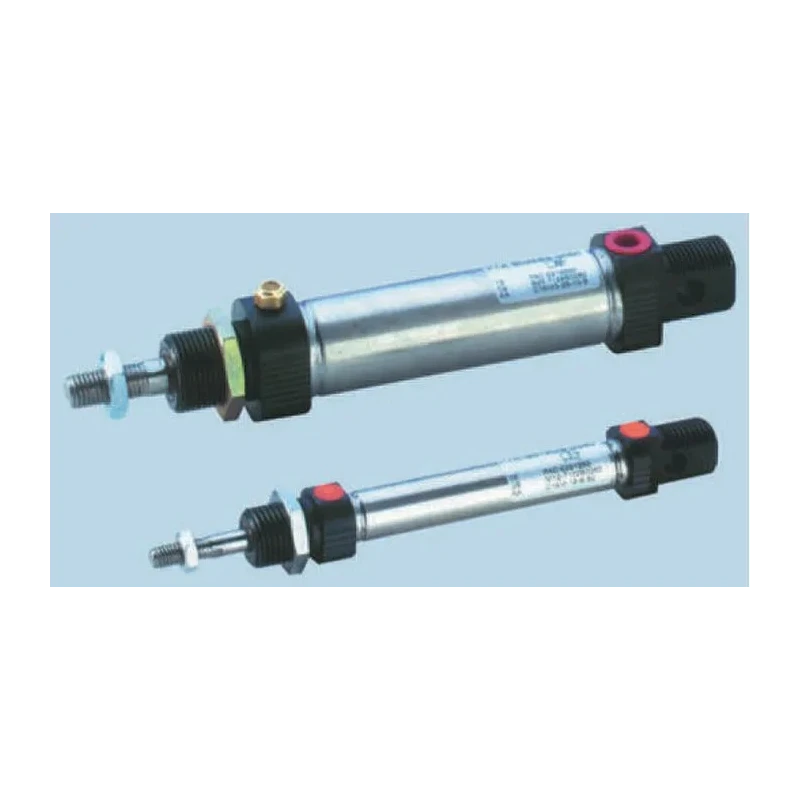

Parker 25 mm Pneumatic Piston Rod Cylinder, P1A Series, Double Acting, Both Ends Tapped Mount, Stainless P1A-S025DS-0025

Free Delivery in India | Lowest Global Shipping Charges

Parker 25 mm Pneumatic Piston Rod Cylinder, P1A Series, Double Acting, Both Ends Tapped Mount, Stainless P1A-S025DS-0025

Name: Parker 25 mm Pneumatic Piston Rod Cylinder, P1A Series, Double Acting, Both Ends Tapped Mount, Stainless P1A-S025DS-0025
Brand: Parker
SKU: 183924
Price: 121.52 USD
Availability: InStock



Category Pneumatic Piston Rod Cylinder Brand Parker Condition New

Specifications

Country of Origin	India
Brand	Parker
Body Material	Stainless Steel
Operating Temperature	-20°C to +80°C
Length	157mm
Model	P1A-S025DS-0025
Operating Pressure	10 bar max
Mount Type	Both Ends Tapped
Series	P1A
Medium	Compressed air, filtered, lubricated or non-lubricated
Maximum Operating Temperature	80°C
Stroke Length	25mm
Rod Type	Double
Action Type	Double Acting
Piston Rod	Stainless steel
Seals	Fluorocarbon/Nitrile rubber
Standards/Approvals	ISO 6432
Cushioning Type	Buffer
Piston Rod Gender	Female
Piston Rod Thread Size	M10
SMC 25 mm Pneumatic Piston Rod Cylinder - CD85 Series, Double Acting ActingBrand	SMC
End covers	Anodised aluminium
Barrel	Stainless steel

Key Features

This cylinder is part of the P1A Series conforming to ISO 6432 standards.
The cylinder features a stainless steel body and piston rod for corrosion resistance.
It has a 25 mm stroke length and an overall cylinder length of 157 mm.
Double acting operation with both ends tapped mount offers flexible installation options.
The piston rod is female threaded with an M10 thread size.
End covers are anodised aluminium enhancing durability and lightweight design.
Maximum operating temperature is 80°C with operating pressure up to 10 bar.
Seals are made from fluorocarbon and nitrile rubber ensuring reliable sealing performance.

Product Description

Parker P1A-S025DS-0025 Pneumatic Piston Rod Cylinder is a robust double acting cylinder from the P1A Series with a 25 mm bore size, stroke length of 25 mm, and overall length of 157 mm. Engineered for reliability and precision, this cylinder is ideal for a variety of industrial pneumatic applications requiring smooth and controlled linear motion.

The cylinder body and piston rod are constructed from high-quality stainless steel, providing strong corrosion resistance and durability in demanding environments. The end covers are anodised aluminium, contributing to the lightweight yet sturdy design of the cylinder. The piston rod features a female M10 threaded connection for secure mounting.

This cylinder conforms to ISO 6432 standards, ensuring compatibility and interchangeability with other pneumatic components in industrial systems. It delivers double acting operation with buffer cushioning that enhances longevity by softening end-of-stroke impacts.

The Pneumatic Piston Rod Cylinder operates efficiently within a maximum temperature range of -20°C to +80°C and can withstand operating pressures up to 10 bar. It is compatible with compressed air mediums that can be filtered and either lubricated or non-lubricated, making it versatile for diverse industrial uses.

This model is widely applicable in automated manufacturing lines, assembly systems, fluid power tools, and material handling equipment. The magnetic piston feature enables position sensing for integration with pneumatic sensors and control systems.

Its compact size and ISO standard design facilitate easy installation and maintenance in constrained spaces. The Parker P1A-S025DS-0025 is engineered to provide consistent performance in laboratory, industrial, HVAC, manufacturing, and general mechanical applications.

Explore more Pneumatic Piston Rod Cylinders and pneumatic actuators at EnvMart to suit various industrial automation requirements.
