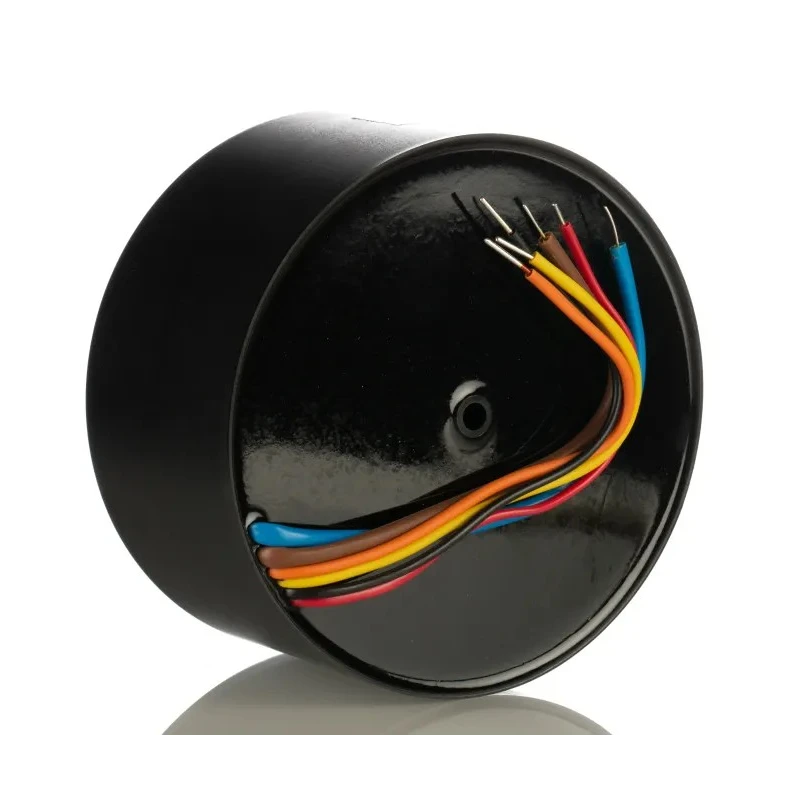

Nuvotem Talema Toroidal Transformer 230 V ac Primary, 2 x 12 V ac Secondary, 2 Outputs, 30 VA Power 0030P1-2-012K

Nuvotem Talema 0030P1-2-012K Toroidal Transformer features a single 230 V ac primary winding and twin secondary windings rated at 2 x 12 V ac with 2 outputs delivering 30 VA power. This encapsulated transformer is designed for industrial, electronic, and power supply applications demanding low noise and high efficiency.

Its compact construction offers a diameter of 81.3 mm and height of 39.1 mm, making it easy to install in tight spaces using the centre hole fixing (fixing bolt not supplied). The construction uses high-quality UL94-V0 nylon 6.6 case material, providing flame retardance and durability, with double insulated primary leads to enhance safety.

The unit operates reliably within a temperature range up to a maximum of 180°C and supports a frequency range from 50 Hz minimum to 60 Hz maximum. Its design ensures extremely low levels of radiated magnetic fields and induced noise (hum), along with very low iron losses.

This model meets rigorous international standards and approvals, including EN60065, UL506, BS415, VDE0550, EN61558, and UL5, ensuring compliance and quality suitable for professional use.

Encapsulated toroidal construction for compactness and efficiency. High quality UL94-V0 case and insulation materials for safety. Dual secondary outputs configurable in series or parallel. Low noise and minimal electromagnetic interference emissions.

Suitable for electronic, power supply, industrial, and laboratory use cases. Environmentally sealed design ensuring long service life. Tested for 100% electrical and flash safety standards.

This transformer fits applications in electronics, power distribution, industrial equipment, laboratory instruments, and commercial power supplies. Browse more Toroidal Transformers in the Electronics & Electricals category on EnvMart for complementary solutions.
