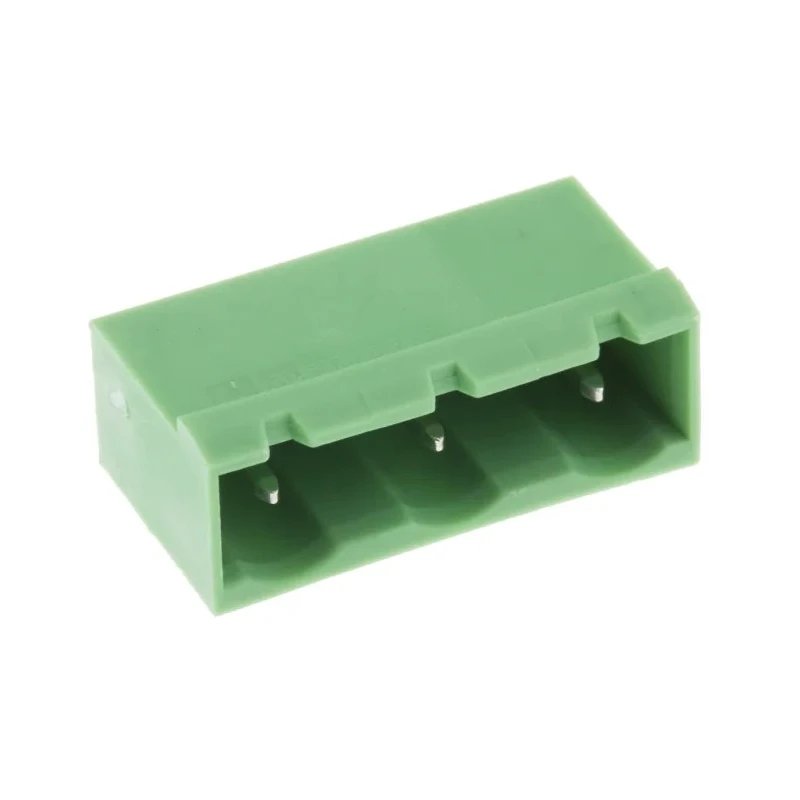

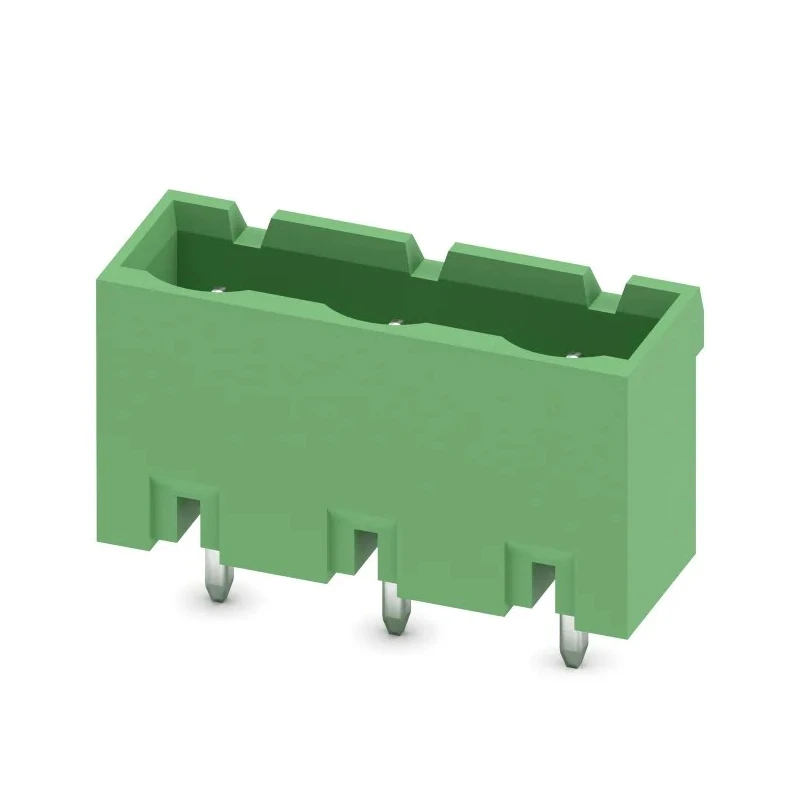

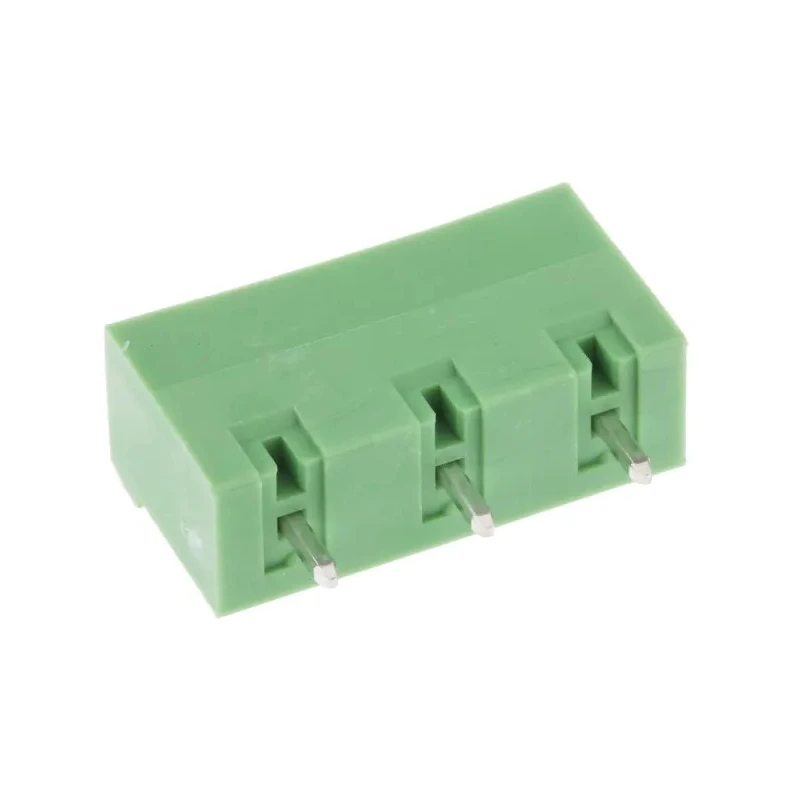

Phoenix Contact GMSTBVA 2.5/ 3-G-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 12A Current 1766783
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 8.6mm |
| Model | 1766783 |
| Depth | 15.9mm |
| Width | 15.24mm |
| Housing Material | Polyamide |
| Series | GMSTBVA 2.5/ 3-G-7.62 |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Standards/Approvals | EU REACH SVHC, CHINA RoHS, EU RoHS, CSA, cULus |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Wire Connection Method | Solder |
| IEC 60512-5-1 | 2002-02 approval shows it can carry its rated current with a minimal rise in temperature |
| IEC 60512-3-1 | 2002-02 certification for effective insulation resistance |
Key Features
- The polyamide housing is robust and resistant to wear and electrical hazards.
- Straight female connector ensures stable soldered wire terminations for secure connections.
- Compact dimensions enable efficient use on crowded printed circuit boards.
- Tin-plated copper-alloy contacts provide excellent conductivity and corrosion resistance.
- Rated for 630V, suitable for medium-duty applications and industrial control systems.
- Meets IEC 60512-5-1 and IEC 60512-3-1 standards for temperature rise and insulation resistance.
- Designed for industrial, medical equipment, and consumer electronics uses.
Product Description
Phoenix Contact 1766783 is a 3-contact Pluggable Terminal Block from the GMSTBVA 2.5/ 3-G-7.62 series, engineered for industrial and electronic applications requiring reliable PCB connections. It features a 7.62 mm pitch and single-row configuration providing efficient space utilization on circuit boards.
The housing is made of durable polyamide material offering wear and impact resistance, coupled with excellent insulation properties to safeguard against electrical hazards. Its female connector is designed for straight orientation and solder wire connection, ensuring secure and permanent installation.
The terminal block supports a maximum current of 12 amperes and withstands voltages up to 630 volts, making it ideal for medium-duty applications across industrial automation, consumer electronics, and medical equipment sectors. The tin-plated copper-alloy contacts ensure high conductivity and corrosion resistance, enhancing signal reliability and longevity.

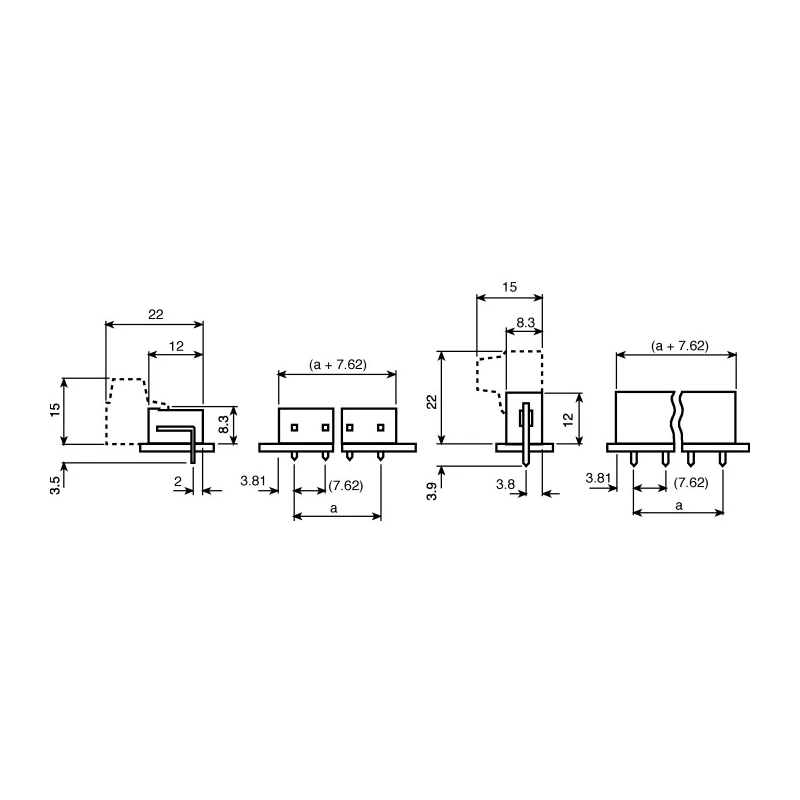

Dimensions of 8.6 mm length, 15.24 mm width, and 15.9 mm depth provide a compact footprint. Compliance with IEC 60512-5-1 and IEC 60512-3-1 standards attests to its ability to maintain rated current with minimal temperature rise and effective insulation resistance.
The polyamide housing provides excellent durability and electrical insulation. Three contact points facilitate versatile circuit connections. The solder wire connection method secures stable terminations. Rated voltage of 630V suits a wide range of industrial applications.
Tin-plated copper-alloy contacts ensure reliable conductivity and corrosion resistance. Compact design fits well in dense PCB layouts. Compliance with relevant IEC standards guarantees safety and performance.
Choose Phoenix Contact 1766783 terminal block for high-quality, safe, and efficient circuit board connectivity. Explore EnvMart for more innovative electronic components and terminal blocks suitable for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 12 amperes, suitable for medium-duty applications.
The terminal block is rated for a maximum voltage of 630 volts, making it suitable for various industrial applications.
The dimensions are 8.6 mm in length, 15.24 mm in width, and 15.9 mm in depth, allowing for compact installation on PCBs.
It utilizes a solder wire connection method, ensuring stable and secure terminations.
The pitch size is 7.62 mm, which helps in efficient space utilization on printed circuit boards.
This model features three contacts, allowing for versatile circuit connections.
The housing is constructed from polyamide, which provides wear resistance and good insulation properties.
It meets several standards including IEC 60512-5-1 and IEC 60512-3-1 for temperature rise and insulation resistance, as well as EU REACH SVHC and RoHS compliance.
The connector orientation is straight, designed for stable soldered wire terminations.
It is designed for use in industrial automation, medical equipment, and consumer electronics, providing reliable PCB connections.
The country of origin for this terminal block is Germany.
The terminal block is colored green, which is typical for many electronic components.
