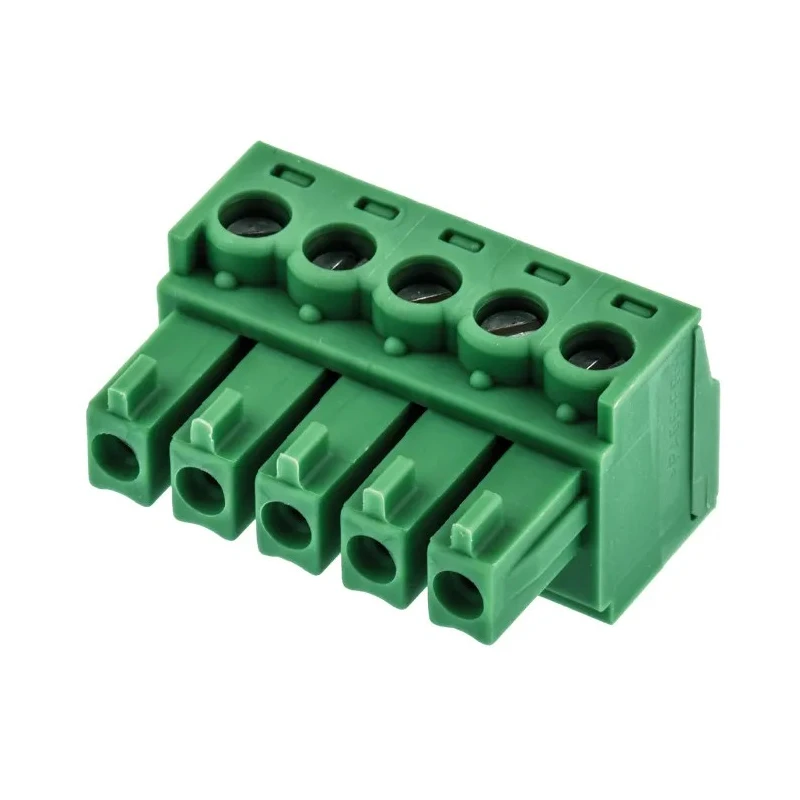

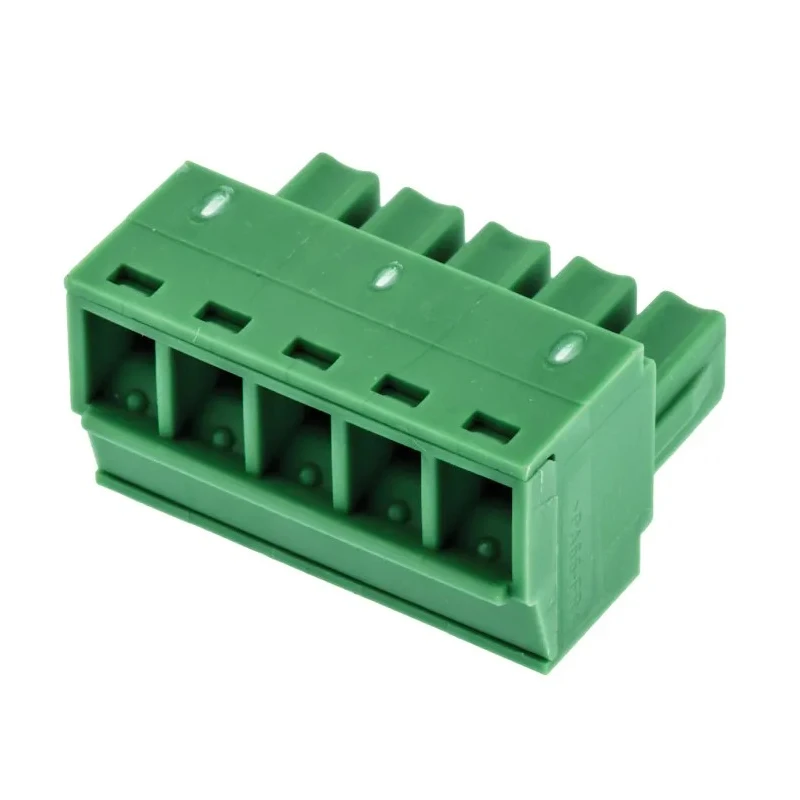

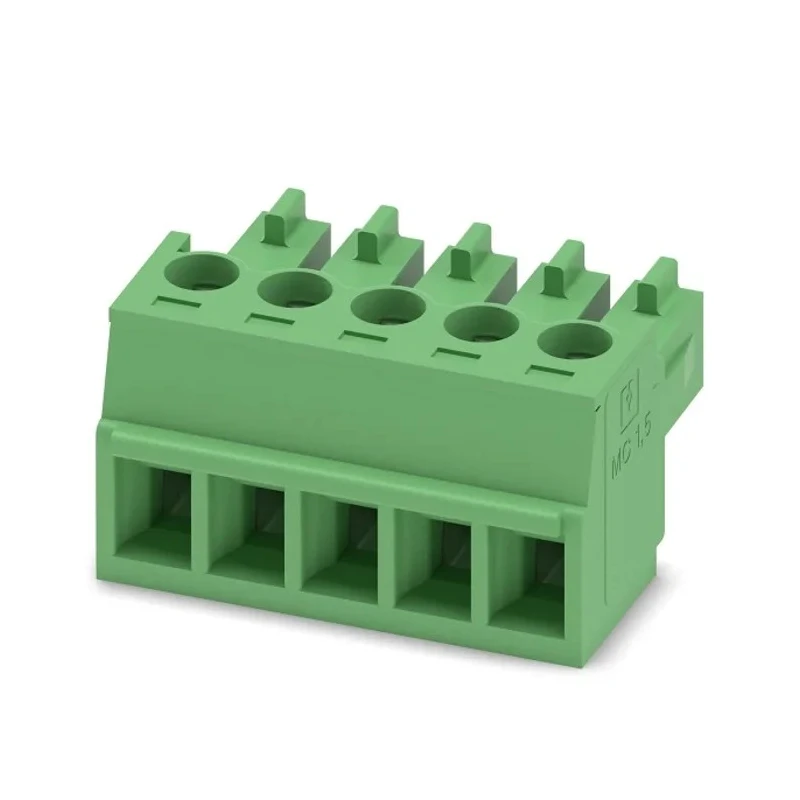

Phoenix Contact MC 1.5/5-ST-3.81 Series Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, Polyamide 1803604
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Horizontal |
| Current | 8A |

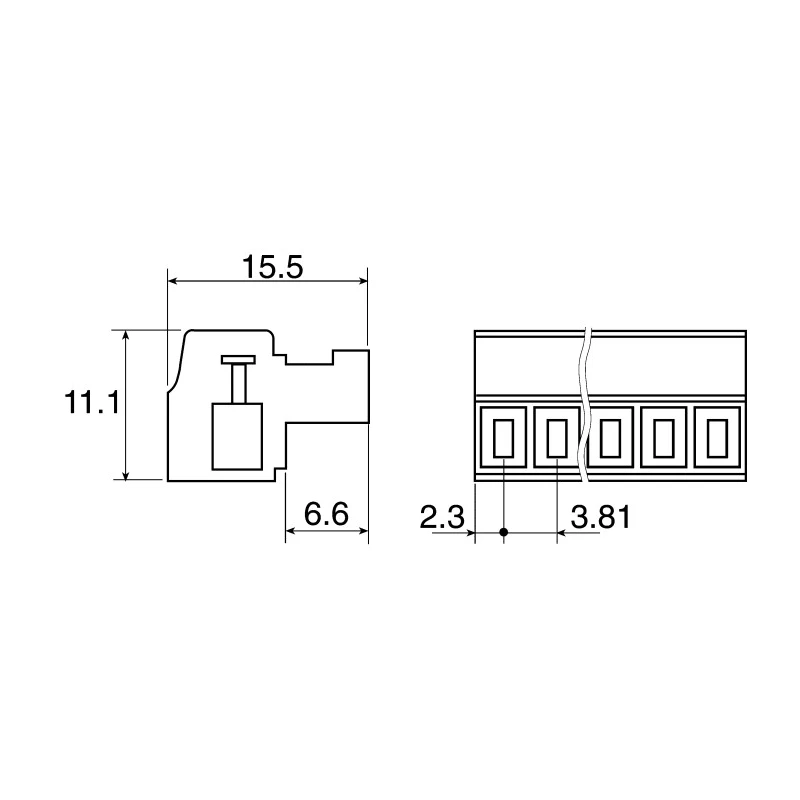

| Length | 25.6mm |
| Model | 1803604 |
| Depth | 15mm |
| Width | 19.84mm |
| Housing Material | Polyamide |
| Series | MC 1.5/5-ST-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 5 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
Key Features
- Designed with a polyamide housing for durability.
- Supports wire sizes from 28AWG to 16AWG with screw connection method.
- Operates at a voltage rating of 160 V and current rating of 8 A.
- Compact dimensions of 25.6mm length, 19.84mm width, and 15mm depth.
- Enables tool-free plug-in connector insertion and removal for easy installation.
- Equipped with an integrated tension sleeve for conductor retention under vibration.
- Suitable for industrial, medical, and aerospace applications.
- Color-coded green for easy identification on circuit boards.
Product Description
Phoenix Contact 1803604 is a high-quality pluggable terminal block with 5 contacts arranged in a single row with a 3.81 mm pitch. The terminal block is designed for efficient and secure electrical connections in demanding environments.
This pluggable terminal block features a robust polyamide housing that offers excellent electrical insulation and mechanical stability. The screw connection system accommodates wire sizes ranging from 28AWG to 16AWG (0.14 mm² to 1.5 mm²), ensuring broad compatibility for various wiring needs.
With a voltage rating of 160 V and a current capacity of 8 A, it supports numerous industrial and commercial applications requiring reliable electrical connections. The compact size (25.6 mm length x 19.84 mm width x 15 mm depth) allows effective space utilization on crowded circuit boards.
The modular two-part design permits plugging and unplugging of mating connectors without tools, simplifying installation, maintenance, and troubleshooting. The integrated tension sleeve secures conductors to prevent accidental disconnections, which is critical in vibration-prone environments.
The terminal block's green color coding facilitates quick identification and integration in complex assemblies. Manufactured in Germany to meet high quality and performance standards, this component is ideal for industrial automation, medical devices, aerospace equipment, and other precision-demanding systems.
Durable polyamide housing with excellent insulation properties. Screw connection suitable for 28AWG to 16AWG wires. Voltage rating of 160 V and current rating of 8 A. Compact dimensions to optimize circuit board space. Tool-free plug-in connection design for easy assembly.
Integrated tension sleeve for conductor security under vibration. Green color for visual identification. Manufactured in Germany ensuring quality and reliability.
Explore more from the Phoenix Contact Pluggable Terminal Block series at EnvMart for efficient electrical connection solutions across various industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this terminal block is 160 V.
It has a current rating of 8 A.
This terminal block supports wire sizes ranging from 28 AWG to 16 AWG (0.14 mm² to 1.5 mm²).
The dimensions are 25.6 mm in length, 19.84 mm in width, and 15 mm in depth.
The housing is made of polyamide, providing excellent electrical insulation and mechanical stability.
The screw connection method allows for secure wiring of compatible wire sizes, ensuring reliable electrical connections.
Yes, it features a modular two-part design that allows for tool-free plug-in connector insertion and removal, simplifying installation.
It is color-coded green for easy identification on circuit boards.
It is suitable for industrial, medical, and aerospace applications due to its robust design and specifications.
This terminal block is manufactured in Germany.
The pitch of the contacts is 3.81 mm.
It has 5 contacts arranged in a single row.
