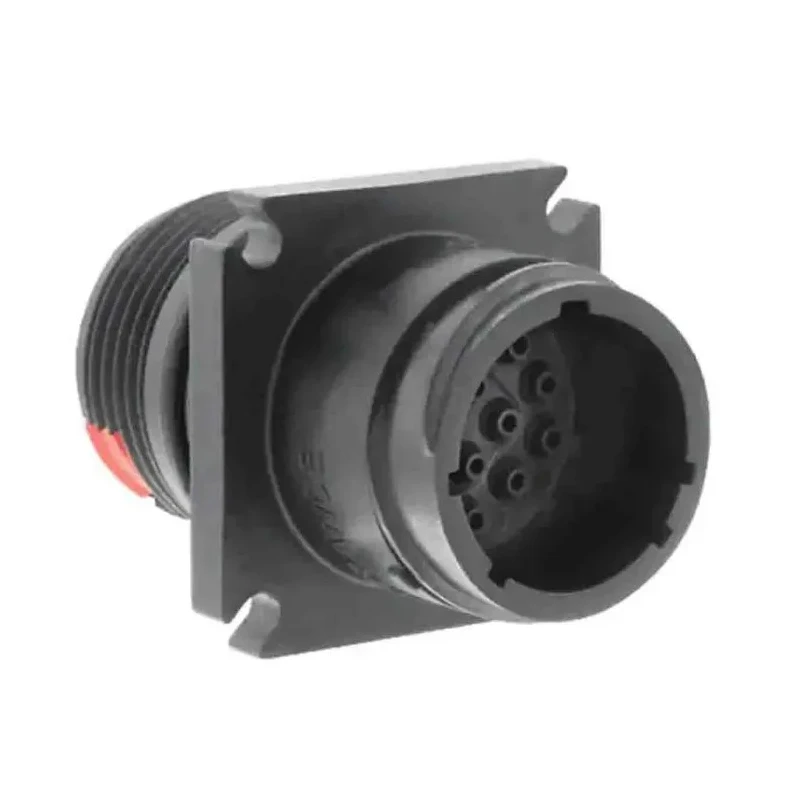

Souriau Sunbank by Eaton Circular Connector 14 Contacts Flange Standard Plug Male IP68 Clipper Series CL1M2201
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 7A |
| Model | CL1M2201 |
| IP Rating | IP68 |
| Mount Type | Flange |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Clipper |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shell Size | 2 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Designed with a thermoplastic housing for robust industrial use.
- Features 14 gold over nickel plated copper alloy contacts ensuring reliable connectivity.
- Current rating of 7A per contact supports heavy-duty applications.
- Operates safely between -40°C and 125°C for versatile temperature conditions.
- Threaded mating type with a straight orientation for ease of installation.
- Scoop proof contact design prevents damage during blind mating.
- Retention plate system allows contact insertion and extraction without tooling.
- Shell size 2 with electrical PG thread adaptor for quick bayonet coupling.
Product Description
Souriau Sunbank by Eaton CL1M2201 circular connector is an industrial-grade flange mounted connector with 14 male contacts designed to provide secure and reliable electrical connections. Featuring a thermoplastic housing and gold plated copper alloy contacts, this connector supports a current rating of 7A per contact and operates across a wide temperature range from -40°C to 125°C, making it suitable for harsh industrial environments.
The CL1M2201 model incorporates a retention plate system that allows insertion and extraction of contacts without requiring specialized tooling, enhancing ease of maintenance. Its threaded mating type coupled with a straight orientation and a shell size of 2 ensures compatibility within the Clipper series family.
Rated to IP68, this plug connector offers superior protection against dust ingress and water immersion, ideal for factory automation, machine tools, and test and measurement instrumentation applications. Its scoop proof design ensures contacts remain undamaged during blind mating, increasing connector longevity.
Thermoplastic housing ensures durability under industrial conditions. Gold over nickel plated copper alloy contacts for reliable conductivity. 7A current rating per contact suitable for various power needs. Operating temperature from -40°C to 125°C for versatile environment use.
Threaded coupling mechanism with audible safety latch for secure connections. Retention plate system simplifies contact handling without tools. IP68 rating guarantees protection against dust and water. Scoop proof contacts prevent contact damage during mating.
Shell size 2 with PG thread for quick bayonet couplings. High vibration resistance increasing system reliability.
This industrial circular connector is manufactured in France to stringent quality standards. It is well-suited for use in industrial automation, machines, and instrumentation where rugged and reliable connections are critical. Browse more connectors in the Industrial Circular Connectors category on EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this connector is 7A per contact, suitable for heavy-duty applications.
It operates safely between -40°C and 125°C, making it versatile for various industrial environments.
The IP68 rating ensures superior protection against dust ingress and water immersion, making it suitable for harsh conditions.
This connector features 14 male contacts designed for secure electrical connections.
It has a thermoplastic housing and gold over nickel plated copper alloy contacts for reliable conductivity.
It utilizes a threaded mating type with a straight orientation for ease of installation.
The shell size of this connector is 2, suitable for standard applications within the Clipper series.
The retention plate system allows for contact insertion and extraction without requiring specialized tooling, enhancing maintenance ease.
The voltage rating for the Souriau Sunbank CL1M2201 connector is 1500V.
This model uses crimp termination, which is common for secure electrical connections.
It is manufactured in France to stringent quality standards.
It is well-suited for industrial automation, machine tools, and test and measurement instrumentation applications.
