Souriau Sunbank by Eaton Circular Connector 9 Contacts Flange Standard Plug Male IP68 Clipper Series CL1M1201

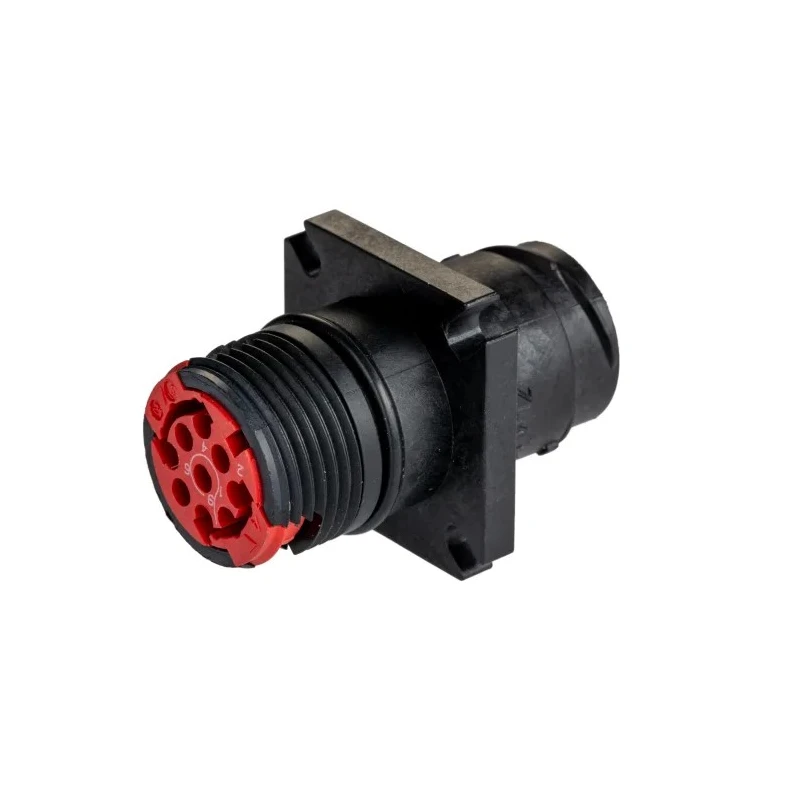

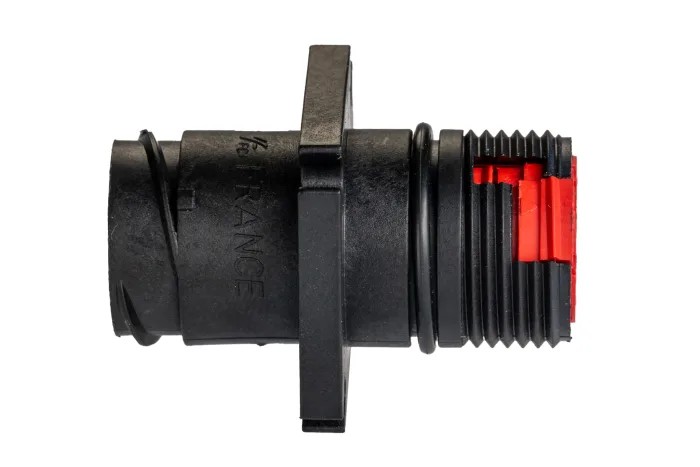

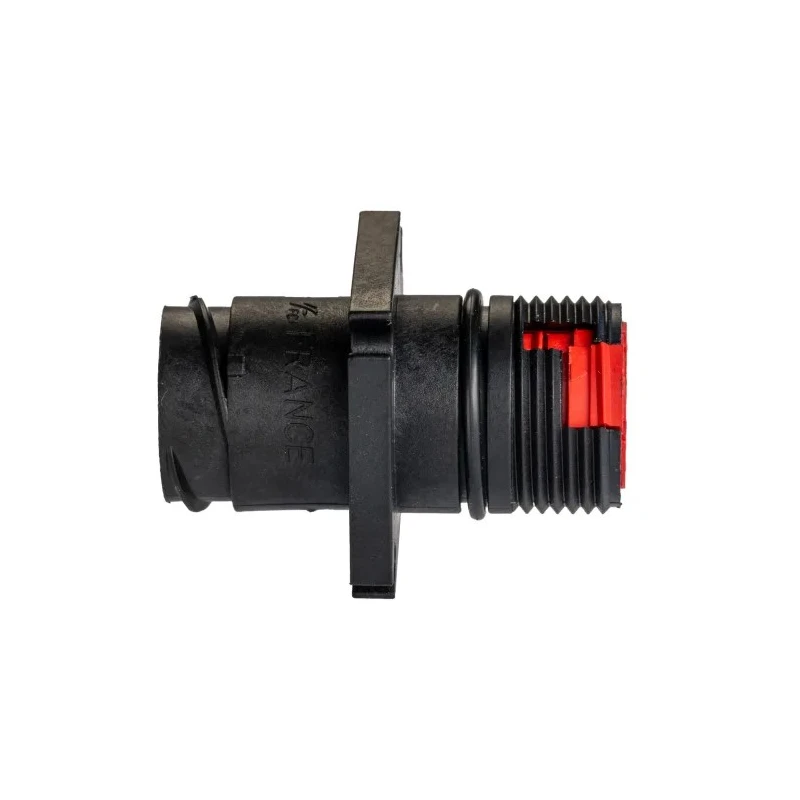

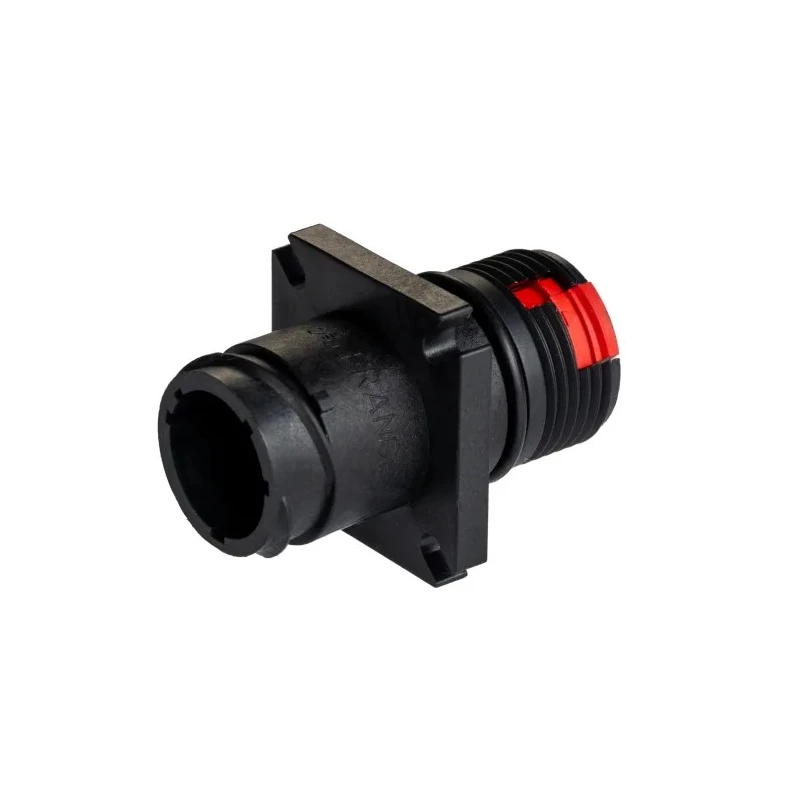

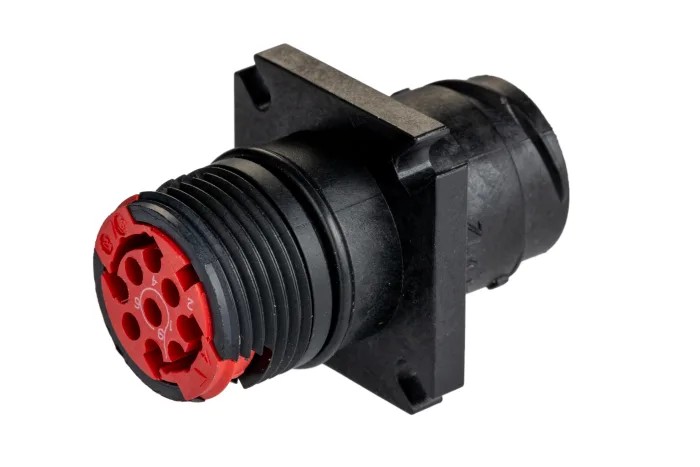

Souriau Sunbank by Eaton CL1M1201 is a circular connector designed for industrial electronics and power applications. It features 9 contacts in a flange mount arrangement ensuring compatibility with standard panel installations. The connector plugs are male with a straight orientation and use threaded mating for a secure and reliable connection system.

The connector supports a rated voltage of 1500V and a current capacity of 7A, making it suitable for a variety of industrial power and control uses. The housing is thermoplastic, providing robustness while the contacts are composed of copper alloy plated with gold over nickel to enhance conductivity and resist corrosion.

Its operating temperature range spans from -40°C to 125°C, ensuring stable operation in demanding environmental conditions. IP68 sealing protection guarantees water and dust resistance, reflecting its robust design under the Clipper series.

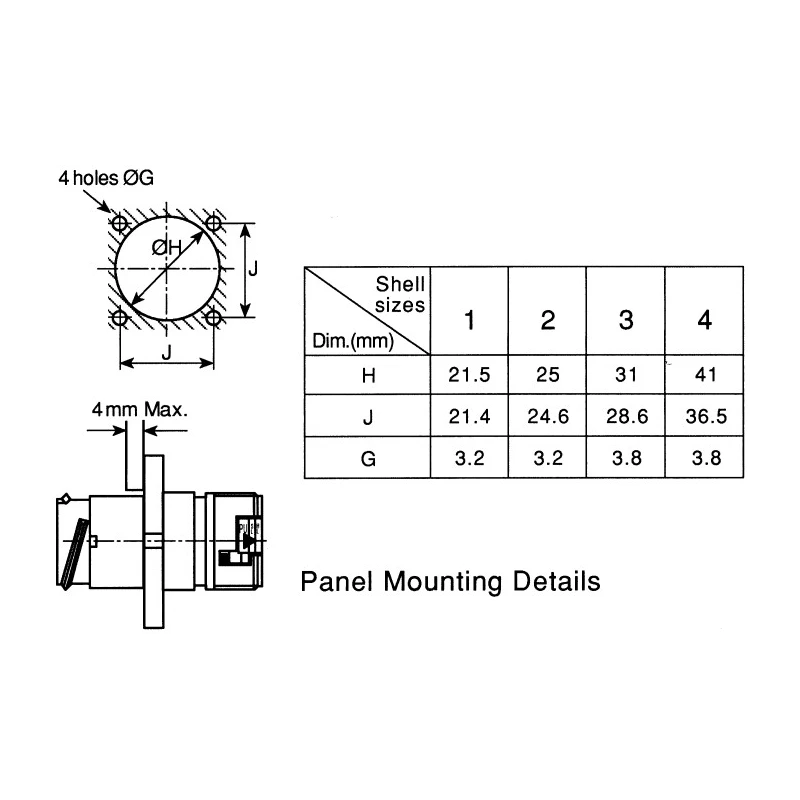

The termination is crimp type, designed for efficient cable attachment. Panel mount dimensions allow interchangeability with MIL-C-5015 connector sizes and support panels up to 4mm thick. The rear insert contacts are held with a shell locking retention plate, enabling easy insertion and extraction without special tooling.

Use cases include industrial machinery, power equipment, outdoor electronics, and harsh environment connectors where durability, reliability, and ease of maintenance are critical. Suitable for applications in manufacturing, industrial automation, transportation, and heavy equipment.

This connector features a standard size flange mount suitable for panel installation. Rated for 1500 volts and 7 amp current capacity for reliable power transmission. Male plug design with straight orientation and threaded mating type for secure connection.

Made with thermoplastic housing and copper alloy contacts plated with gold over nickel for durability. Operating temperature range from -40°C to 125°C to suit harsh environments. Provides IP68 sealing as part of the Clipper series for water and dust resistance.

Uses crimp termination type suitable for easy installation. Panel mount compatible with MIL-C-5015 sizes and supports a maximum 4mm panel thickness. Contacts are rear insert type and removable with shell locking retention plate system.
