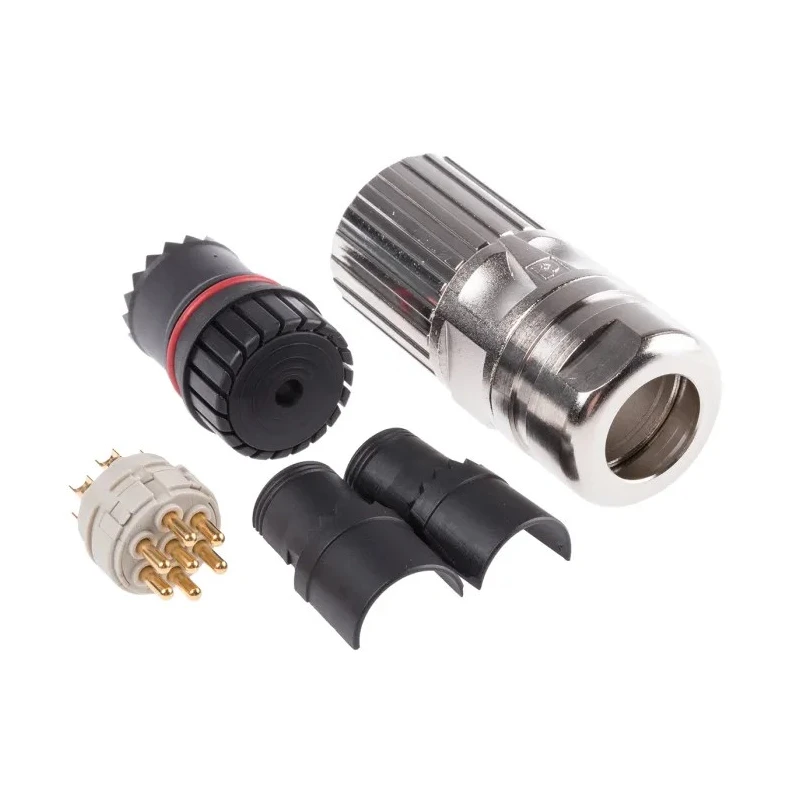

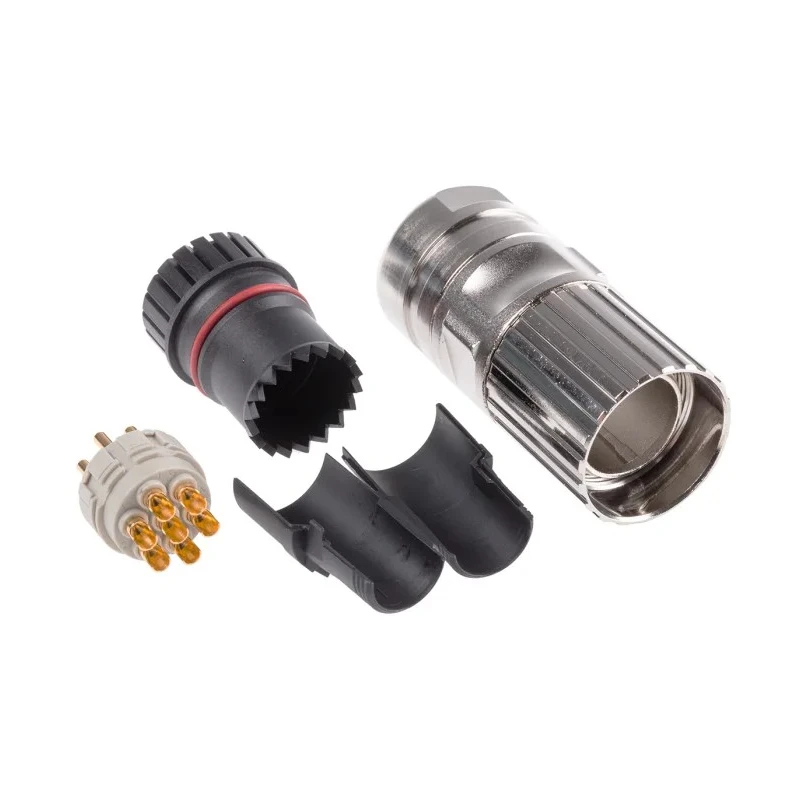

Phoenix Contact Industrial Circular Connector 7 Contacts Cable M23 Connector Socket Male IP67 CA-7P Series 1619771
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300.0V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 20A |
| Model | 1619771 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Copper Zinc Alloy, Die Cast Zinc |
| Contact Material | Copper |
| Series | CA-7P |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shell Size | M23 |
| Mating Type | N Coded |
| Connector Size | M23 |
| Plug/Socket | Socket |
| Coding | N |
| Accepts cable diameters | 3mm up to 14.5mm |
Key Features
- Designed for industrial automation, actuators, sensors, and Ethernet applications.
- High protection rating IP67 ensures resistance to dust and water ingress.
- Gold over nickel plated copper contacts provide excellent conductivity and corrosion resistance.
- Straight orientation with screw locking nut for secure mating and connection reliability.
- Supports cable diameters from 3 mm up to 14.5 mm for versatile application.
- Termination via solder type ensuring firm and stable electrical contact.
- Built with die-cast zinc housing for durability and mechanical strength.
- Operates reliably from -40°C up to 125°C for harsh environments.
Product Description
Phoenix Contact 1619771 Industrial Circular Connector is a durable and highly reliable M23 cable mount socket designed for industrial applications requiring 7 contacts. It is engineered for use in automation, actuators, sensors, industrial Ethernet, and other demanding environments.
This connector features a male contact configuration in a straight orientation, fitted with a screw locking mechanism to ensure stable and secure connections. The IP67 ingress protection rating secures it against dust and water penetration, making it suitable for field attachable applications or permanent installations.
The housing is constructed from die-cast zinc alloy with copper zinc alloy contacts plated in gold over nickel, providing excellent conductivity, mechanical robustness, and corrosion resistance. Its termination is solder type, ensuring a reliable connection to cable conductors.
Designed to accept cable diameters ranging from 3 mm to 14.5 mm, it supports current ratings up to 20 amperes and voltage levels up to 300 volts. The connector operates effectively within a temperature range of -40°C to 125°C, maintaining performance in harsh and varying industrial environments.
The N-coding and M23 shell size standard make this connector compatible with a wide range of industrial circular connector systems. Designed for industrial automation, actuators, sensors, and Ethernet applications. High protection rating IP67 ensures resistance to dust and water ingress.
Gold over nickel plated copper contacts provide excellent conductivity and corrosion resistance. Straight orientation with screw locking nut for secure mating and connection reliability. Supports cable diameters from 3 mm up to 14.5 mm for versatile application.
Termination via solder type ensuring firm and stable electrical contact. Built with die-cast zinc housing for durability and mechanical strength. Operates reliably from -40°C up to 125°C for harsh environments. Contact rating up to 20A and voltage rating up to 300V.
This product is manufactured in Germany and delivered new, suitable for industrial, manufacturing, and electronic power connector assembly use cases. Explore more in our Industrial Circular Connectors category for compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 20 amperes.
It can handle voltage levels up to 300 volts.
The connector has an IP67 rating, ensuring resistance to dust and water ingress.
This connector operates reliably within a temperature range of -40°C to 125°C.
It uses a solder type termination, ensuring a firm and stable electrical contact.
The housing is made of die-cast zinc, and the contacts are copper with gold over nickel plating.
It accepts cable diameters ranging from 3 mm to 14.5 mm.
This connector features a male contact configuration with 7 contacts.
The shell size of this connector is M23.
Yes, the IP67 rating makes it suitable for outdoor use as it protects against dust and water ingress.
It is designed for industrial automation, actuators, sensors, and Ethernet applications.
This connector is manufactured in Germany.
