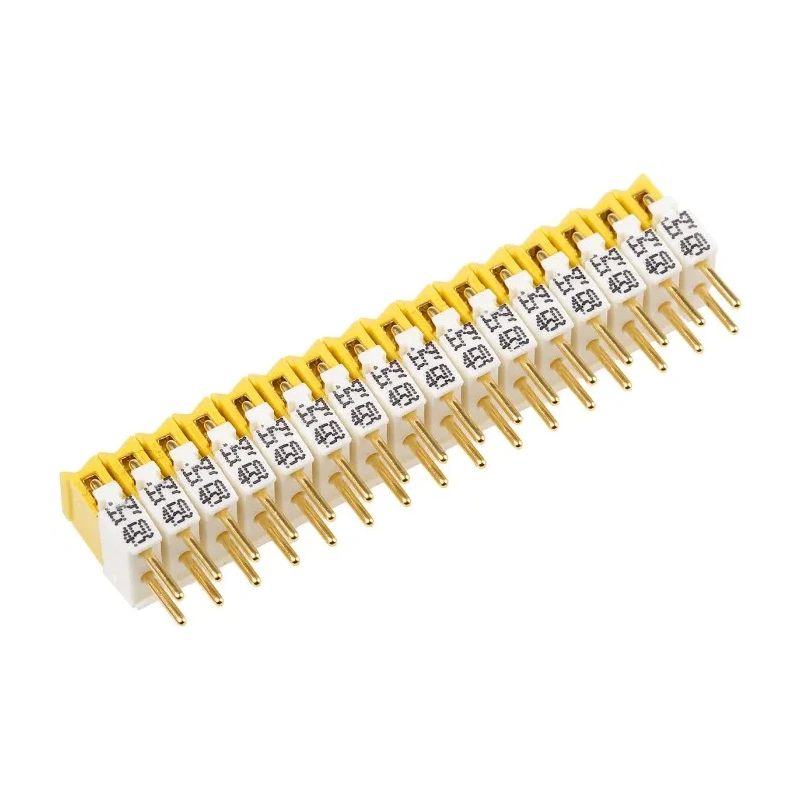

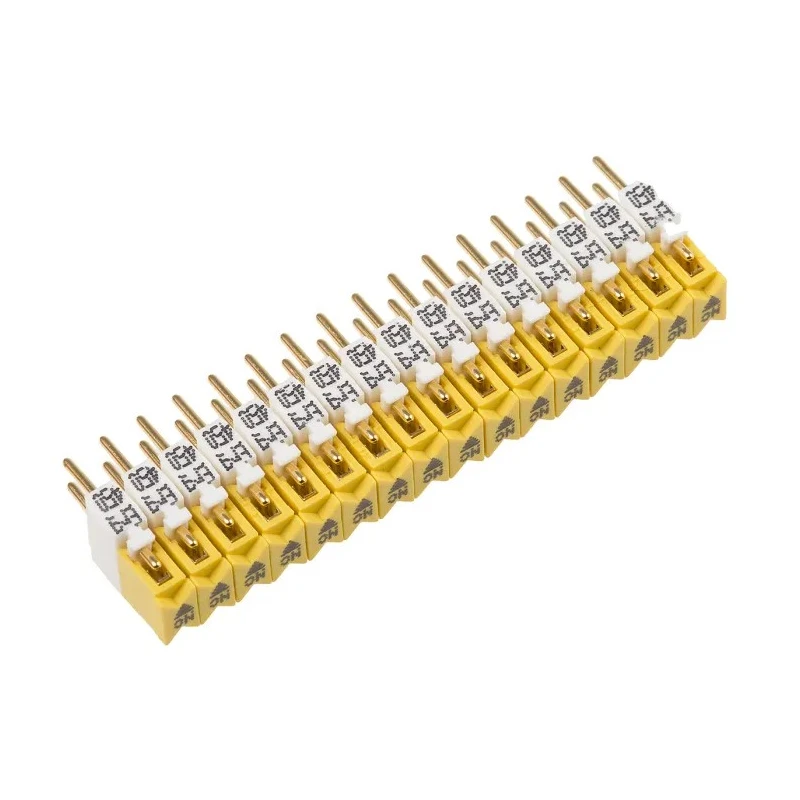

ERG JS Jumper Switch Straight Male Yellow 16 Way 1 Row 0.1 in Pitch JSA4-16-GO

ERG JSA4-16-GO is a precision-engineered jumper switch featuring a straight male connector and yellow polyamide housing. It provides a reliable means for ON/OFF switching of PCB track signals using a 0.1 inch pitch (2.54 mm), making it ideal for various electronic circuit board applications.

The switch comprises 16 contacts arranged in a single row, supporting a maximum voltage of 100V and a current rating of 5A. The contacts are made from copper zinc alloy plated with hard gold, delivering low contact resistance of 15mΩ and ensuring excellent electrical conductivity and corrosion resistance.

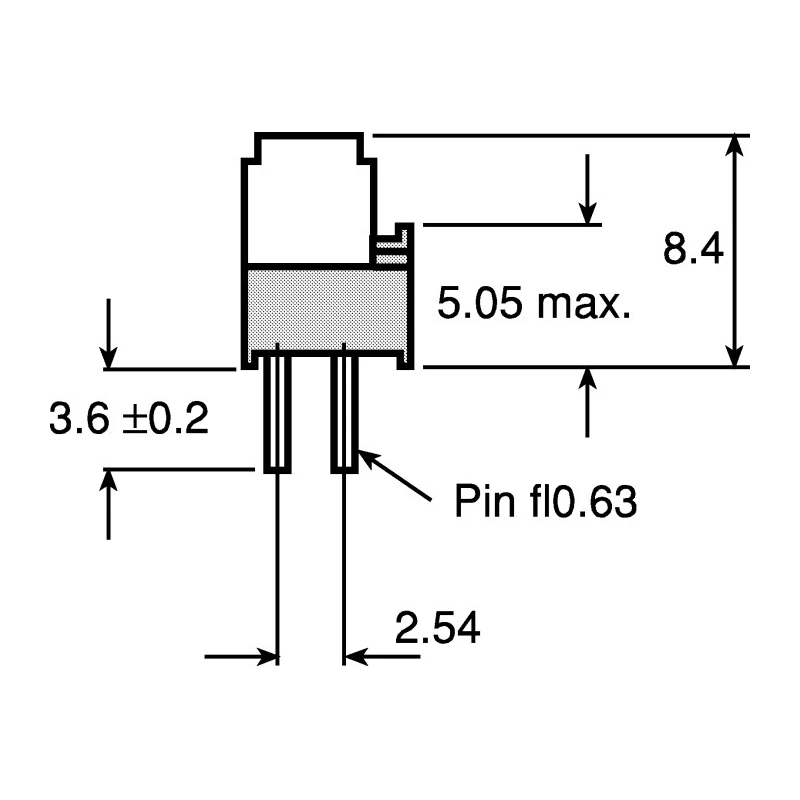

With compact dimensions of 40.64 mm in length, 8.4 mm in width, and 6.1 mm in depth, it is designed for efficient space utilization on PCBs. Its innovative four-point contact design with a hard gold-plated wiper guarantees a positive tactile click and secure switch engagement.

This jumper switch is suitable for both hand and flow soldering processes, minimizing solder wicking, and enhancing assembly reliability. It features positive location locking facilitated by a screwdriver, preventing undesired disconnections.

Manufactured to high-quality standards in Taiwan, Province Of China, this product eliminates the need for traditional jumper links and parking pins on PCBs, providing a modern and versatile solution for circuit signal management.

Offers a straight male connector configuration with 16 contacts in a single row. Constructed with a yellow polyamide housing and gold-plated contacts for durability. Supports up to 100V voltage and 5A current ensuring stable electrical connections.

Features a 2.54mm (0.1 inch) pitch suitable for a wide range of PCB applications. Compact dimensions: length 40.64 mm, width 8.4 mm, depth 6.1 mm for space-efficient circuit designs. Copper zinc alloy contact material provides excellent conductivity and corrosion resistance.

Hard gold plated wipers with 4 point contact design for positive tactile switching feel. Can be used with hand or flow soldered PCBs with minimal solder wicking. Includes positive location locking with screwdriver for secure placement.

Manufactured in Taiwan, Province Of China ensuring high-quality standards.

ERG jumper switches cater to industrial electronics, manufacturing, laboratory equipment, and commercial PCB design applications needing reliable circuit switching solutions. Explore similar high-quality jumper switches and connectors on EnvMart for comprehensive electronics component sourcing.
