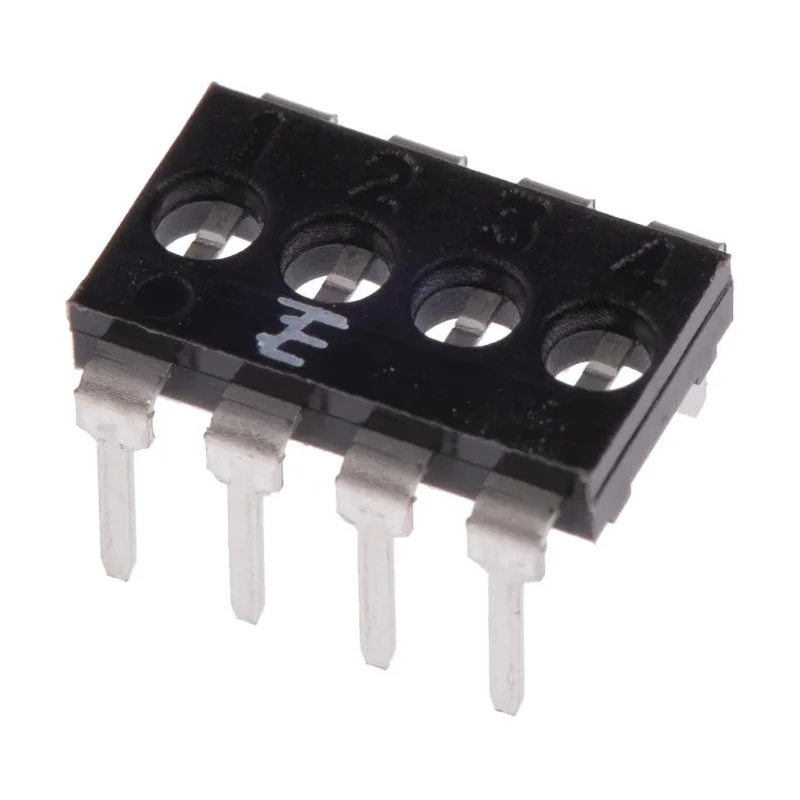

TE Connectivity AMPMODU Shunt Straight Male Black DIP Switch 8 Way 4 Row 2.54mm Pitch 1825190-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 5.08mm |
| Depth | 10.16mm |
| Width | 2mm |
| Housing Material | Polyester |
| Contact Material | Copper Alloy |
| Series | AMPMODU |
| Sub Type | DIP Switch |
| Number of Rows | 4 |
| Positions | 4, 8 & 12 available |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 15mΩ |
| PCB Mount Style | Through Hole |
Key Features
- The switch features a black polyester housing with brass contacts.
- It supports a current rating of 3A and voltage rating of 250V.
- The contact material is copper alloy plated with tin over nickel for durability.
- Pitch between contacts is standardized at 2.54 mm compatible with AMPMODU Series.
- The switch has a maximum contact resistance of 15 milliohms ensuring reliable electrical connection.
- Orientation is straight with a compact size of 5.08 mm length and 10.16 mm depth.
- Positions available include 4, 8, and 12 for varied switching configurations.
- Designed primarily for through hole PCB mounting providing stable mechanical and electrical connections.
Product Description
TE Connectivity 1825190-3 AMPMODU Shunt Straight Male Black DIP Switch is an industrial-grade electronic component designed for efficiently configuring electrical circuits on printed circuit boards (PCBs). Featuring an 8 way, 4 row DIP switch configuration with 2.54 mm pitch, it supports a current of 3A and voltage up to 250V, suitable for various electronic applications across industries.
The shunt uses a durable black polyester housing combined with copper alloy contacts plated with tin over nickel to ensure long-term reliability and low contact resistance of 15 milliohms. Its straight orientation and compact dimensions (5.08 mm length, 10.16 mm depth, 2 mm width) enable easy integration into PCB designs requiring reliable jumpers or shunts.
This AMPMODU series DIP switch is through-hole mounted on PCBs, offering versatility with multiple contact positions available (4, 8 & 12) for tailored electrical configurations. The 2.54 mm pitch meets industry standards, guaranteeing compatibility with other AMPMODU connector systems.
Common applications for this shunt include electronic circuit configuration, signal routing, and jumper settings in industrial automation, control systems, telecommunications, and instrumentation. It is widely used in manufacturing settings for prototyping and production due to easy hand-tool modification for opening or closing circuits.
The switch is composed of a high-quality polyester housing providing mechanical protection. Copper alloy contact material plated with tin over nickel ensures excellent conductivity and corrosion resistance. Its maximum contact resistance of 15 milliohms facilitates stable signal transmission.
8 contacts arranged in 4 rows support complex circuit configurations. Standard 2.54 mm pitch suits various board layouts and connector systems. Through-hole PCB mount style ensures strong physical connection and electrical integrity.
TE Connectivity's AMPMODU shunt series are designed for diverse industrial, electronic manufacturing, and laboratory applications requiring robust, modular connection solutions. This component enhances circuit design flexibility and operational reliability.
Explore EnvMart to find more related TE Connectivity electronic components, jumpers, and PCB connectors for your industrial and commercial needs.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A and a voltage rating of 250V.
The pitch between contacts is standardized at 2.54 mm, compatible with the AMPMODU Series.
This model offers multiple positions including 4, 8, and 12 for varied switching configurations.
The shunt has a length of 5.08 mm, depth of 10.16 mm, and width of 2 mm.
The maximum contact resistance is 15 milliohms, ensuring a reliable electrical connection.
The housing is made of black polyester, and the contacts are copper alloy plated with tin over nickel.
It is designed for through-hole PCB mounting, providing stable mechanical and electrical connections.
The orientation of this model is straight, allowing for easy integration into PCB designs.
Common applications include electronic circuit configuration, signal routing, and jumper settings in industrial automation and control systems.
This model features 8 contacts arranged in 4 rows.
The country of origin for this component is India.
This shunt belongs to the AMPMODU series, designed for modular connection solutions in various applications.
