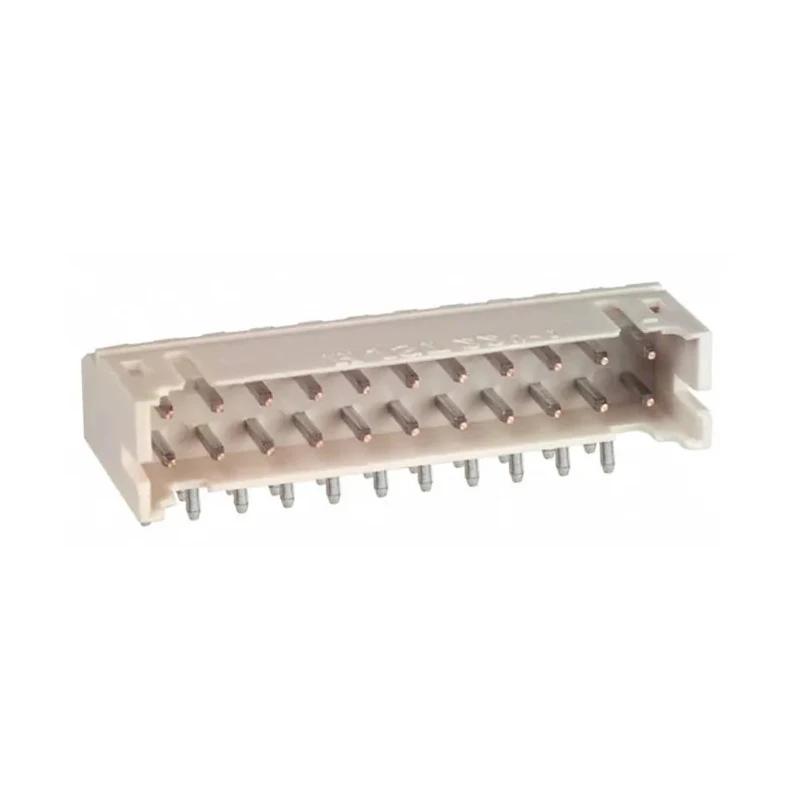

JST PHD Series Right Angle Through Hole Shrouded PCB Header 22 Contacts 2 mm Pitch 2 Row S22B-PHDSS (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PHD Series Right Angle Through Hole Shrouded PCB Header 22 Contacts 2 mm Pitch 2 Row S22B-PHDSS (LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S22B-PHDSS (LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PHD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	22
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	2.9mm

Key Features

Features a 2 mm pitch and double row contact layout for compact PCB integration.
Shrouded construction prevents incorrect mating and contamination.
Constructed with polyamide housing and copper alloy contacts plated with tin.
Rated for 3A current and 250V voltage for reliable electronic connection.
Right angle orientation suitable for high-density PCB layouts with space constraints.
Through hole mount type provides mechanical stability on PCBs.
Operating temperature range from -25°C to 85°C for various environments.
Contact mating pin length of 2.9 mm ensures reliable electrical contact.

Product Description

JST S22B-PHDSS (LF)(SN) is a right angle through hole, shrouded PCB header connector featuring 22 male contacts arranged in 2 rows with a 2 mm pitch. Designed for wire-to-board applications, this component combines durable polyamide housing with copper alloy contacts plated with tin for optimal conductivity and corrosion resistance. This connector supports a current rating of 3A and voltage rating of 250V, making it suitable for various electronic assemblies requiring secure and compact connections.

The right angle orientation of this connector reduces the PCB footprint, enabling high-density mounting in space-constrained environments. The shrouded design effectively prevents incorrect mating and shields contacts from flux and contaminant intrusion during soldering, enhancing connection reliability.

With a temperature operating range of -25°C to 85°C, the JST PHD Series header is suitable for industrial, manufacturing, instrumentation, and electronic device applications. The through hole mounting ensures mechanical stability, while the 2.9 mm mating pin length facilitates consistent electrical contact. The solder termination allows straightforward PCB assembly and durability over repeated use.

This product conforms to JST's stringent manufacturing standards and is produced in Malaysia. It is ideal for intricate electronic components interconnection where density, reliability, and protection against contamination are critical factors.

Features a 2 mm pitch and double row contact layout for compact PCB integration. Shrouded construction prevents incorrect mating and contamination. Constructed with polyamide housing and copper alloy contacts plated with tin.

Rated for 3A current and 250V voltage for reliable electronic connection. Right angle orientation suitable for high-density PCB layouts with space constraints. Through hole mount type provides mechanical stability on PCBs.

Operating temperature range from -25°C to 85°C for various environments. Contact mating pin length of 2.9 mm ensures reliable electrical contact. Male contact gender with solder termination type for easy PCB assembly. Manufactured in Malaysia ensuring quality standards.
