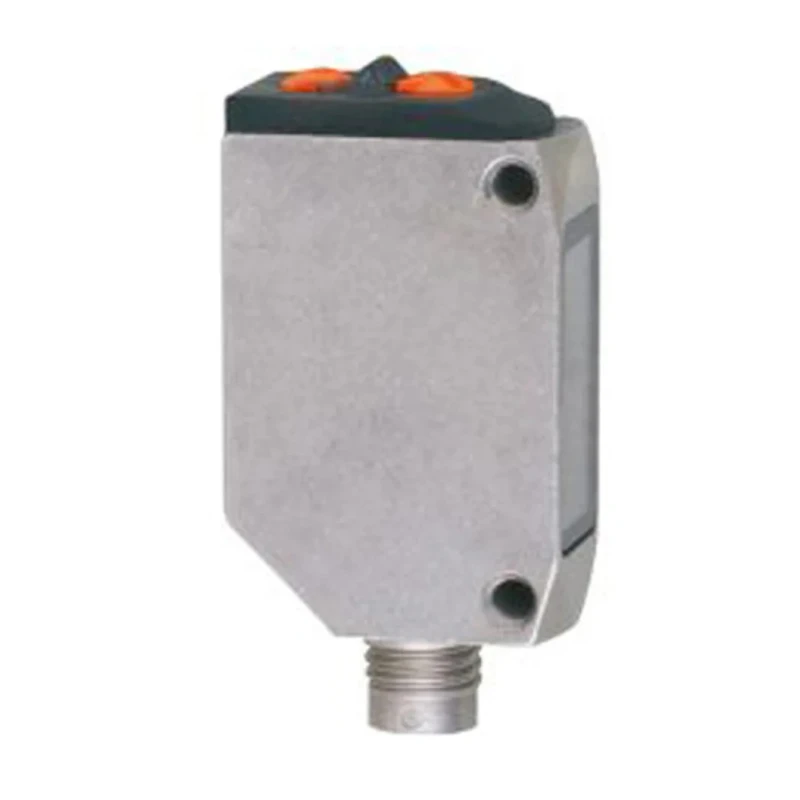

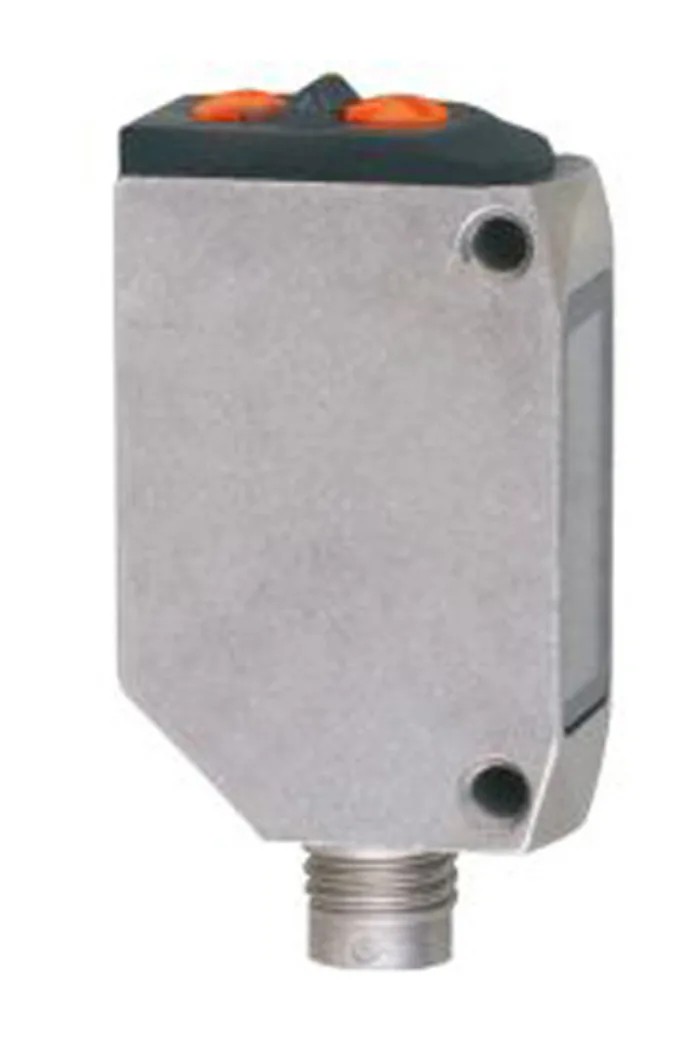

ifm electronic Diffuse Photoelectric Sensor Block Style, Detection Range 2 mm to 200 mm, PNP NO/NC Output O6H309

ifm electronic O6H309 diffuse photoelectric sensor in block style presents a highly reliable solution for precise and non-contact position detection of objects within a detection range from 2 mm up to 200 mm. The sensor is designed to detect various object materials including glass, making it versatile across industrial and automation environments.

This sensor features a rugged stainless steel housing that provides excellent mechanical robustness and resistance to harsh environmental conditions. Its IP65, IP67, IP68, and IP69K ingress protection ratings certify it against dust ingress and exposure to water jets, making it suitable for both indoor and outdoor installations.

The sensor output is PNP NO/NC, providing flexible switching options for controlling automation processes. The sensor includes an IO-Link interface and uses an LED light source for stable operation and easy integration within modern industrial control systems.

Operating temperature ranges from -25°C to 80°C, ensuring functionality in extreme ambient conditions commonly found in manufacturing, packaging, and material handling applications. Designed to deliver a maximum DC voltage of 30 V and withstand a current of up to 22 mA, this sensor assures safe and efficient performance.

Strict compliance with international standards such as CE, cULus, EAC, and EN 60947-5-2 further guarantees the sensor’s quality and regulatory adherence. The O6H series is engineered for diffuse reflection detection with background suppression capabilities, delivering precise object position identification.

Built with a robust stainless steel housing for durability and corrosion resistance. Features a cable mount type for easy installation and connection. Operates within a temperature range of -25°C to 80°C ensuring reliable performance.

IP65, IP67, IP68, and IP69K IP ratings provide excellent protection against dust and water. Utilizes LED light source compatible with IO-Link interface for seamless communication. Maximum DC voltage rating of 30 V DC and max current of 22 mA supports a wide range of applications.

Designed for detecting materials including glass through diffuse reflection method. Compliant with multiple standards including CE, cULus, EAC, and EN 60947-5-2 ensuring quality and safety.

This sensor block is widely used in industrial automation, manufacturing lines, material handling, and quality control systems, where reliable and contactless object detection is critical. The IP ratings and rugged housing make it ideal for challenging environments, including wet, dusty or corrosive atmospheres.
