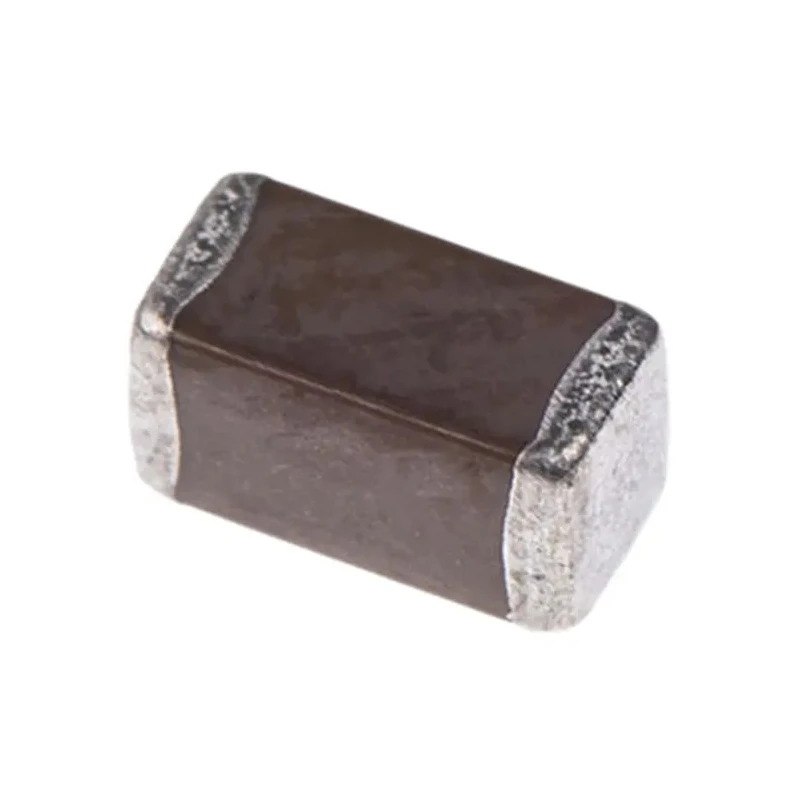

TDK 8 pF 50V dc Multilayer Ceramic Capacitor C0G Dielectric Surface Mount 0603 Package CGA3E2C0G1H080D080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2C0G1H080D080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	0.5 pF
Capacitance	8pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200

Key Features

Capacitance of 8 pF with a tolerance of 0.5 pF ensures precise capacitance control.
C0G dielectric offers excellent heat resistance and mechanical strength.
Surface mount design in 0603 package enables easy automatic mounting on PCBs.
Operates reliably in temperature range from -55°C to 125°C for harsh environments.
Meets AEC-Q200 automotive standard for quality and durability.
Low equivalent series resistance (ESR) ensures minimal self-heating and high ripple resistance.
Compact dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height.
Suitable for automotive battery line smoothing, sensor modules, and engine control units.

Product Description

TDK CGA3E2C0G1H080D080AA Multilayer Ceramic Capacitor is engineered with C0G dielectric to deliver high precision and stable capacitance of 8 pF under 50V dc rating. The surface mount component comes in a compact 0603 package (1.6 mm x 0.8 mm x 0.8 mm), suitable for demanding automotive and industrial applications.

Featuring excellent heat resistance and mechanical strength, these capacitors have a tolerance of 0.5 pF and operate reliably across a broad temperature range from -55°C to 125°C. Their low equivalent series resistance (ESR) and low equivalent series inductance (ESL) minimize self-heating and improve high-frequency performance.

This CGA series product is fully qualified to the AEC-Q200 automotive standard, making it ideal for safety-critical automotive electronics such as anti-lock brake systems, engine control units, and infotainment systems. Additionally, its robust construction makes it well suited for industrial applications including smart meters, solar inverters, and AC-DC battery chargers.

The product is supplied in tape and reel packaging, optimized for high-accuracy automatic placement in manufacturing operations. Its guaranteed performance and mature manufacturing process promise reliable operation in harsh environments.

Capacitance of 8 pF with 0.5 pF tolerance for precision applications. C0G dielectric ensures low temperature coefficient and stability. Compact 0603 surface mount package for space-saving designs. Wide operating temperature from -55°C to 125°C for extreme conditions.

AEC-Q200 certified for automotive reliability and safety. Low ESR and ESL provide excellent frequency response and ripple resistance. Suitable for automotive battery smoothing, sensor modules, and engine control units. Also used in smart meters, solar inverters, and transportation electronics.

Explore EnvMart's extensive catalog of advanced Multilayer Ceramic Capacitors for industrial and automotive applications. Find high-reliability components by leading brands like TDK to ensure performance and durability.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The capacitance of this model is 8 pF with a tolerance of 0.5 pF, ensuring precise capacitance control.

It operates reliably in a temperature range from -55°C to 125°C, making it suitable for harsh environments.

This capacitor uses a C0G dielectric, which offers excellent heat resistance and mechanical strength.

The dimensions of the 0603 package are 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height.

Yes, it meets the AEC-Q200 automotive standard, making it suitable for safety-critical automotive electronics.

This model is designed for surface mount installation, facilitating easy automatic mounting on PCBs.

The voltage rating of this capacitor is 50V dc, suitable for various applications.

It is supplied in tape and reel packaging, optimized for high-accuracy automatic placement in manufacturing operations.

This capacitor is suitable for automotive battery line smoothing, sensor modules, and engine control units, as well as industrial applications like smart meters and solar inverters.

This model features low equivalent series resistance (ESR), which ensures minimal self-heating and high ripple resistance.

The termination type for this model is surface mount, which is common for modern electronic components.

The country of origin for this capacitor is India.
