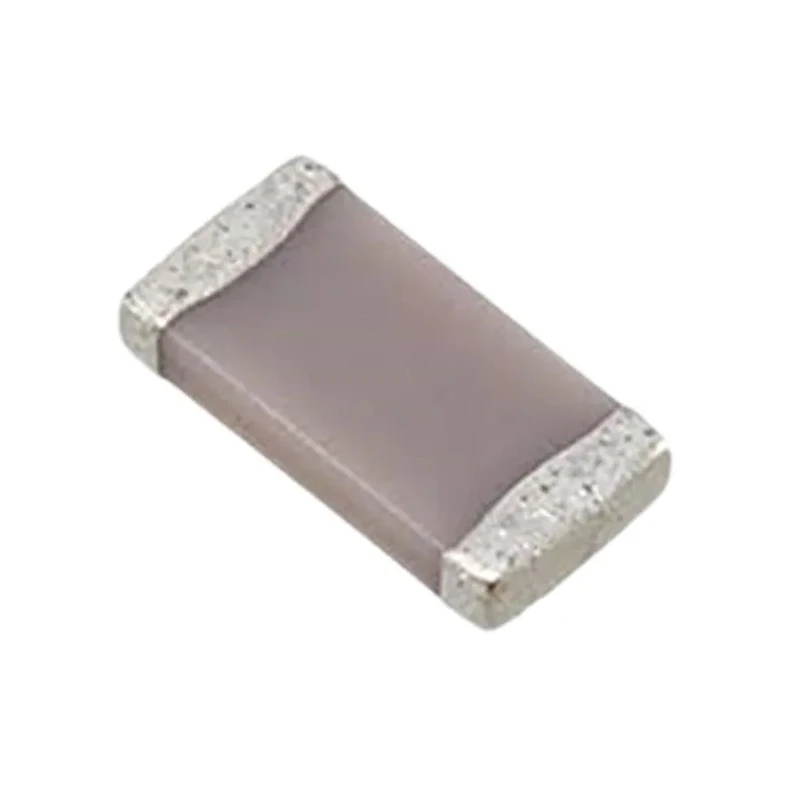

TDK 220 nF Multilayer Ceramic Capacitor, 250V dc, ±20 % Tolerance, Surface Mount 1206 Package CGA5L3X7T2E224M160AE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V dc |
| Brand | TDK |
| Height | 1.6mm |
| Length | 3.2mm |
| Model | CGA5L3X7T2E224M160AE |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | X7T |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed with X7T dielectric for stable temperature characteristics.
- Meets automotive standard AEC-Q200 for high reliability.
- Compact 1206 surface mount package measuring 3.2mm by 1.6mm.
- Operational temperature range from -55°C to 125°C for various industrial uses.
- Surface mount termination suitable for modern PCB assembly.
- Low equivalent series inductance for improved electrical performance.
- Provided in tape and reel packaging for efficient production insertion.
- Ideal for automotive engine control units, sensor modules, and power supply smoothing applications.
Product Description
TDK CGA5L3X7T2E224M160AE is a high-quality 220 nF multilayer ceramic capacitor designed for surface mount applications. It features a 250V dc voltage rating with a tolerance of ±20 % and utilizes the X7T dielectric material, delivering stable performance across a wide temperature range from -55°C to 125°C. The component is housed in a compact 1206 package size measuring 3.2mm in length, 1.6mm in width, and 1.6mm in height, making it suitable for space-constrained electronic circuits.
This capacitor complies with the stringent automotive industry standard AEC-Q200, ensuring reliable operation in demanding environments such as automotive engine control units and advanced sensor modules. The monolithic structure and low equivalent series inductance (ESL) contribute to superb electrical performance, making it adept for smoothing power supplies and decoupling applications.
Packaging on tape and reel facilitates automated machine placement, enhancing production efficiency. The surface mount termination type is compatible with modern PCB assembly lines.
The product is RoHS certified and suitable for various industrial, automotive, and commercial electronic manufacturing use cases, including power and signal conditioning circuits. High reliability meeting AEC-Q200 automotive standards.
Wide operating temperature range from -55°C to 125°C. Compact 1206 surface mount package with precise dimensions. Stable X7T dielectric for improved electrical stability. Tape and reel packaging for manufacturing readiness.
Low equivalent series inductance for enhanced performance. Suitable for engine controls, sensors, and power smoothing. RoHS compliant for environmentally safe manufacturing. Explore similar electronic components and advanced Multilayer Ceramic Capacitors at EnvMart for professional use in electronics, automotive, and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 220 nF.
It has a voltage rating of 250V dc.
The tolerance is ±20%.
The dimensions of the package are 3.2mm in length, 1.6mm in width, and 1.6mm in height.
The operational temperature range is from -55°C to 125°C.
It features a surface mount termination type.
This capacitor uses X7T dielectric material for stable performance.
Yes, it meets the automotive standard AEC-Q200 for high reliability.
It is provided in tape and reel packaging for efficient production insertion.
It is suitable for automotive engine control units, sensor modules, and power supply smoothing applications.
It has low equivalent series inductance, which improves its electrical performance.
The country of origin for this capacitor is India.
