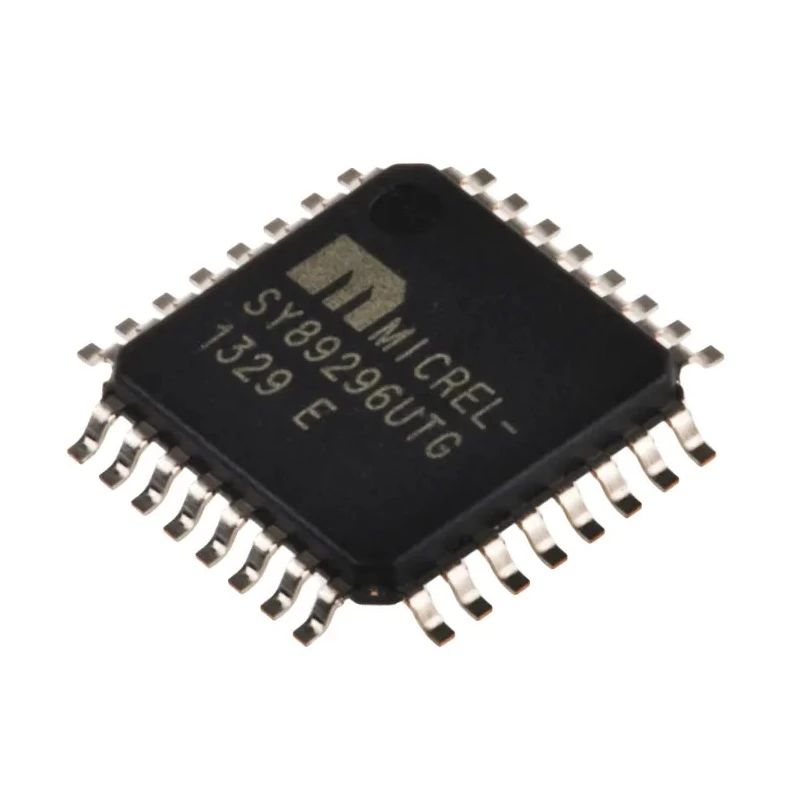

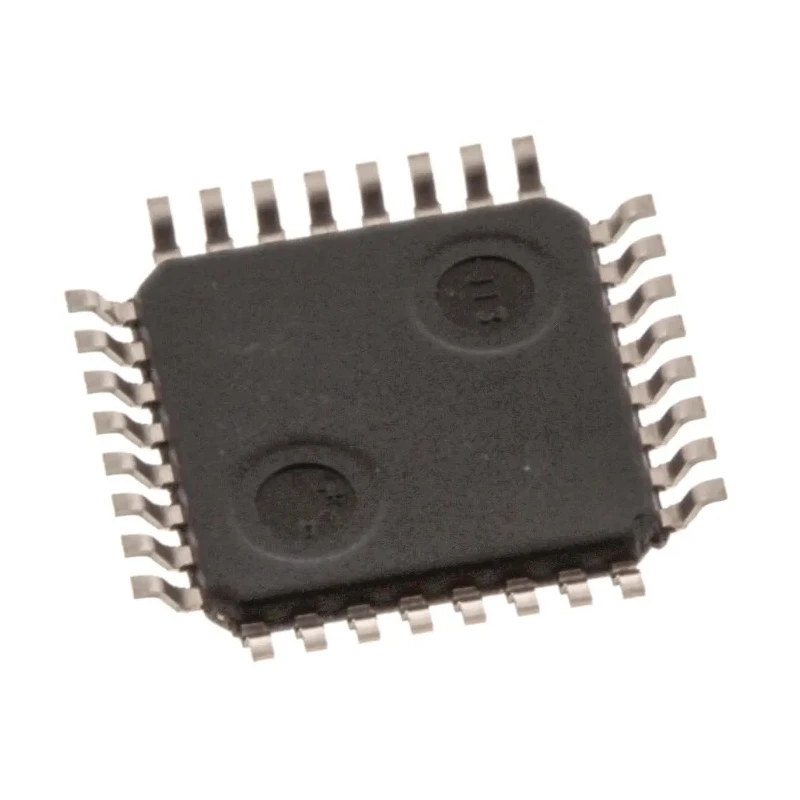

Microchip Programmable Delay Line 14.8 ns Total Delay, 32-Pin TQFP SY89296UTG

Microchip SY89296UTG is a programmable delay line designed to provide precise timing control with a total delay time of 14.8 ns. This device is packaged in a compact 32-pin TQFP surface mount format, facilitating easy PCB integration for electronic and semiconductor applications.

The device operates from a minimum supply voltage of 2.38V up to a maximum of 3.6V, ensuring versatility across different power supply systems. It features 1024 taps or steps with a single independent delay, allowing engineers to configure delay intervals finely. The first tap or step delay is 3.2 ns, ensuring fast initial response times critical in timing circuits.

Capable of operating reliably in harsh environments, it supports ambient temperatures ranging from -40°C to 85°C. Although it does not comply with specific automotive or other special standards, it is widely suited for applications in clock generation, timing synchronization, signal processing, and delay line requirements encountered in industrial and electronic manufacturing settings.

The surface mount TQFP package with 32 pins ensures compactness while maintaining robust electrical connectivity for complex circuit integrations. This programmable delay line is ideal for electronics designers seeking configurable, low-latency timing adjustments in semiconductor systems.

The programmable delay line offers a total delay of 14.8 ns for timing adjustments. It includes 1024 taps/steps with 1 independent delay for customizable delay settings. Operates within supply voltages from 2.38V to 3.6V ensuring compatibility with various power systems.

Designed for surface mount on PCBs with a 32-pin TQFP package for compact integration. Supports delay to first tap/step of 3.2 ns for rapid response in signal processing. Functions reliably within a temperature range of -40°C to 85°C for industrial environments.

Meets no special standards or automotive certifications but suitable for general semiconductor timing use.
