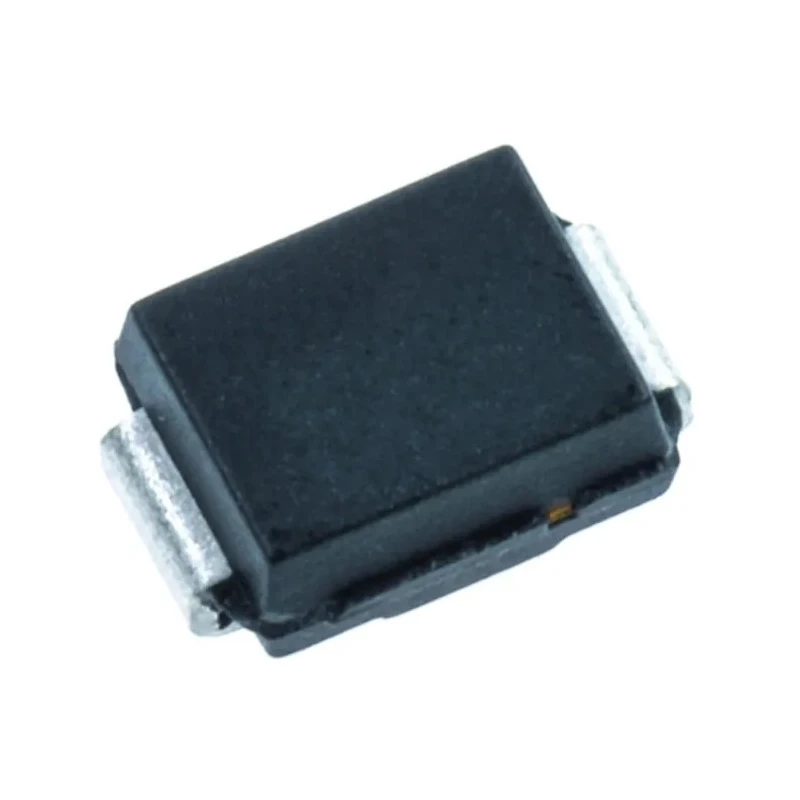

STMicroelectronics 100 V 3 A Surface Mount Schottky Diode DO-214AA STPS3H100U
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS3H100U |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS3H100 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.63V |
Key Features
- Maximum continuous forward current of 3 amperes ensures reliable operation under load.
- Peak reverse repetitive voltage rating of 100 volts allows robust voltage blocking capacity.
- Low forward voltage drop at 0.63 volts improves efficiency in power applications.
- Operates reliably between -65°C to 175°C temperature range for industrial environments.
- Compact DO-214AA package with pin count of 2 enables compact PCB designs.
- Withstands peak non-repetitive forward surge current of 75 amperes for transient conditions.
- Single diode configuration designed for circuit rectification and power efficiency.
- Ideal for industrial, electronics manufacturing, power conversion, and rectifier circuits.
Product Description
STMicroelectronics STPS3H100U is a high-performance Schottky diode designed for surface mount applications in power electronics. This diode is housed in a DO-214AA package with a compact footprint measuring 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, making it suitable for dense PCB layouts.
This diode supports a maximum continuous forward current of 3 amperes and a peak reverse repetitive voltage of 100 volts, providing reliable rectification capabilities in power supply circuits. With a low forward voltage of 0.63 volts, it offers high efficiency in conducting current with minimal power loss, which is critical in battery-powered and energy-sensitive industrial systems.
The operating temperature range from -65°C to +175°C ensures stable performance in harsh industrial and electronics environments, including automotive and manufacturing equipment.
The diode is configured as a single unit with two pins and has a peak non-repetitive forward surge current of 75 amperes, allowing it to handle transient surges safely. It does not carry any specific automotive or industry approvals but meets general semiconductor standards for durability and reliability.
This component is commonly used in industrial electronics, power converters, voltage clamping, and rectification applications where Schottky diodes are preferred due to their fast switching and low forward voltage drop characteristics.
Maximum continuous forward current of 3 A. Peak reverse voltage of 100 V. Low forward voltage drop of 0.63 V. Wide operating temperature range of -65°C to 175°C. Compact DO-214AA surface mount package. Peak non-repetitive surge current rating of 75 A.
Single diode configuration with 2 pins. Ideal for industrial and electronic power applications. EnvMart offers this semiconductor diode for reliable power and electronics circuit design, serving industrial, manufacturing, and electronics sectors.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STMicroelectronics STPS3H100U is 3 amperes.
This model has a peak reverse repetitive voltage rating of 100 volts.
The forward voltage drop is 0.63 volts, which improves efficiency in power applications.
It operates reliably within a temperature range of -65°C to +175°C.
The diode is housed in a DO-214AA package, measuring 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The peak non-repetitive forward surge current rating is 75 amperes.
This model features a single diode configuration with 2 pins.
It is commonly used in industrial electronics, power converters, voltage clamping, and rectification applications.
This component is a Schottky diode, known for its fast switching and low forward voltage drop characteristics.
The peak reverse current is rated at 1 mA.
The country of origin for this diode is India.
It belongs to the STPS3H100 series.
