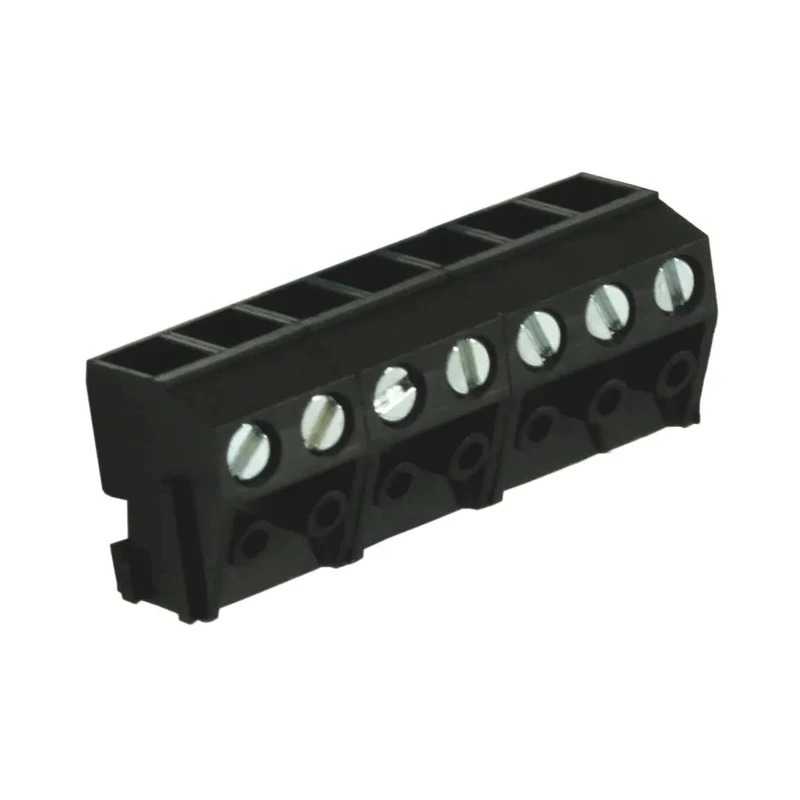

RS PRO 7-Contact 5 mm Pitch 1 Row PCB Terminal Block Vertical Screw Connection 250V CTB1302

Name: RS PRO 7-Contact 5 mm Pitch 1 Row PCB Terminal Block Vertical Screw Connection 250V CTB1302
Brand: RS PRO
SKU: 110279



Category PCB Terminal Block Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	RS PRO
Colour	Black
Orientation	Vertical
Current	10A
Length	35mm
Model	CTB1302
Depth	11mm
Width	13.6mm
Housing Material	Polyamide
Series	CTB1302
Number of Rows	1
Pitch	5mm
Number of Contacts	7
Connector Gender	Male
Minimum Wire Size mm²	0.33mm²
Maximum Wire Size mm²	2mm²
Minimum Wire Size AWG	14AWG
Maximum Wire Size AWG	22AWG
Wire Connection Method	Screw

Key Features

The terminal block supports a current of 10A with a voltage rating of 250V.
It uses a black polyamide housing that is UL94-V0 flame retardant for safety.
The wire connection method is a secure screw type, suitable for wire sizes from 0.33 mm² to 2 mm² (14 to 22 AWG).
The terminal block measures 35 mm in length, 13.6 mm in width, and 11 mm in depth.
The connector is male with guided pin alignment and nickel-plated steel M2.5 captive screws.
The product is manufactured in China and belongs to the CTB1302 series.

Product Description

RS PRO CTB1302 series PCB Terminal Block is a high-quality pluggable connector designed for securing electrical connections on printed circuit boards. Featuring 7 contacts with a 5 mm pitch and 1 row, this terminal block is optimized for vertical mounting, ensuring reliable and space-efficient integration in various electronic assemblies.

Constructed with a black polyamide housing rated UL94-V0 flame retardant, the terminal block offers excellent durability and safety compliance. The tin-plated copper wire protector terminals enhance conductivity and corrosion resistance, while the nickel-plated steel M2.5 captive screws ensure secure, maintenance-friendly wire fixing.

This terminal block supports a continuous current rating of 10A and an operating voltage of up to 250V, suited for demanding industrial and electronic applications. It accommodates wire sizes ranging from 0.33 mm² to 2 mm² (14 to 22 AWG), enabling versatile use with common wiring standards. The connector features guided pin alignment for easy and error-free assembly with pin strip headers.

Its compact dimensions - 35 mm length, 13.6 mm width, and 11 mm depth - allow effective placement within dense circuitry without sacrificing accessibility. The product’s vertical orientation supports straightforward integration into PCB designs requiring pluggable terminal blocks for modular electrical connections.

The terminal block supports a current of 10A with a voltage rating of 250V. Black polyamide UL94-V0 flame retardant housing provides safety and durability. Screw-type wire connection system accommodates 0.33 - 2 mm² wire sizes.

Compact size with dimensions 35 mm x 13.6 mm x 11 mm for efficient PCB layouts. Male connector with guided pin alignment and captive nickel-plated steel screws. Designed for industrial, electronic, and manufacturing applications requiring reliable PCB electrical connections.

The RS PRO CTB1302 series PCB Terminal Block is an ideal choice for electronics manufacturers, assembly lines, and maintenance operations requiring high reliability and ease of use. It supports a wide range of wire gauges and is built to conform to industry safety standards, making it a versatile component in power and signal distribution on printed circuit boards.
