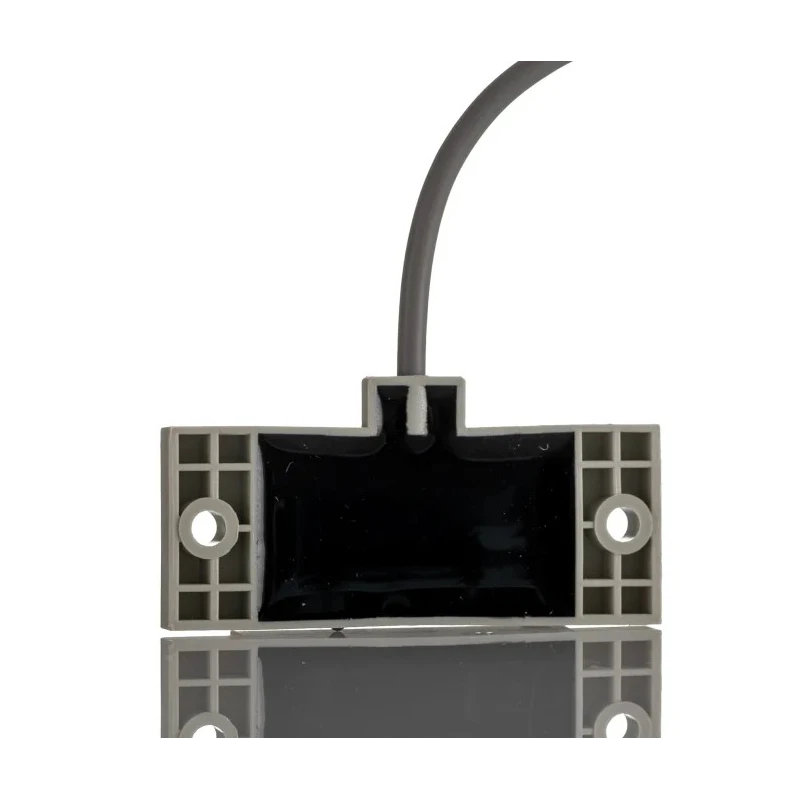

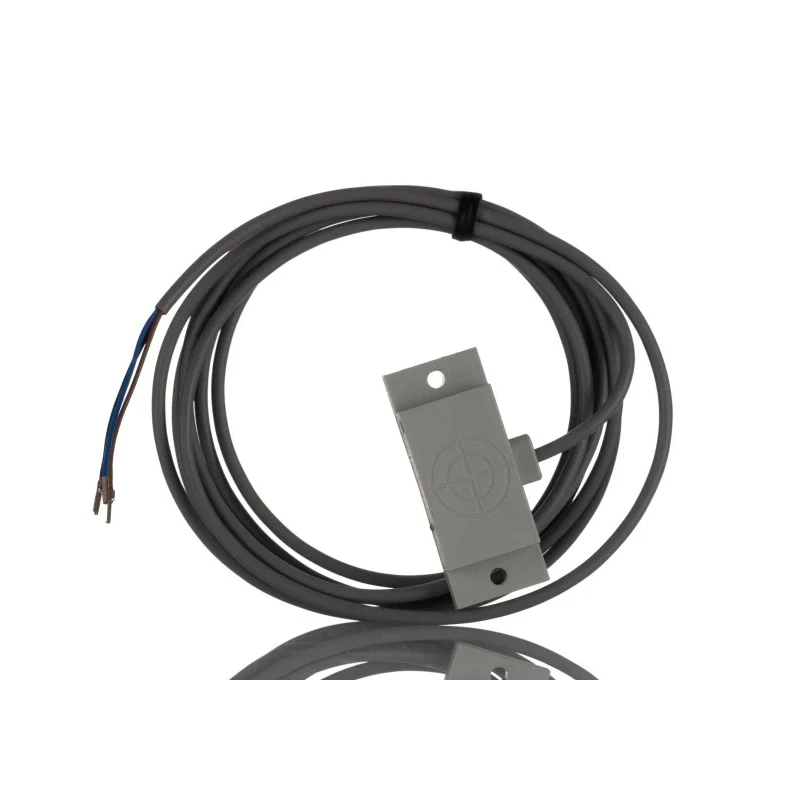

RS PRO Capacitive Proximity Sensor Block Style Non-Flush Mounting 10 mm Detection PNP Output 200mA 30V dc 896-7273
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 50mm |
| Model | 896-7273 |
| Depth | 10mm |
| IP Rating | IP67 |
| Width | 10mm |
| Mount Type | Non-Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 30Hz |
| Standards/Approvals | CE, IEC |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metallic and Non-Metallic Objects |
| Maximum Detection | 10mm |
Key Features
- Block style capacitive sensor for detection of metallic and non-metallic objects within 10 mm range.
- Non-flush mount with shielded design for reliable sensing performance.
- IP67 rated housing made from chemical and heat resistant polybutylene terephthalate.
- Operates within -10°C to +55°C temperature range for versatile industrial applications.
- PNP output type supporting up to 200mA switching current at 30V DC supply voltage.

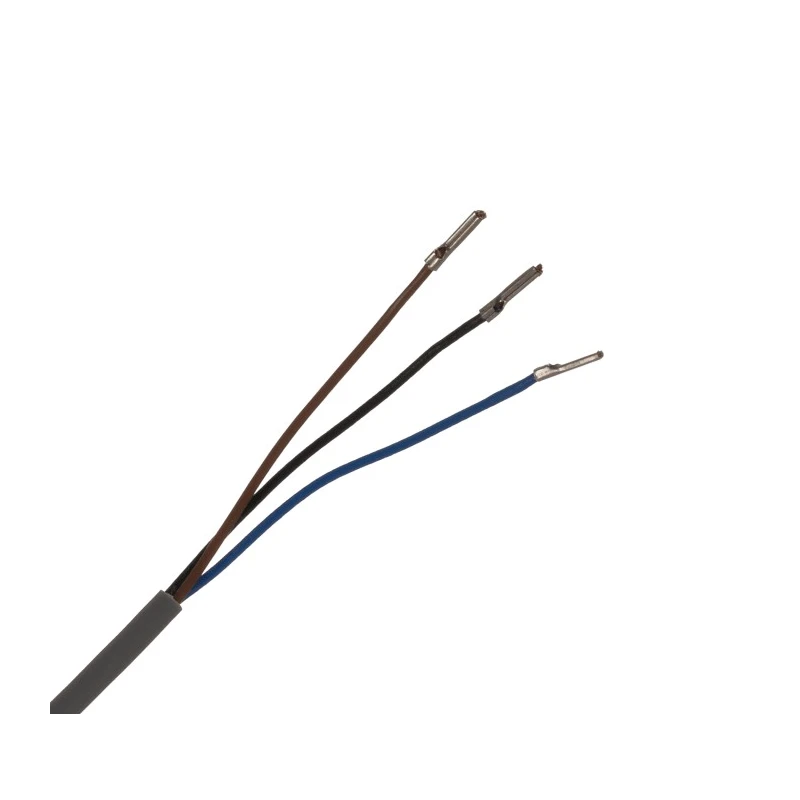

- Includes cable terminal type connection for ease of installation.
- Features short circuit and reverse polarity protection to safeguard equipment.
- Complies with CE and IEC standards, ensuring quality and safety.
Product Description
RS PRO 896-7273 is a capacitive proximity sensor with a robust block body design featuring a detection range of 10 mm and PNP output. The sensor is constructed with polybutylene terephthalate (PBT) housing material, offering chemical and heat resistance suitable for demanding industrial environments. It delivers reliable detection of both metallic and non-metallic objects without physical contact using capacitive sensing technology.
The sensor operates within an ambient temperature range from -10°C up to +55°C, making it suitable for various industrial, automation, and control applications. The design includes a non-flush mount type with shielding to reduce interference, and it carries an IP67 ingress protection rating, ensuring resistance against dust ingress and temporary immersion in water.
Electrical specifications feature a maximum supply voltage of 30 V DC and 200 mA switching current capability with a switching frequency of up to 30 Hz. The output is of PNP type, facilitating integration with automation systems. The sensor is equipped with cable terminal connection for straightforward wiring.
Safety is enhanced through built-in reverse polarity and short circuit overload protection, helping to prevent damage to the sensor and connected equipment. Compliance with CE and IEC standards underscores adherence to relevant international quality and safety requirements.
Block body style capacitive Proximity Sensor with PNP output. Detection range of 10 mm for sensing metallic and non-metallic objects. Polybutylene terephthalate housing for chemical and heat resistance. Non-flush mount style with shielding to prevent electrical interference.
IP67 protection against dust and temporary water immersion. Operating temperature range from -10°C to +55°C. Maximum supply voltage of 30 V DC and switching current of 200 mA. Includes cable terminal wiring for easy installation.
Reverse polarity and short circuit protection. CE and IEC standards compliant.
This sensor is widely used in industrial automation, manufacturing, and process control systems where reliable non-contact detection of conductive and non-conductive materials is required. Its compact size and durable construction make it ideal for harsh environmental conditions.
Explore more sensors and automation control gear in the Electronics & Electricals category on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 10 mm, allowing it to detect both metallic and non-metallic objects.
This model operates with a maximum supply voltage of 30 V DC.
It provides a PNP output type, which is suitable for integration with automation systems.
The sensor can handle a maximum switching current of 200 mA.
It operates within a temperature range of -10°C to +55°C, making it versatile for various industrial applications.
The sensor has an IP67 rating, indicating it is protected against dust and temporary immersion in water.
This sensor can detect both metallic and non-metallic objects.
The housing is made from polybutylene terephthalate (PBT), which offers chemical and heat resistance.
It features a non-flush mount design, which helps reduce electrical interference during operation.
The maximum switching frequency for this sensor is 30 Hz.
Yes, it includes reverse polarity and short circuit protection to safeguard the sensor and connected equipment.
It complies with CE and IEC standards, ensuring adherence to international quality and safety requirements.
