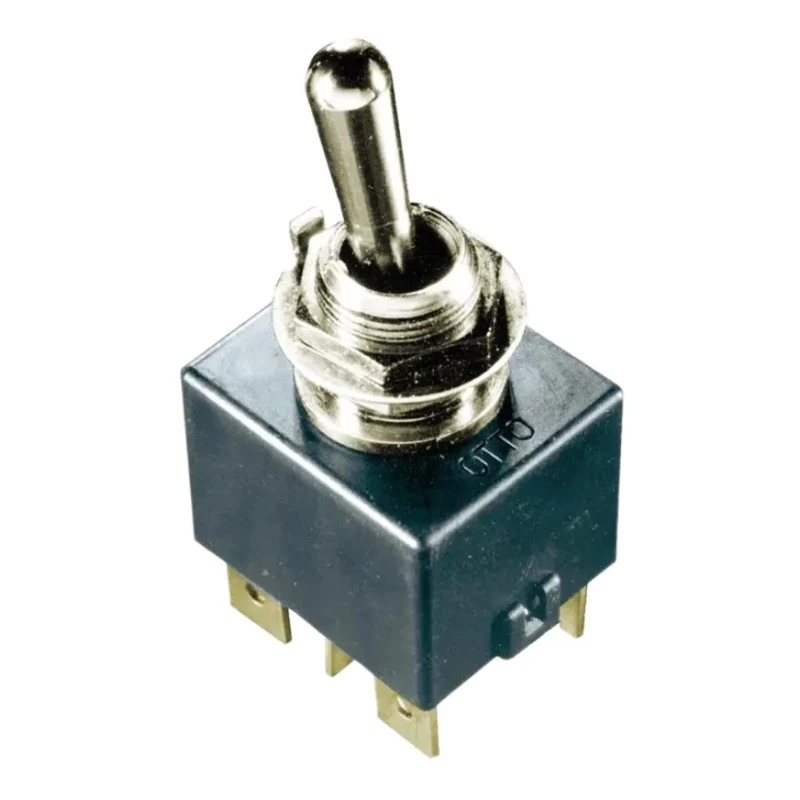

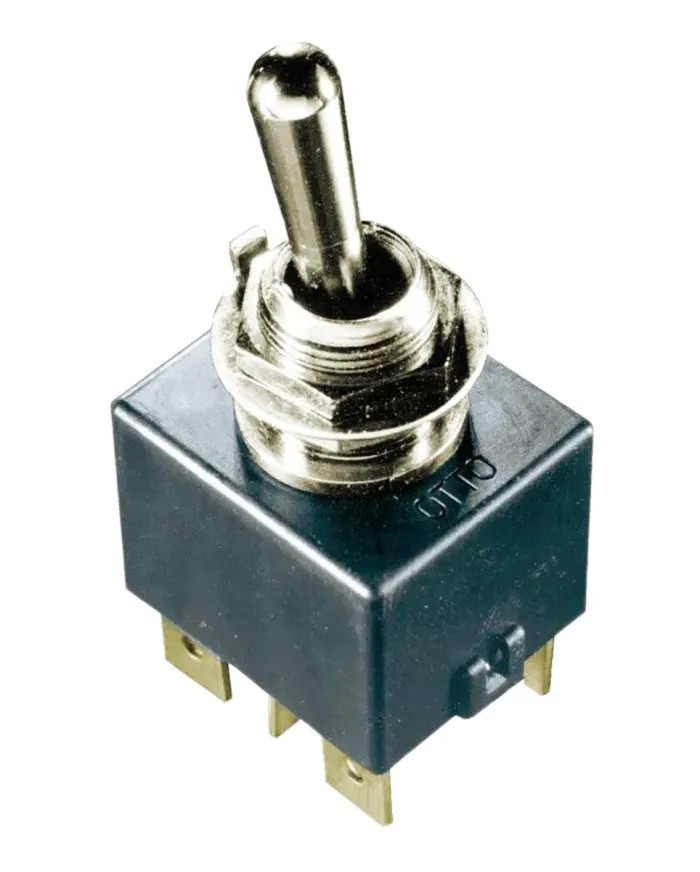

Otto Panel Mount Toggle Switch, On-Off, DPST, Tab Terminal, 28 V dc, 115 V ac, Stainless Steel Actuator T7-211J5
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Otto |
| Model | T7-211J5 |
| IP Rating | IP68S |
| Mount Type | Panel |
| Series | T7 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -30°C |
| Terminal type | Tab |
| Standards/Approvals | CSA, WEEE, UL, RoHS, REACH |
| Switch Operation | On-Off |
| Actuator Length | 0.66in |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 16A |
| Mechanical Life | 100000Cycles |
| Contact AC Voltage | 115V ac |
| Actuator Material | Stainless Steel |
Key Features
- The switch features a durable stainless steel actuator for robust operation.
- It is sealed to IP68S standard, ensuring resistance to water and dust ingress.
- The switch supports a contact current of 16A at 28V dc and 115V ac.
- Operating temperature range spans from -30°C up to +85°C for versatile applications.
- Panel mount design with tab terminal type for ease of installation.
- Mechanical life expectancy is 100,000 cycles, offering long service life.
- Certified to CSA, WEEE, UL, RoHS, and REACH standards for quality assurance.
- Suitable for marine, industrial control, and appliance applications requiring a sealed toggle switch.
Product Description
Otto T7-211J5 is a panel mount toggle switch providing reliable On-Off switching functionality with Double Pole Single Throw (DPST) contact configuration. This switch is engineered with a stainless steel actuator and precision machined bushing, contributing to its durability and high performance under harsh conditions.

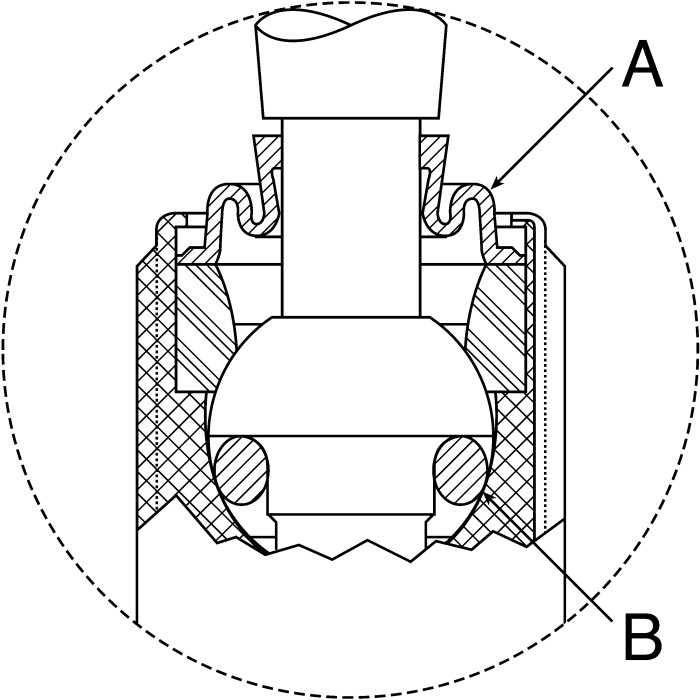

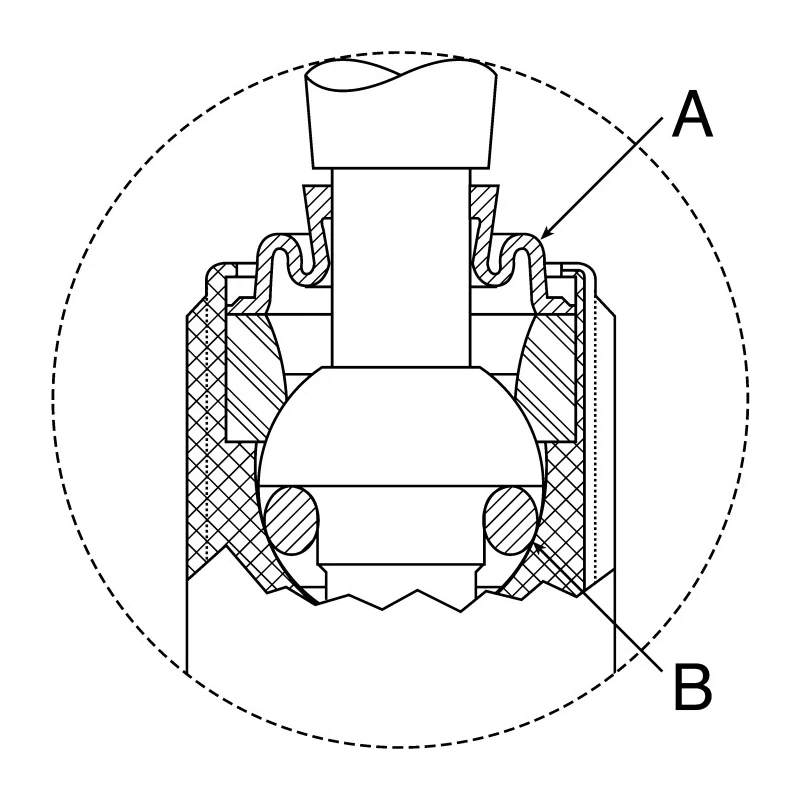

Rated for 16 amps contact current, it supports a DC voltage of 28V and AC voltage up to 115V. The component's design meets the IP68S sealing standard, achieved through an O-ring under the toggle actuator and a secondary visible bush seal, which protects against water and dust ingress, making it ideal for marine and rugged industrial environments.
Operating temperature range from -30°C to +85°C allows the switch to perform consistently in a variety of demanding applications. Its mechanical endurance of 100,000 cycles ensures dependable long-term operation. The switch complies with multiple certifications including CSA, WEEE, UL, RoHS, and REACH, further solidifying its quality and safety standards.
The toggle switch's panel mount and tab terminal design facilitates straightforward installation in electrical control panels, automation systems, and various machinery requiring secure and sealed switching solutions.
The switch features a durable stainless steel actuator for robust operation. Sealed to IP68S standard for water and dust protection. Supports 16A current at 28V dc and 115V ac voltages. Wide operating temperature range from -30°C to +85°C.
Panel mount design with tab terminal for easy installation. Mechanical life of 100,000 cycles ensures long service life. Certified to CSA, WEEE, UL, RoHS, and REACH standards. Designed for marine, industrial control, and appliance applications.
This Otto Toggle Switch is a dependable choice for industrial, marine, manufacturing, and automation use cases that demand robust, sealed switching capabilities. Browse more quality switches and panel mount controls at EnvMart to find complementary products for your electrical and automation system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch supports a contact current of 16A at both 28V dc and 115V ac.
This model has an IP68S rating, ensuring protection against water and dust ingress.
The operating temperature range spans from -30°C to +85°C, allowing it to function in various environments.
It has a mechanical life expectancy of 100,000 cycles, ensuring long-term operation.
This switch features a panel mount design, making it suitable for installation in electrical control panels.
The actuator is made of stainless steel, contributing to its durability.
It is certified to CSA, WEEE, UL, RoHS, and REACH standards, ensuring quality and safety.
The switch has a Double Pole Single Throw (DPST) configuration with an On-Off operation.
It uses a tab terminal type for ease of installation.
It is designed for marine, industrial control, and appliance applications that require a sealed toggle switch.
The actuator length is 0.66 inches, facilitating its operation.
This model belongs to the T7 series of toggle switches.
