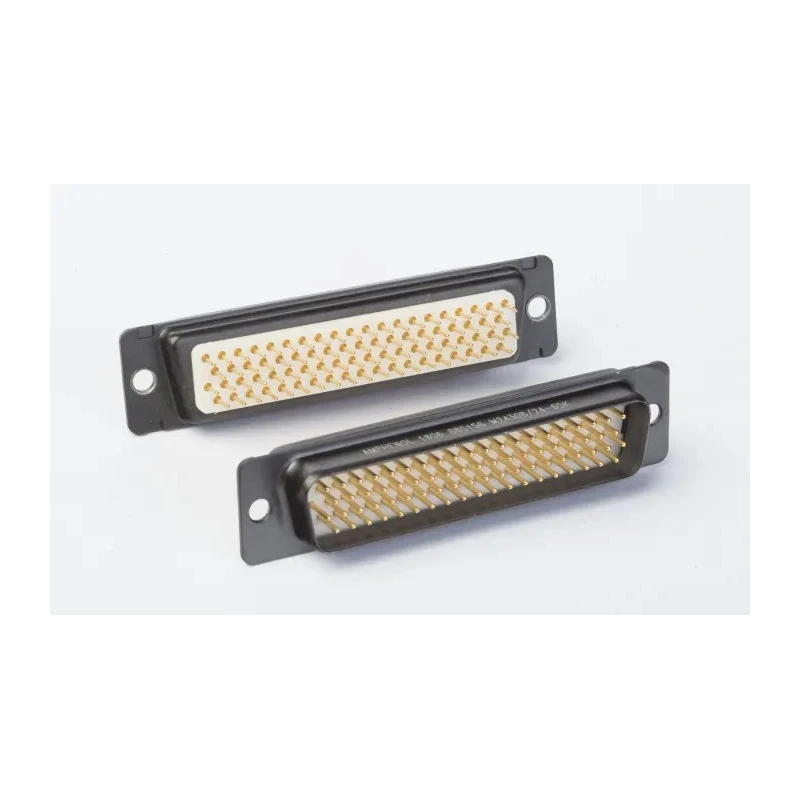

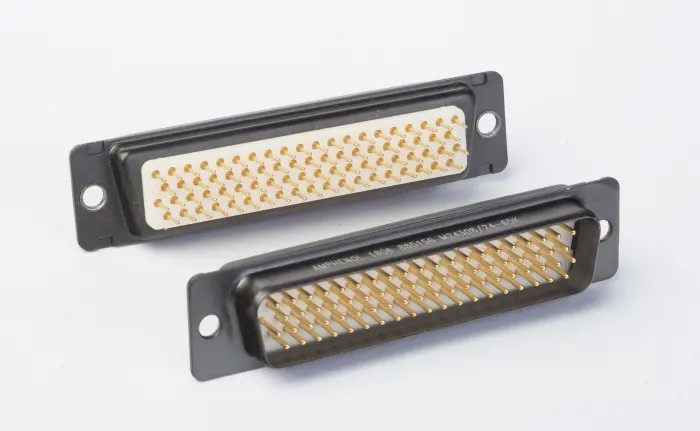

Amphenol India Panel Mount 78 Way Straight High Density D-Sub Connector 2.21 mm Pitch M24308/24-71F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | Amphenol India |
| Orientation | Straight |
| Current | 7.5A |
| Model | M24308/24-71F |
| Mount Type | Panel Mount |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | M24308 |
| Mounting Hardware | 4 to 40 Screw Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.21mm |
| Contact Plating | Gold |
| Number of Contacts | 78 |
| Contact Gender | Male/Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Designed for rack and panel applications with a straight orientation.
- Features 78 contacts supporting 7.5A current rating.
- Connector housing is made from durable glass filled polyester.
- Contacts are gold-plated copper alloy ensuring reliable conductivity.
- Mounting hardware utilizes 4 to 40 screw locks for secure installation.
- Operates at voltage up to 1000V with temperature range from -55°C to 125°C.
- Termination type is crimp with mixed male/female contacts.
- High-density M24308 series compatible with various PC tail connector configurations.
Product Description
Amphenol India M24308/24-71F panel mount 78 way straight D-Sub connector features a 2.21 mm pitch and is designed specifically for high-density electronic applications in industrial, laboratory, and manufacturing settings.
This connector belongs to the M24308 series and is well suited for rack and panel mount installations where reliable signal transmission is essential.
The connector’s housing is constructed from glass filled polyester offering robust mechanical strength and electrical insulation. The contacts are made of copper alloy with gold plating to ensure optimal contact reliability and corrosion resistance.
With a 7.5A current rating and voltage rating up to 1000V, it accommodates demanding electrical requirements. The temperature operating range extends from -55°C to +125°C, supporting operations in various environmental conditions.
Mounting hardware includes 4 to 40 screw locks, providing secure mounting and mechanical stability. The connector supports crimp termination and includes both male and female contact genders, enhancing its versatility.
This product is made in India and suitable for applications across electronics manufacturing, telecommunications, avionics, and other industrial sectors requiring high-density panel connectors.
Designed for rack and panel applications with a straight orientation. Features 78 contacts supporting 7.5A current rating. Connector housing is made from durable glass filled polyester. Contacts are gold-plated copper alloy ensuring reliable conductivity.
Mounting hardware utilizes 4 to 40 screw locks for secure installation. Operates at voltage up to 1000V with temperature range from -55°C to 125°C. Termination type is crimp with mixed male/female contacts. High-density M24308 series compatible with various PC tail connector configurations.
Manufactured in India ensuring quality standards adherence. Explore the broad selection of D-Sub Connectors and other electronic components at EnvMart for all your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a current rating of 7.5A, suitable for various electrical applications.
It operates at a voltage rating of up to 1000V, accommodating demanding electrical requirements.
The housing is made from glass filled polyester, while the contacts are constructed from gold-plated copper alloy for reliable conductivity.
The connector operates within a temperature range of -55°C to +125°C, making it suitable for various environmental conditions.
This connector features 78 contacts, providing ample connectivity options for high-density applications.
The mounting hardware includes 4 to 40 screw locks, ensuring secure installation and mechanical stability.
The connector has a pitch size of 2.21 mm, which is typical for high-density applications.
Yes, it is specifically designed for rack and panel applications with a straight orientation, ensuring reliable signal transmission.
The connector is designed with a female gender, suitable for various configurations.
This product is manufactured in India, adhering to quality standards.
It belongs to the M24308 series, known for high-density electronic applications.
