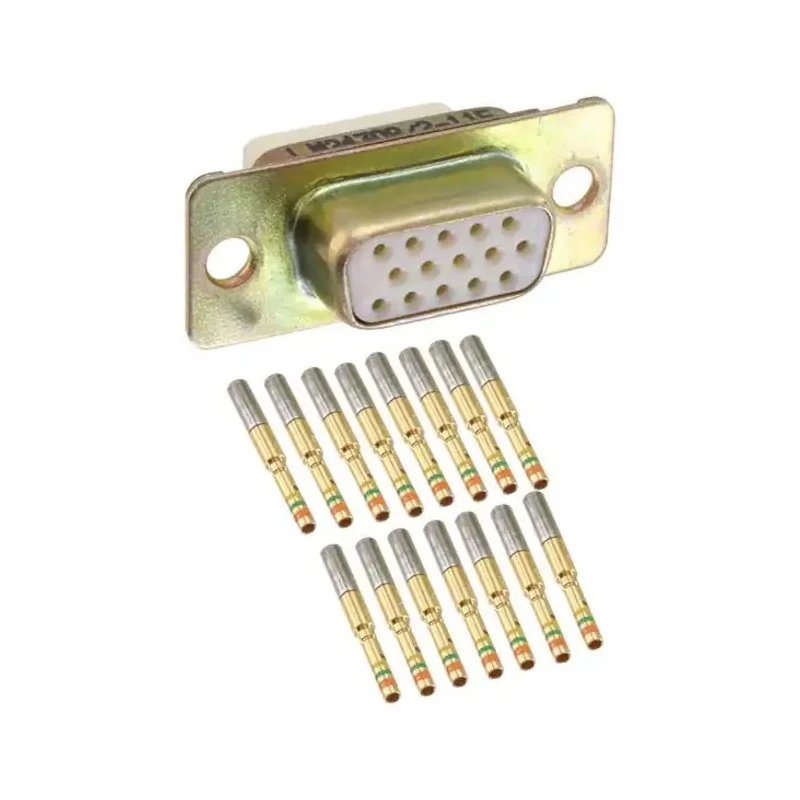

Amphenol India Panel Mount 15 Way Straight D-Sub Connector 2.29 mm Pitch 1000V 7.5A Gold Plating M24308/2-11F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | Amphenol India |
| Orientation | Straight |
| Current | 7.5A |
| Model | M24308/2-11F |
| Mount Type | Panel Mount |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | M24308 |
| Mounting Hardware | 4 to 40 Screw Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- The connector features 15 female contacts suitable for reliable data and power transmission.
- It supports a current rating of 7.5 amps and a voltage rating up to 1000 volts.
- Designed with gold plated copper alloy contacts for enhanced conductivity and corrosion resistance.
- The housing is made of durable glass filled polyester providing mechanical strength.
- It has a panel mount type with 4 to 40 screw lock mounting hardware for secure installation.
- Operating temperature range is -55°C to +125°C ensuring performance in harsh environments.
- Termination is crimp style facilitating firm contact and connection reliability.
- This connector is ideal for rack and panel applications in electronic assemblies.
Product Description
Amphenol India M24308/2-11F is a 15 Way Straight Panel Mount D-Sub Connector with a 2.29 mm pitch, providing secure and efficient connectivity for electronic components supporting up to 7.5 amps current and 1000 volts voltage.
This connector features a high density socket crimp type design with female contacts plated in gold on copper alloy to ensure excellent electrical conductivity and resistance to oxidation. The housing is constructed from glass filled polyester, delivering robust mechanical protection and durability.
Mounting hardware includes 4 to 40 screw locks that ensure a reliable attachment to panels or racks, making it suitable for industrial and electronic rack applications. The termination type is crimp, which ensures secure and stable wiring connections necessary for demanding environments.
The connector operates effectively in a temperature range from -55 degrees Celsius to 125 degrees Celsius, ensuring reliable performance under harsh environmental conditions common in industrial and manufacturing settings.
This D-Sub Connector is engineered for use in electronic, manufacturing, and industrial sectors requiring secure, high-density connections where panel mounting solutions are preferred. It is well-suited for power and signal transmission applications within control systems and instrumentation.
The connector features 15 female contacts suitable for reliable data and power transmission. It supports a current rating of 7.5 amps and a voltage rating up to 1000 volts. Designed with gold plated copper alloy contacts for enhanced conductivity and corrosion resistance.
The housing is made of durable glass filled polyester providing mechanical strength. It has a panel mount type with 4 to 40 screw lock mounting hardware for secure installation. Operating temperature range is -55°C to +125°C ensuring performance in harsh environments.
Termination is crimp style facilitating firm contact and connection reliability. This connector is ideal for rack and panel applications in electronic assemblies. Manufactured in India maintaining quality and standards compliance.
Explore a wide range of electronic connectors and components at EnvMart for your industrial, manufacturing, or laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7.5 amps and a voltage rating of up to 1000 volts.
The connector operates effectively within a temperature range of -55°C to +125°C.
The housing is constructed from glass filled polyester, which provides mechanical strength.
It features 15 female contacts suitable for reliable data and power transmission.
This connector utilizes a crimp termination type, ensuring secure and stable wiring connections.
It comes with 4 to 40 screw lock mounting hardware for secure installation.
The connector has a pitch of 2.29 mm.
It is ideal for rack and panel applications in electronic assemblies, particularly for power and signal transmission.
The contacts are made of copper alloy, plated with gold for enhanced conductivity and corrosion resistance.
This model features a straight orientation.
It is manufactured in India, maintaining quality and standards compliance.
This connector is part of the M24308 series.
