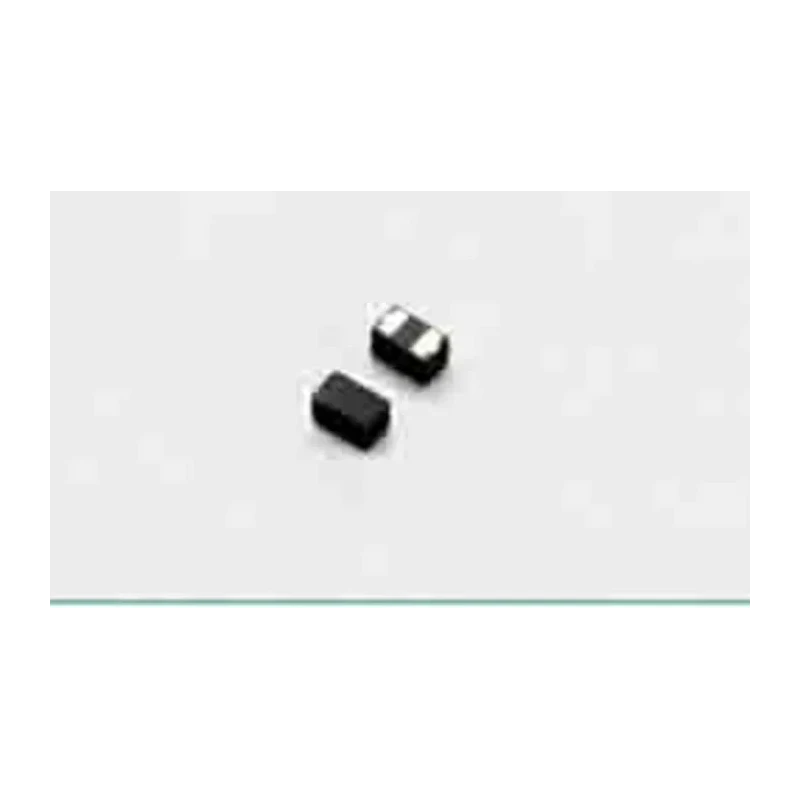

Littelfuse Uni-Directional TVS Diode, 2-Pin SOD-882 SP3205-01ETG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 0.65mm |
| Length | 1.05mm |
| Model | SP3205-01ETG |
| Width | 0.55mm |
| Mount Type | Surface |
| Series | SP3205 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-882 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 2 |
| Clamping Voltage VC | 12V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 3.6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Low capacitance of 0.3pF ensures excellent signal integrity on consumer electronics interfaces.
- Typical leakage current of 1nA at 3.3V enhances device efficiency.
- Compliance with IEC 61000-4-2 and RoHS standards guarantees high quality and environmental safety.
- Operating temperature range from -40°C to 125°C supports harsh industrial environments.
- Automotive standard AEC-Q101 qualified, suitable for automotive electronics applications.
- Compact surface mount package type SOD-882 with dimensions 1.05mm length and 0.65mm height.
- Maximum clamping voltage of 12V and maximum reverse leakage current of 100nA.
- Designed for single diode, uni-directional configuration with 2 pins for PCB mounting.
Product Description
Littelfuse SP3205-01ETG Uni-Directional TVS Diode in 2-Pin SOD-882 package offers exceptional protection against transient voltage spikes caused by electrostatic discharges (ESD), electrical fast transients (EFT), and lightning surges. Operating typically at a breakdown voltage of 3.6V and standoff voltage of 3.3V, this diode ensures sensitive circuitry is safeguarded in industrial, automotive, and consumer electronics applications. Its low capacitance of 0.3pF minimizes signal distortion, making it ideal for high-speed data lines.
The device complies with IEC 61000-4-2 for ESD protection up to ±30kV contact and air discharge, and is halogen free and lead free meeting environmental regulations such as RoHS. Its temperature range supports reliable operation from -40°C to 125°C, suitable for a wide range of operating conditions including automotive environments certified to AEC-Q101 standards.
Physical dimensions of length 1.05mm, width 0.55mm, and height 0.65mm in the SOD-882 surface mount package allow compact PCB layouts and ease of assembly. The diode has a clamping voltage of 12V and maximum reverse leakage current of 100nA, providing robust protection without impacting normal circuit performance.
Low capacitance of 0.3pF ensures minimal impact on signal quality. Leakage current at 1nA typical minimizes power loss. Meets stringent ESD, EFT, and lightning surge standards. Wide operating temperature range from -40°C to 125°C for harsh conditions.
Compact surface mount SOD-882 package for space-saving designs. Automotive qualified to AEC-Q101 standards for reliability. Halogen and lead free compliant with RoHS regulations. Single diode, uni-directional design with 2 pins for easy PCB mounting.
This TVS Diode is well suited for industrial automation, telecommunications, automotive electronics, consumer devices, and other electronic systems requiring high integrated ESD and transient voltage protection. It helps extend device life, enhance reliability, and ensure compliance with international standards.
Explore more Littelfuse semiconductor components and related surge protection devices in the EnvMart catalog to find the optimal solutions for your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical breakdown voltage of this model is 3.6V.
The maximum reverse stand-off voltage is 3.3V.
The maximum clamping voltage for this diode is 12V.
It operates within a temperature range of -40°C to 125°C.
This diode comes in a surface mount SOD-882 package with dimensions of 1.05mm length, 0.55mm width, and 0.65mm height.
This model features a 2-pin configuration for PCB mounting.
It complies with IEC 61000-4-2 for ESD protection and RoHS environmental regulations.
The typical leakage current is 1nA at 3.3V.
Yes, it is qualified to the automotive standard AEC-Q101, making it suitable for automotive electronics applications.
The maximum reverse leakage current is 100nA.
It has a low capacitance of 0.3pF, which ensures excellent signal integrity on consumer electronics interfaces.
It is suitable for industrial automation, telecommunications, automotive electronics, and consumer devices requiring ESD and transient voltage protection.
