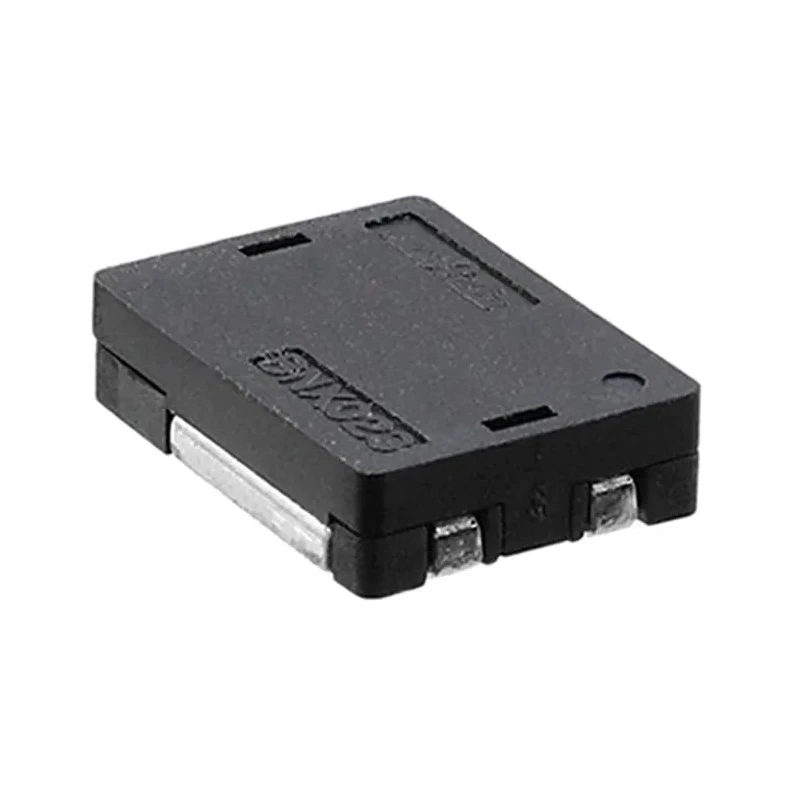

Murata EMI Filter BNX02 Surface Mount 16V DC 1GHz 15 A Solder Termination
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 3.5mm |
| Length | 12.1mm |
| Model | BNX02 |
| Depth | 9.1mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Operating Frequency | 1GHz |
| Series | BNX02 |
| Maximum Operating Temperature | 105°C |
| Capacitance | 47μF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 15A |
| Maximum Voltage | 16V dc |
| Standards/Approvals | RoHS |
| Termination Style | Solder |
Key Features
- High performance surface-mount SMD EMI suppression filter for DC power lines.
- Rated for a maximum current of 15 amperes and maximum voltage of 16 volts DC.
- Wide frequency range noise suppression from 1MHz to 1GHz.
- Low DC resistance of approximately 0.43 milliohms for efficient operation.
- Capacitance of 47 microfarads ensures effective filtering capability.
- RoHS compliant and manufactured in Japan.
- Ideal for reducing impulse noise such as electro-static discharge and spike noise.
- Suitable for applications in displays, digital AV equipment, amusement equipment, PC peripherals, industry and measurement equipment.
Product Description
Murata BNX02 EMI Filter BNX028-01L is a high performance surface-mount device (SMD) designed to provide excellent EMI noise suppression on DC power lines. It features a maximum current rating of 15 amperes and maximum voltage of 16 V DC, making it suitable for demanding industrial and electronic applications.
This series supports a broad operating frequency spectrum up to 1GHz, effectively filtering electromagnetic interference and impulse noise like electro-static discharge and spike noise, ensuring stable equipment operation. The low DC resistance of approximately 0.43 milliohms minimizes power loss, promoting energy efficiency.
Constructed with compact dimensions (length 12.1 mm, height 3.5 mm, depth 9.1 mm), this EMI Filter saves valuable PCB space while delivering enhanced performance. It includes a capacitance of 47μF and is RoHS compliant, ensuring safety and environmental standards compliance. The device is surface mounted with solder termination style.
Applications encompass a wide range of equipment including plasma display panels (PDP), LCD TVs, digital AV devices, amusement equipment, PC peripherals, industrial machinery, measurement devices, and power supplies, making it highly versatile within electronics and electrical engineering fields.
Manufactured in Japan with strict quality controls, the BNX02 filter series offers reliability and durability for advanced electronic system noise suppression needs. High current rating of 15 A and voltage rating of 16 V DC.
Wide frequency operation up to 1 GHz for comprehensive EMI suppression. Compact surface mount design reduces PCB area requirements. Low DC resistance improves efficiency and reduces heat generation. Compliant with RoHS environmental standards.
Capacitance of 47 microfarads for effective noise filtering. Suitable for impulse noise such as ESD and spike noises. Application areas include displays, AV equipment, industrial and measurement equipment. Discover the extensive range of EMI filtration solutions and other electronic components available at EnvMart for enhanced noise control and system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 15 amperes.
It has a maximum voltage rating of 16 volts DC.
This unit operates within a frequency range from 1 MHz to 1 GHz.
The capacitance of this model is 47 microfarads.
The dimensions are 12.1 mm in length, 9.1 mm in depth, and 3.5 mm in height.
It features a solder termination style.
The operating temperature range is from -40°C to 105°C.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This model is suitable for displays, digital AV equipment, amusement equipment, PC peripherals, and industrial machinery.
The low DC resistance of approximately 0.43 milliohms minimizes power loss and improves energy efficiency.
It is packaged in tape and reel format for easy handling and integration into circuits.
This EMI filter is manufactured in Japan.
