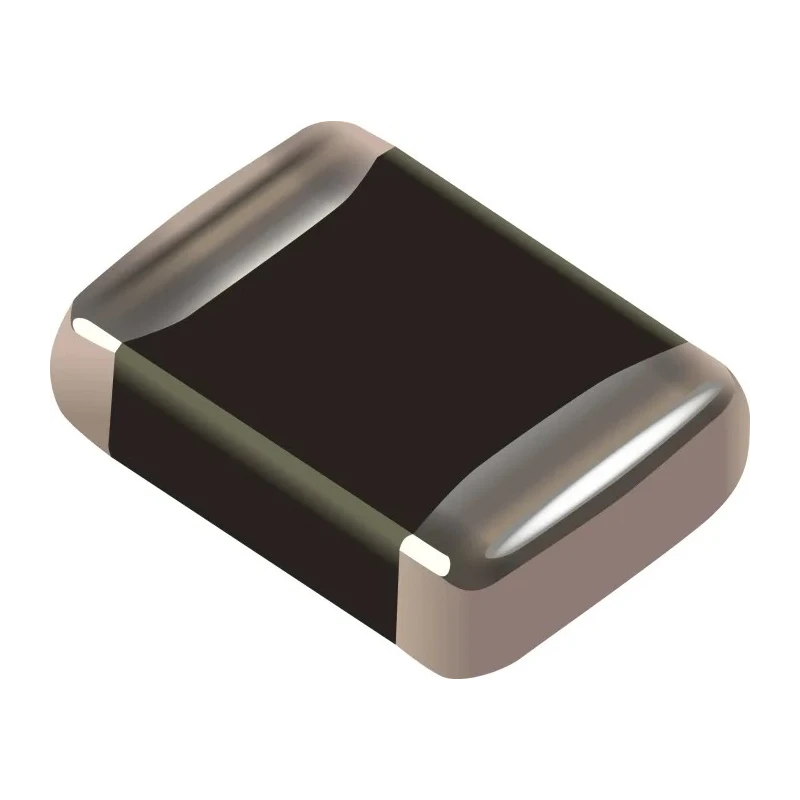

Bourns ZV Varistor 1 nF 10 A Clamping Voltage 165 V 100 V 2220 Surface Mount ZV60K2220801NIR1

Bourns ZV60K2220801NIR1 is a high-performance low voltage varistor designed to protect sensitive electronic devices from voltage surges and transient overvoltages in the low voltage region. Featuring a capacitance of 1 nF and a clamping current of 10 A, this varistor efficiently absorbs transient energy with its 6.2 Joules energy rating.

Designed for surface mount applications, the varistor comes in a 2220 package case, measuring 5.7 mm in length, 1.25 mm thickness, and 5 mm depth providing a compact footprint ideal for modern PCB layouts. It operates effectively between -55°C and +125°C, ensuring reliable performance in harsh industrial, electronic, and power supply environments.

This model provides a clamping voltage of 165 V and a varistor voltage of 100 V, with a maximum AC voltage of 60 V and a DC voltage limit of 85 V, making it suitable for protecting electronic assemblies against high voltage spikes. It withstands surge currents up to 800 A, making it ideal for transient voltage suppression in automotive, industrial electronics, and consumer devices.

The product complies with UL and RoHS standards, substantiating its safety and environmental compliance. Its excellent transient energy absorption and short response time make it a preferred component in surge protection circuits and power supplies.

1 nF capacitance for precise voltage handling. Clamping voltage of 165 V ensures robust transient suppression. Rated varistor voltage of 100 V suitable for sensitive electronic components. Surface mount 2220 package for compact PCB integration.

Operating temperature range from -55°C to 125°C for versatile applications. Maximum surge current of 800 A to protect electronics from high energy transients. Compliance with UL and RoHS for safety and environmental standards.

Energy rating of 6.2 Joules for efficient transient absorption. Made in Slovenia, ensuring quality manufacturing standards.

This Varistor is widely applied in industrial electronics, power supplies, automotive circuits, and consumer electronics to enhance device reliability. Explore more electronic components and surge protection devices in the Electronics Components category at EnvMart.
