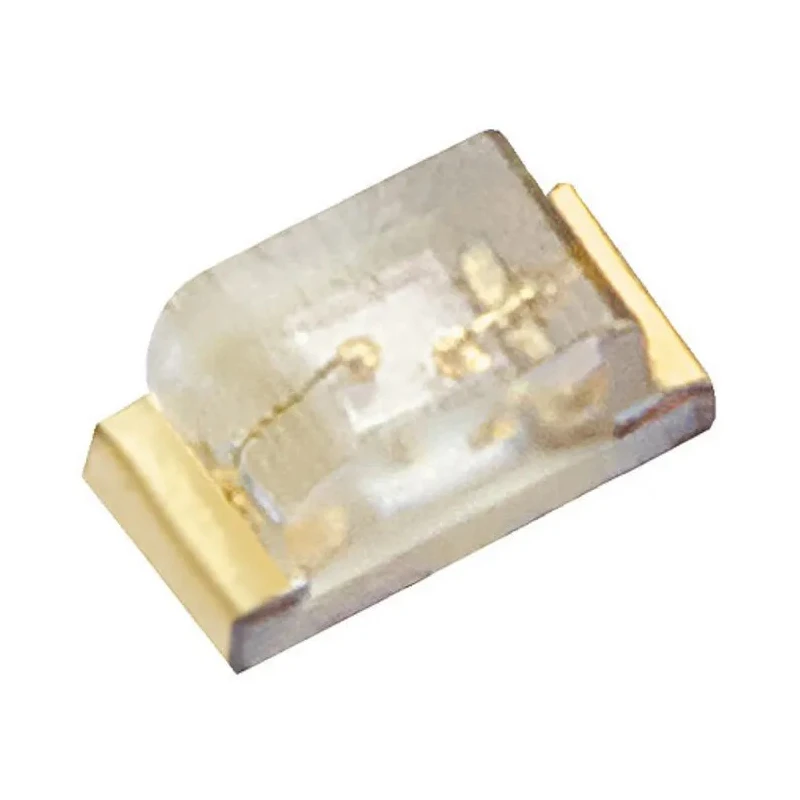

Kingbright Green LED 2.5 V 0402 Surface Mount Chip LED KPHHS-1005CGCK

Kingbright KPHHS-1005CGCK is a green LED designed in the industry standard 0402 surface mount chip LED package. It operates at a forward voltage of 2.5 V, providing efficient illumination with a luminous intensity of 50 mcd at a dominant wavelength of 570 nm. The compact 1.0 x 0.5 x 0.5 mm package makes it ideal for space-constrained electronic assemblies.

This LED features a clear, rectangular lens measuring 0.8 x 0.5 mm, providing a wide 120° viewing angle that suits backlighting and indicator applications across diverse industrial, electronic, and commercial sectors.

Designed for through-surface mount technology, it supports a maximum forward current of 150 mA and can dissipate up to 75 mW of power, ensuring a robust yet energy-efficient light source. The device is RoHS compliant, adhering to environmental and safety requirements.

The KPHHS-1005CGCK LEDs come packaged in tape & reel format, facilitating automated manufacturing processes on assembly lines and improving production efficiency. This product is manufactured in China, ensuring consistent quality and supply for various applications.

Typical industrial applications include electronic instrumentation, control panels, display indicators, and embedded systems where compact, reliable lighting with efficient power consumption is required. This LED is widely used in manufacturing, electronics assembly, telecommunications, and consumer electronics.

Compact SMT 0402 package measures 1.0 x 0.5 x 0.5 mm. Green LED with 50 mcd luminous intensity and 570 nm wavelength. Wide 120° viewing angle for broad light dispersion. Maximum forward current of 150 mA and power dissipation of 75 mW.

Clear rectangular lens of 0.8 x 0.5 mm dimensions. RoHS compliant, ensuring environmental safety standards. Tape & reel packaging for high-volume automated assembly. Explore further Kingbright LED products and accessories on EnvMart for comprehensive electronic component solutions.
