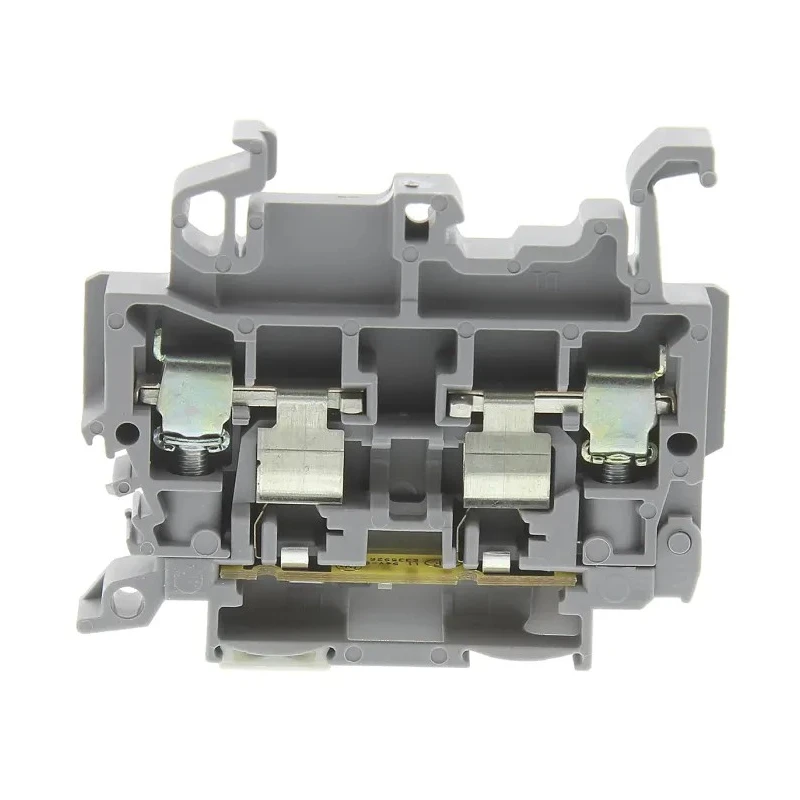

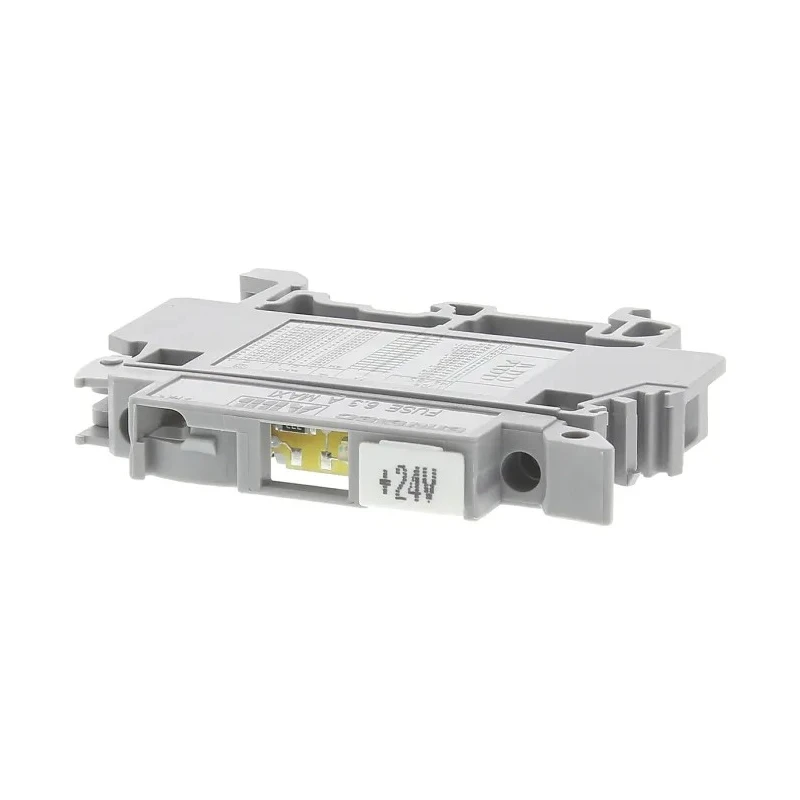

Entrelec M Series Fused DIN Rail Terminal Block Grey, 4 mm² to 6 mm², 1-Level Fused, Screw Termination 1SNA115663R2300
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Entrelec |
| Colour | Grey |
| Model | 1SNA115663R2300 |
| Series | M |
| Termination Type | Screw |
| Maximum Operating Temperature | 110°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -55°C |
| Pitch | 8mm |
| Standards/Approvals | CSA, EU Directive 2002/95/EC, EAC, cUL, CE |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 4, 6mm² |
| Terminal Block Current | 6.3A |
| FUSE TERM C/W INDICATORBrand | NEUTRAL |
| RS PRO CTR 4 Series Disconnect Terminal Block, 4mm², 1-Level Fused, ScrewBrand | RS PRO |
Key Features
- Constructed with grey flame-resistant polyamide 6.6 material for durability and safety.
- Supports a cable cross-sectional area range of 4 mm² to 6 mm² and wire gauge from AWG14 to AWG12.
- Features 1-level fuse integration with lever action fuse carrier for easy fuse replacement.
- Operates reliably within temperature range from -55°C to 110°C.
- Designed with captive terminal screws having hardened heads to prevent burring.
- Compatible with both 20x5mm and 25x5mm fuse sizes for versatile applications.
- Meets international standards including CSA, cUL, EU Directive 2002/95/EC, EAC, and CE certifications.
- Suitable for industrial and electrical distribution applications requiring robust terminal blocks.
Product Description
Entrelec 1SNA115663R2300 M Series fused DIN Rail terminal block is an industrial-grade grey terminal block engineered for electrical and electronic power and connector applications. It supports screw termination for wire sizes ranging between 4 mm² to 6 mm², capable of handling currents of up to 6.3 amps and voltages up to 600 volts, making it ideal for a variety of industrial automation, electrical distribution, and control panel uses.
The terminal block uses a moulded flame-resistant polyamide 6.6 housing that complies with rigorous safety standards. The fuse integration facilitates easy fuse handling through a lever action fuse carrier which accepts standard 20x5mm and 25x5mm fuses, enhancing maintenance efficiency. The device operates reliably in extreme temperatures from -55°C up to 110°C, suitable for harsh industrial environments. It features captive screws with hardened heads designed to prevent thread damage, ensuring long-lasting secure connections.
This product conforms to recognized international standards including CSA, cUL, EU Directive 2002/95/EC, EAC, and CE approvals, underscoring its quality and safety credentials. Its 8mm pitch dimension supports high-density mounting on asymmetric 'G' and Top Hat DIN rails.
The single-level fused design offers protection and ease of installation for electrical circuits in industrial settings, HVAC systems, machinery controls, and manufacturing lines. The grey color coding supports clear identification in wiring ducts.
Constructed with durable flame-resistant polyamide 6.6 material for safety and longevity. Compatible with multiple fuse sizes (20x5mm and 25x5mm) using lever action fuse carrier. Captive hardened screws prevent burring for reliable terminal connections.
Wide temperature operating range from -55°C to 110°C for varied industrial environments. Compliance with CSA, cUL, EAC, CE, and EU directive standards ensures installation safety. Designed for mounting on asymmetric 'G' and Top Hat DIN rails with 8mm pitch spacing.
Supports wire sizes AWG 14 to AWG 12 for flexible wiring options. Rated for 600 volts and 6.3 amps suitable for power distribution blocks.
This Entrelec fused DIN rail terminal block is an essential component for electrical panel builders, control systems engineers and maintenance professionals seeking reliable circuit protection and efficient wiring solutions. Explore further selections in DIN Rail Terminal Blocks on EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this terminal block is 600 volts.
This model can handle a maximum current of 6.3 amps.
It supports wire sizes from 4 mm² to 6 mm², equivalent to AWG 14 to AWG 12.
It operates reliably within a temperature range of -55°C to 110°C.
This terminal block is compatible with 20x5mm and 25x5mm fuse sizes.
It is constructed with grey flame-resistant polyamide 6.6 material.
It is designed for mounting on asymmetric 'G' and Top Hat DIN rails with an 8mm pitch.
It meets several international standards including CSA, cUL, EAC, CE, and EU Directive 2002/95/EC.
The terminal block features a lever action fuse carrier for easy fuse replacement.
The terminal block has captive screws with hardened heads designed to prevent burring.
It is suitable for industrial automation, electrical distribution, and control panel uses.
The country of origin for this terminal block is India.
