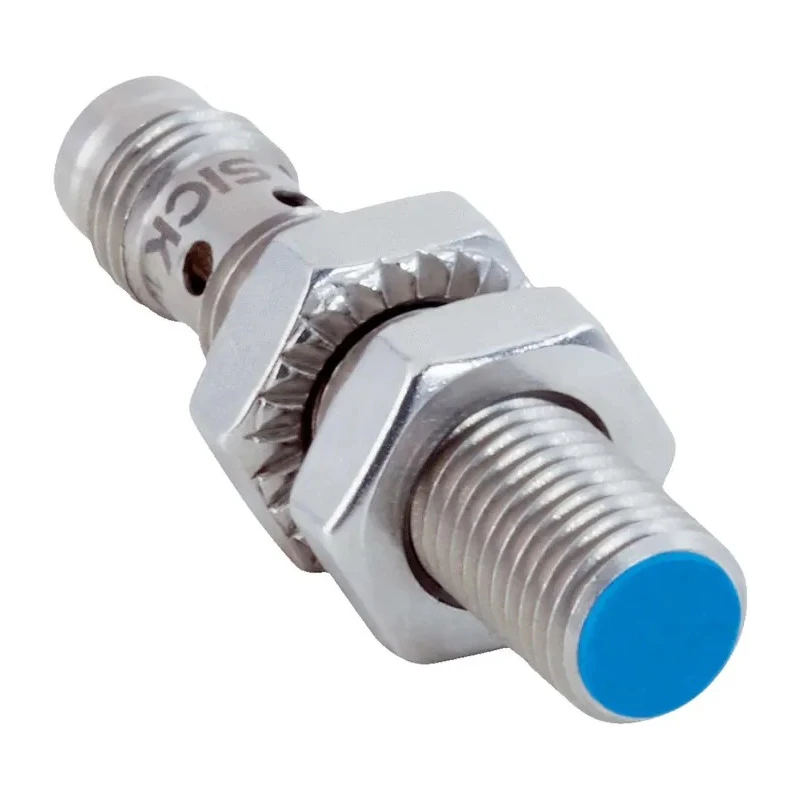

SICK Threaded Barrel Inductive Proximity Sensor M8 x 1, Flush Mount, Stainless Steel Housing IP68 IP69K IMB08-02BPSVT0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 40 °C to +100 °C |
| Length | 40mm |
| Model | IMB08-02BPSVT0K |
| IP Rating | IP68, IP69K |
| Width | 8mm |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IMB |
| Maximum Operating Temperature | 100°C |
| Thread Size | M8 x 1 |
| Enclosure Rating | IP 68, IP 69K |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance |
| Switching Current | 200mA |
| Terminal type | M8 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 4kHz |
| Maximum Supply Voltage | 30V |
| Materials Detected | Plastic |
| Maximum Detection | 2mm |
| Extended sensing ranges | 2 mm to 20 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
| Standards/ApprovalsEN 60529, EN 60947-5-2, ISO 20653 | 2013-03 |
Key Features
- Threaded barrel size M8 x 1 with 40 mm length and 8 mm width for compact mounting.
- Flush mounting type ensures close installation without interference.
- Stainless steel housing provides ruggedness and resistance to oils and cooling lubricants.
- Operating temperature range from -40°C to 100°C suitable for harsh environments.
- IP68 and IP69K rating offers protection against dust and high-pressure water jets.
- Output type is PNP with a switching current of 200 mA and maximum supply voltage of 30 V DC.
- Maximum switching frequency of 4 kHz for fast response applications.
- Optical adjustment indicator and IO-Link ready for easy installation and communication.
Product Description
The SICK IMB08-02BPSVT0K is a threaded barrel inductive proximity sensor engineered for precision detection of plastic materials in demanding industrial applications. Featuring a compact M8 x 1 thread size and a body length of 40 mm with 8 mm width, the sensor enables flush mounting for space-effective installations.
Its stainless steel housing ensures durability and resistance to oils and cooling lubricants, making it ideal for outdoor and harsh working conditions. The sensor supports an operating temperature range of -40°C up to 100°C and boasts an enclosure rating of IP68 and IP69K, providing protection against dust ingress and high-pressure, high-temperature water jets.
Equipped with a PNP output type delivering up to 200 mA switching current and a maximum supply voltage of 30 V DC, the IMB08-02BPSVT0K supports switching frequencies of up to 4 kHz for highly dynamic machines. The optical adjustment indicator simplifies setup, while IO-Link compatibility adds flexible communication capabilities.
The sensor operates with extended, highly precise sensing ranges from 2 mm to 20 mm thanks to advanced ASIC technology developed by SICK, ensuring stable and reliable process control. This versatility allows replacement of multiple sensor types with a single model, leading to simplified product selection and inventory management.
Applications include speed measurement, material transportation monitoring, valve piston monitoring in lubrication systems, elevator door detection, and position sensing in automated systems. Use cases span industrial automation, manufacturing, material handling, and safety systems.
Thread size: M8 x 1. Body Style: Threaded Barrel. Flush mounting for compact installations. Stainless steel housing for rugged environments. Protection rating: IP68, IP69K. Output: PNP, max switching current 200 mA. Maximum supply voltage: 30 V DC.
Switching frequency: 4 kHz. Operating temperature: -40°C to 100°C. Extended sensing ranges 2 - 20 mm with ASIC technology.
With the SICK IMB series, reliable and flexible sensor solutions are offered for diverse industrial uses, combining durability with precise detection and easy integration. For comprehensive sensor selection, explore the Proximity Sensor section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this model is from -40°C to 100°C, making it suitable for harsh environments.
This sensor has a maximum switching frequency of 4 kHz, allowing for fast response in dynamic applications.
It features a PNP output type with a maximum switching current of 200 mA.
The sensor has an IP68 and IP69K rating, providing protection against dust and high-pressure water jets.
This model is designed to detect plastic materials in industrial applications.
It has a thread size of M8 x 1 and features a flush mounting style for compact installations.
The maximum supply voltage for this sensor is 30 V DC.
The body length of this model is 40 mm.
The housing is made of stainless steel, providing resistance to oils and cooling lubricants.
It supports extended sensing ranges from 2 mm to 20 mm, utilizing advanced ASIC technology for precise detection.
This model complies with standards EN 60529, EN 60947-5-2, and ISO 20653.
It supports DC 3-/4-wire and DC 2-wire electrical configurations.
