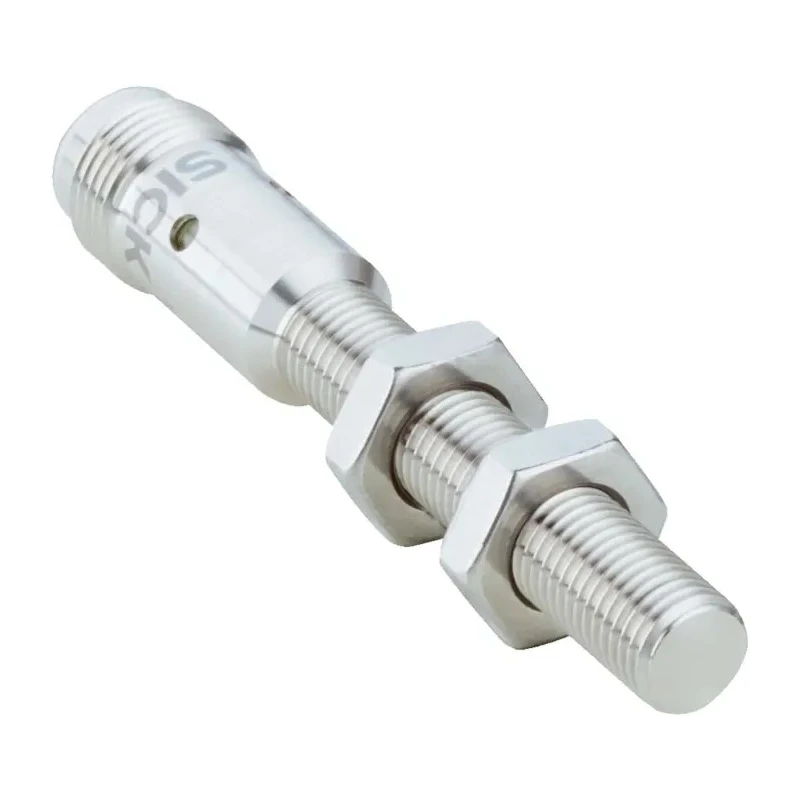

SICK Threaded Barrel Inductive Proximity Sensor, M8 x 1, PNP Output, 30 V dc, 200mA, IP68 IP69K, Stainless IMI08-02BPSNC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +85 °C |
| Length | 70mm |
| Model | IMI08-02BPSNC0S |
| IP Rating | IP68, IP69K |
| Width | 8mm |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IMI08 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M8 x 1 |
| Enclosure Rating | IP68, IP69K |
| Minimum Operating Temperature | -25°C |
| Interfaces | lance |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 100Hz |
| Standards/Approvals | EN 60529, EN 60947-5-2, UL File No. E181493 |
| Maximum Supply Voltage | 30V |
| Materials Detected | 304 V2A Stainless Steel, Aluminium, Brass, Copper, Steel |
| Maximum Detection | 2mm |
| Large sensing ranges | 2 mm to 40 mm |
Key Features
- Equipped with a threaded barrel M8 x 1 design for secure, flush mounting.
- Provides a maximum detection range of 2 mm with unshielded sensing.
- Constructed from stainless steel for resistance against oils, lubricants, and cleaning agents.
- Operates within a temperature range of -25°C to 75°C ensuring durability in industrial environments.
- Delivers a PNP output with a switching current up to 200 mA.
- Rated IP68 and IP69K for protection against water and dust ingress.
- Offers a maximum supply voltage of 30 V dc suitable for automation controls.
- Features a 4-pin terminal for easy integration and connection.
Product Description
The SICK IMI08-02BPSNC0S is a high-performance threaded barrel inductive proximity sensor designed for industrial automation and control systems. Its M8 x 1 threaded barrel allows for flush mounting in compact installations. The sensor features an unshielded stainless steel housing rated to IP68 and IP69K standards, providing exceptional resistance to harsh environments, including exposure to oils, cooling lubricants, and aggressive cleaning products.
Operating within a temperature range from -25°C to 75°C, this proximity sensor is built to endure mechanical shocks and rapid temperature changes while maintaining reliable performance. It detects metal objects up to 2 mm away, supporting various materials like 304 V2A stainless steel, aluminium, brass, copper, and steel.
Equipped with a PNP output type, the sensor tolerates a switching current of up to 200 mA and can handle a maximum supply voltage of 30 V dc. Its 4-pin terminal facilitates straightforward electrical connections suitable for automation and control gear integration.
This sensor is part of the IMI08 series known for durable, long-lasting stainless steel housings with IO-Link communication capabilities, making it suitable for stable process control and high plant availability. Applications include valve position sensing, monitoring material transport, speed measurement, door leaf detection in elevators, and other movement and position control tasks in industrial settings.
Threaded barrel M8 x 1 for flush mounting in tight spaces. Robust stainless steel housing ensures extended service life under mechanical and chemical stress. IP68 and IP69K enclosure protection against water and dust ingress.
Wide operating temperature range for versatile industrial applications. Supports multiple metal detections with high switching frequency.
Choose the SICK IMI08-02BPSNC0S Proximity Sensor for reliable sensing solutions in manufacturing, automation, material handling, and monitoring applications to improve process safety and efficiency. Explore more sensors and automation equipment in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 2 mm with unshielded sensing.
It operates within a temperature range of -25°C to 75°C.
This model delivers a PNP output with a switching current of up to 200 mA.
The sensor has a length of 70 mm and a width of 8 mm.
It can detect various metals including 304 V2A stainless steel, aluminium, brass, copper, and steel.
The sensor is rated IP68 and IP69K, providing protection against water and dust ingress.
It features a threaded barrel M8 x 1 design for flush mounting.
The maximum supply voltage for this unit is 30 V dc.
The maximum switching frequency of this sensor is 100 Hz.
It complies with EN 60529, EN 60947-5-2, and has a UL File No. E181493 approval.
It uses a 4-pin terminal for easy integration and connection.
The housing material is stainless steel, providing resistance against oils, lubricants, and cleaning agents.
