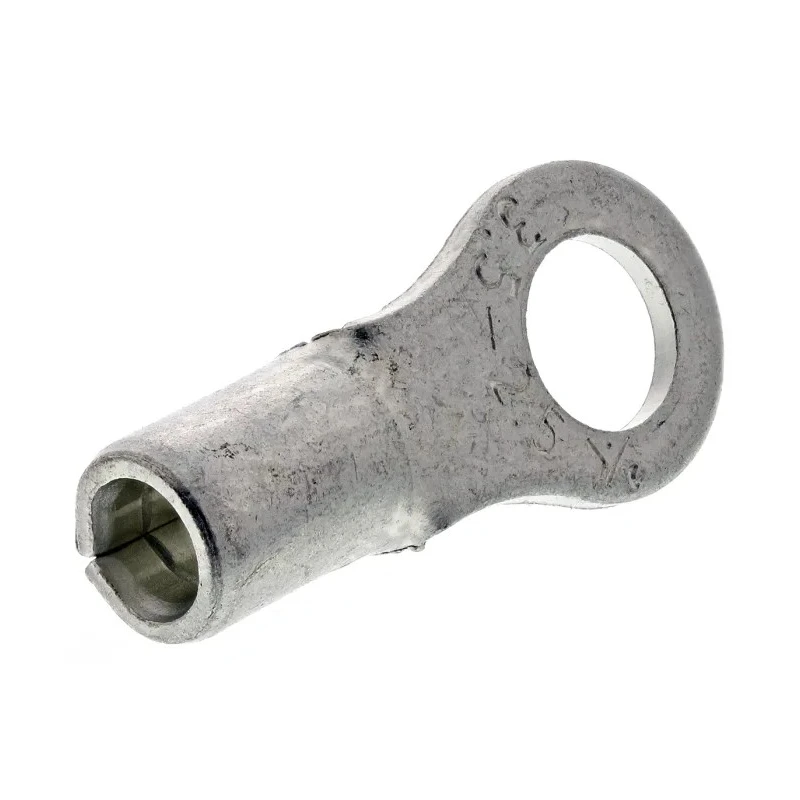

RS PRO Uninsulated Ring Terminal M3.5 Stud Size Compatible with 16 AWG to 14 AWG Wire 208-2638
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| THICKNESS | 0.8mm |
| Model | 208-2638 |
| Insulation | Uninsulated |
| Overall Length | 19.6mm |
| Contact Material | Copper |
| Maximum Operating Temperature | 75°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 6.6mm |
| Inner Ring Diameter | 3.7mm |
| Stud Size | M3.5 |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
| RS PRO Uninsulated Ring Terminal, M4 Stud Size 16 AWG 14 AWG Wire SizeBrand | RS PRO |
Key Features
- Constructed with high conductivity copper material and tin plating for corrosion resistance.
- Features a one-piece closed barrel design with a butted seam to ensure secure and durable crimp connections.
- Suitable for use in industrial control systems, automotive applications, communication equipment, and domestic appliances.
- Uninsulated design permits use where inadvertent short circuit risk is minimal.
- Supports wire sizes from 1.5mm² to 2.5mm² with overall length of 19.6 mm for compact installation.
- Maximum operating temperature rating of 75°C providing reliable performance under typical conditions.
- Facilitates easy wire insertion with its funnel-shaped internal barrel design.
- Manufactured in Taiwan, Province Of China ensuring quality assurance.
Product Description
RS PRO 208-2638 Uninsulated Ring Terminal is a high-quality crimp ring terminal suitable for connecting electrical cables to studs or posts on components such as battery terminals. This ring terminal is manufactured in one piece from conductive copper with tin plating that provides superior corrosion resistance and facilitates soldering. The closed barrel design with a butted seam prevents splitting during crimping, ensuring a reliable electrical connection on wires sized between 16 AWG and 14 AWG (1.5 mm² to 2.5 mm²).
Its compact overall length of 19.6 mm and outer ring diameter of 6.6 mm makes it ideal for use in confined electrical installations. The uninsulated construction is ideal for environments where accidental short circuits are not a concern. This terminal complies with RoHS regulations and meets ANSI/ESD S20.20:2021 electrostatic control standards, supporting applications in industrial controls, manufacturing machinery, automotive systems, communication devices, power supply units, and household electrical appliances.
The copper body and tin plating ensure efficient conductivity and durability under a maximum operating temperature of 75°C. The funnel-shaped internal barrel facilitates quick and easy wire insertion which, when crimped with appropriate tools, offers a secure and long-lasting connection. The terminal is precision engineered for durability and consistent performance.
High conductivity copper construction with tin plating. One-piece closed barrel with a butted seam to prevent barrel splitting. Supports wire sizes 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²). Compact overall length of 19.6 mm and M3.5 stud size.
Uninsulated for applications where insulation is not required. Certified RoHS compliant and ANSI/ESD S20.20:2021 electrostatic standard. Maximum operating temperature of 75°C. Easy wire insertion via funnel-shaped internal barrel.
This ring terminal is a reliable solution for electrical wiring requirements in industrial, automotive, laboratory, manufacturing, and commercial environments. Browse RS PRO products and Ring Terminals for professional electrical connection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this uninsulated ring terminal is 75°C.
This ring terminal supports wire sizes from 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²).
The overall length of this terminal is 19.6 mm, making it suitable for compact installations.
It is constructed from high conductivity copper with tin plating for corrosion resistance.
The stud size for this ring terminal is M3.5.
This model is uninsulated, making it suitable for applications where the risk of inadvertent short circuits is minimal.
This terminal complies with RoHS regulations and meets ANSI/ESD S20.20:2021 electrostatic control standards.
The outer ring diameter of this terminal is 6.6 mm.
The funnel-shaped internal barrel design allows for easy and quick wire insertion.
This ring terminal is manufactured in Taiwan, Province of China.
The thickness of this terminal is 0.8 mm.
It is suitable for use in industrial control systems, automotive applications, communication equipment, and domestic appliances.
