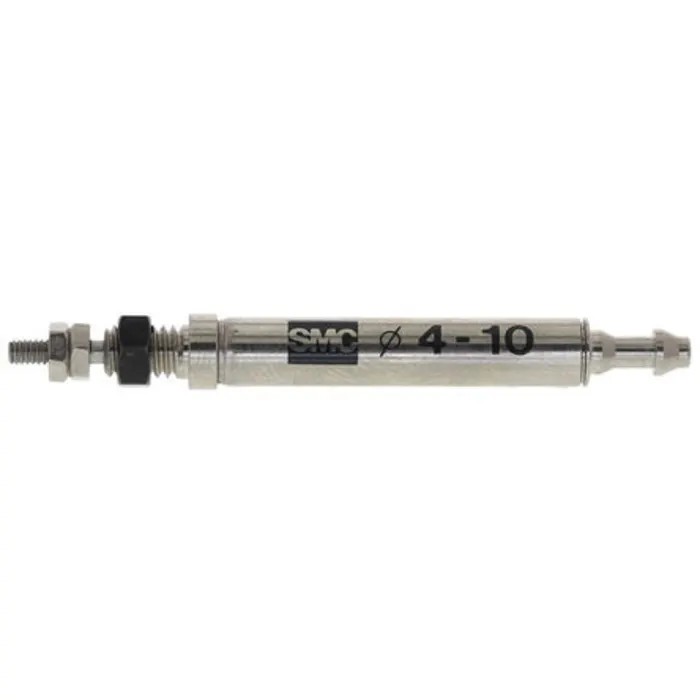

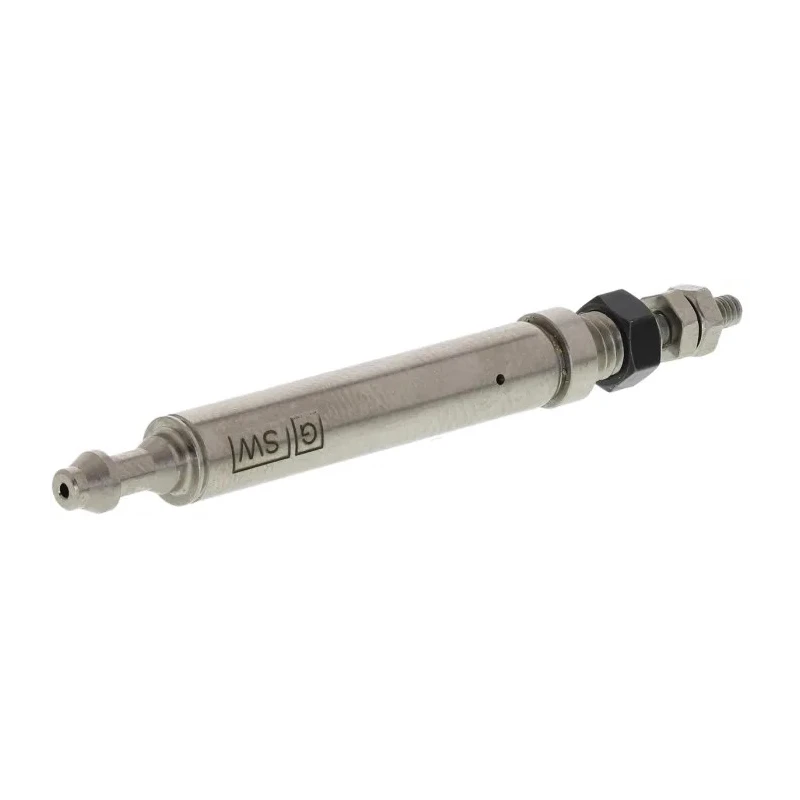

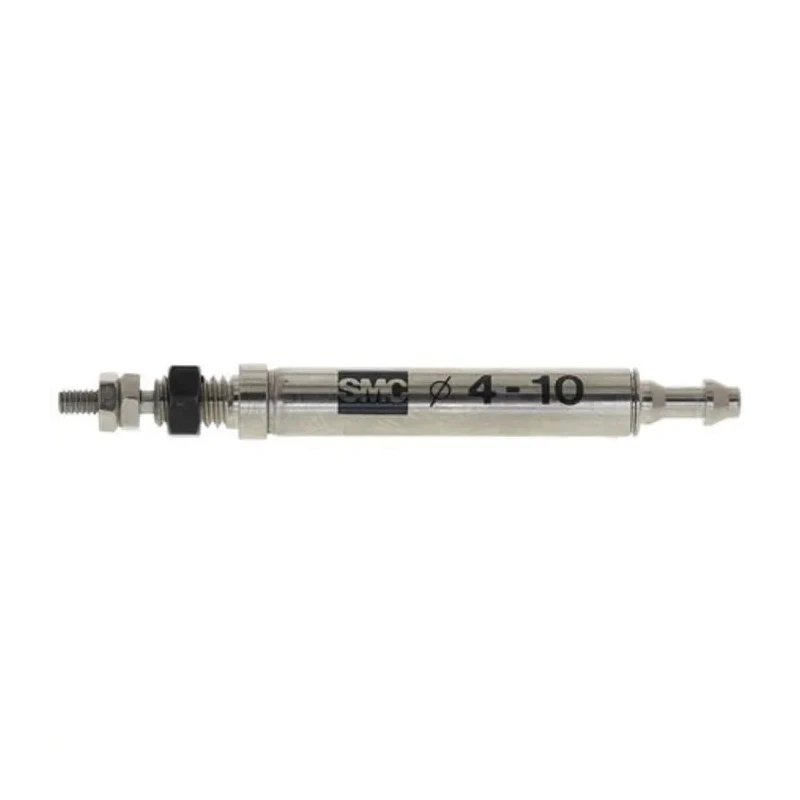

SMC 10 mm Pneumatic Piston Rod Cylinder CJ1 Series Single Acting Spring Retracting Non-Lubricated CJ1B4-10SU4

SMC CJ1B4-10SU4 pneumatic piston rod cylinder from the CJ1 Series is engineered for delicate automation tasks in pneumatic systems across industrial, manufacturing, and laboratory environments. It features a 10 mm stroke length and compact 49 mm total length, making it ideal for installations requiring precise and reliable motion in confined spaces.

This single acting, spring retracting cylinder operates efficiently within an ambient and fluid temperature range of -10°C to +70°C, and can withstand maximum operating temperatures up to 70°C. Its non-lubricated design minimizes maintenance needs and prevents contamination, enhancing durability and performance in diverse industrial conditions.

The piston speed varies from 50 to 500 mm per second, enabling versatile control for automation processes. It is engineered to interface directly with 4 mm outer diameter by 2.5 mm inner diameter tubing, facilitating straightforward pneumatic line connections. The cylinder is tested for pressures up to 10.5 bar, operating optimally between 3 and 7 bar.

Manufactured in Japan, this component meets rigorous quality and reliability benchmarks. While it lacks formal standards or approvals, its design integrity ensures dependable service in pneumatic actuation, positioning it as a suitable solution for industrial automation, assembly machinery, packaging lines, and process control applications.

Single acting cylinder with spring retraction for smooth operation. Compact length of 49 mm suitable for space-constrained setups. Maximum operating temperature up to 70°C for broad industrial environment compatibility. Non-lubricated design reduces maintenance and contamination risks.

Operates within 3 to 7 bar pressure range, tested at 10.5 bar for reliability. Piston speed ranges from 50 to 500 mm/sec ensuring operational flexibility. Compatible with 4 mm OD x 2.5 mm ID pneumatic tubing. Manufactured in Japan to high quality standards.

This Pneumatic Piston Rod Cylinder fits applications in industrial automation, pneumatics & hydraulics, manufacturing lines, laboratories, and other environments where precise, reliable actuation is critical. Browse more pneumatic cylinders within EnvMart's extensive collection for complementary parts and accessories.
