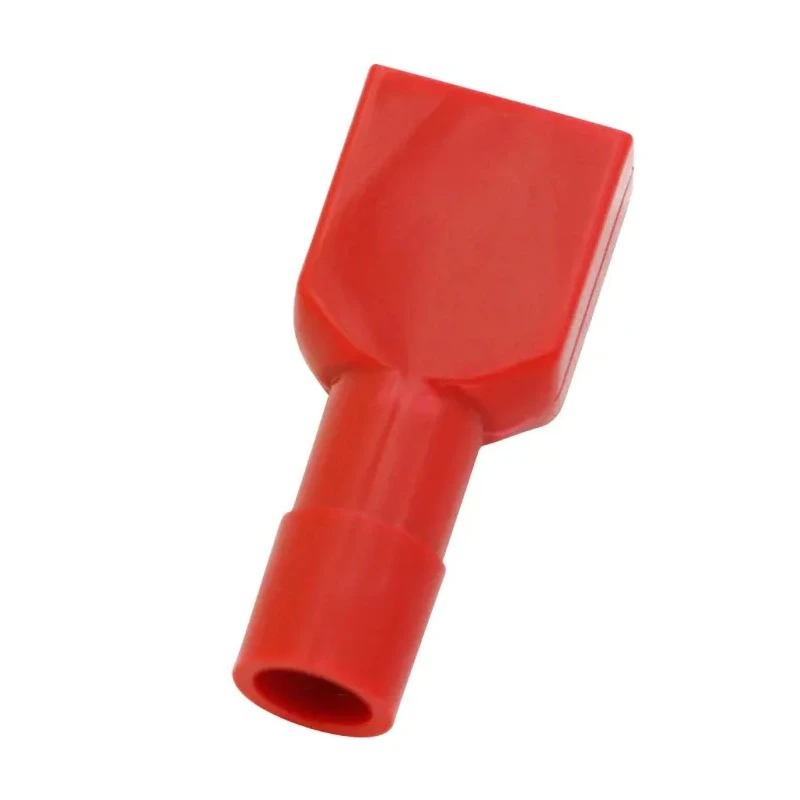

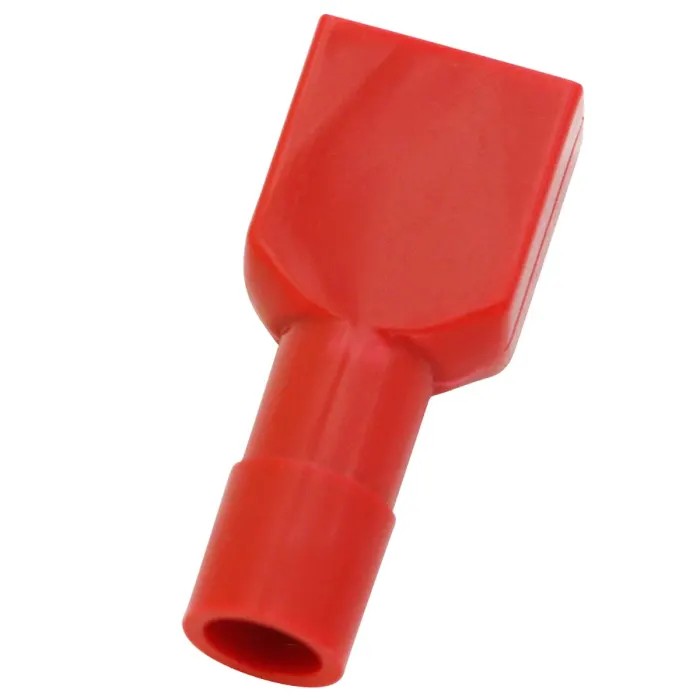

RS Pro Red Insulated Female Spade Connector, Crimp Termination, 0.8 x 6.35 mm Tab Size, 22 AWG to 16 AWG, Vinyl 205-5284
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS Pro |
| Colour | Red |
| Orientation | Straight |
| Model | 205-5284 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 21.5mm |
| Contact Material | Copper, Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 0.8 x 6.35 mm |
Key Features
- Constructed from high-quality brass with tin-plated copper contact material.
- Insulated with durable vinyl material ensuring electrical safety.
- Crimp termination type enables easy and reliable wire connection.
- Suitable for wire sizes 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²).
- Red color coding for easy identification and professional electrical installations.
- Straight orientation supports standard wiring layouts.
- Overall connector length is 21.5 mm for compact installations.
- Compatible with 6.35 mm wide and 0.8 mm thick tab receptacles.
Product Description
RS Pro 205-5284 insulated female spade connector is engineered for reliable and secure electrical connections. It features a crimp termination design, suitable for wire sizes ranging from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²) and a tab size of 0.8 x 6.35 mm, ensuring compatibility with standard spade terminals.
The connector's contact area is crafted from high-quality brass plated with tin for excellent conductivity and corrosion resistance. The insulation is made from robust vinyl material, offering electrical insulation and mechanical protection during usage.
The red color coding aids in quick wire size identification, improving installation efficiency and reducing wiring errors. Its straight orientation and overall length of 21.5 mm make it suitable for various compact and standard electrical assemblies.
These female spade connectors are widely used in industrial machinery, automotive wiring, communication devices, HVAC systems, and power supplies. Their durable construction ensures a secure and permanent electrical connection in demanding environments.
Installation involves sliding a compatible wire into the connector tunnel and applying a crimping tool to achieve a firm union. Ensuring no wire movement after crimping is recommended for electrical safety.
Constructed from high-quality brass with tin-plated copper contact material. Insulated with durable vinyl material ensuring electrical safety. Crimp termination type enables easy and reliable wire connection. Suitable for wire sizes 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²).
Red color coding for easy identification and professional electrical installations. Straight orientation supports standard wiring layouts. Overall connector length is 21.5 mm for compact installations. Compatible with 6.35 mm wide and 0.8 mm thick tab receptacles.
Ideal for automotive, industrial, communication equipment, HVAC, and power supply applications. Manufactured under RS Pro brand known for quality and reliability.
RS Pro is a trusted brand delivering a wide range of high-quality electronic components and connectors rigorously tested to meet industry standards. For comprehensive solutions, explore the full range of RS Pro Spade Connectors and related electrical components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is suitable for wire sizes ranging from 22 AWG to 16 AWG, which corresponds to 0.5 mm² to 1.5 mm².
The overall length of this connector is 21.5 mm, making it suitable for compact installations.
It features a crimp termination type, which allows for easy and reliable wire connection.
The contact material is made of copper and brass, while the insulation is made from durable vinyl material.
The tab size for this model is 0.8 x 6.35 mm, compatible with standard spade terminals.
This unit has a straight orientation, which supports standard wiring layouts.
It features red color coding for easy identification during installations.
The country of origin for this product is Taiwan.
The contact area is plated with tin, which enhances conductivity and provides corrosion resistance.
It is widely used in automotive wiring, industrial machinery, communication devices, HVAC systems, and power supplies.
Installation involves sliding a compatible wire into the connector tunnel and using a crimping tool to secure the connection.
The insulation material is made of vinyl, providing electrical insulation and mechanical protection.
