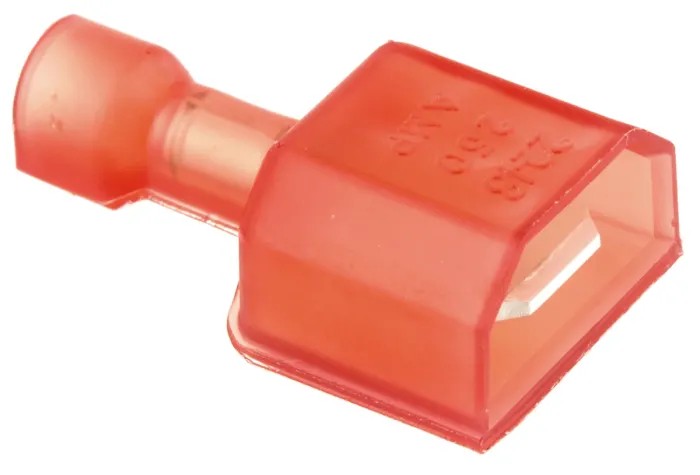

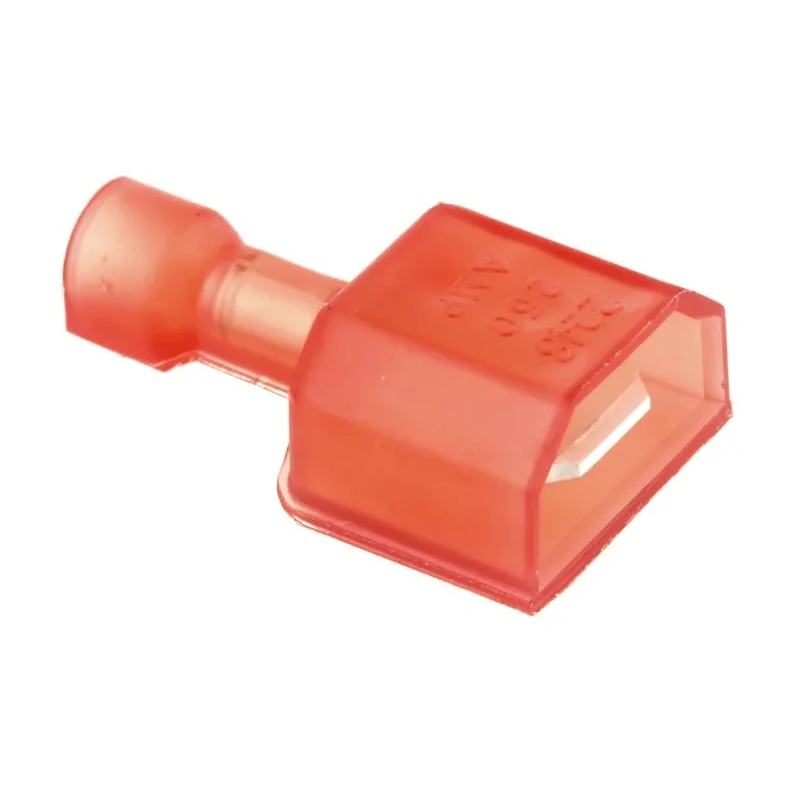

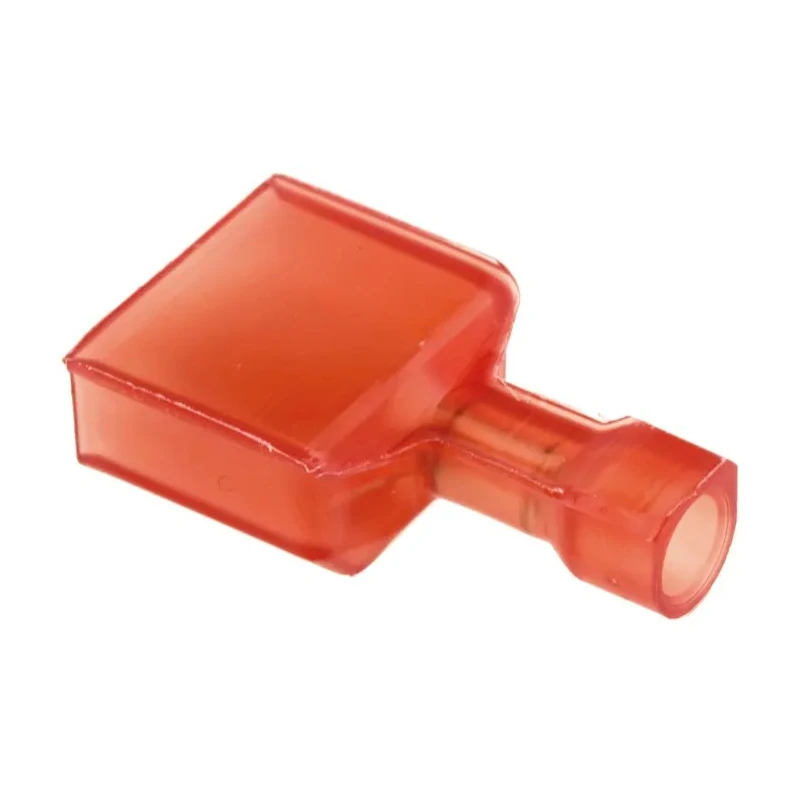

TE Connectivity Ultra-Fast .250 Red Insulated Male Spade Connector, Crimp, 6.3 x 0.8 mm Tab Size 22 AWG to 18 AWG 2-520103-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Gender | Male |
| Insulation | Insulated |
| Overall Length | 21.97mm |
| Contact Material | Brass |
| Series | Ultra-Fast .250 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.3 x 0.8 mm |
Key Features
- Constructed with brass contact material and tin plating for excellent conductivity and corrosion resistance.
- Insulated with UL 94 V-2 nylon to prevent shock and short circuits.
- Designed for 6.3 mm tab width and 0.8 mm tab thickness for secure connections.
- Supports wire sizes from 0.3mm² to 0.8mm² for versatile electrical applications.
- Overall length of 21.97 mm ensures ease of handling and compatibility.
- Red color coding for easy identification in wiring assemblies.
- Straight orientation facilitates straightforward installation.
- Meets requirements for 600V electrical applications ensuring safety and durability.
Product Description
TE Connectivity 2-520103-2 Ultra-Fast .250 Red Insulated Male Spade Connector is engineered for precise crimp termination of wires sized from 22 AWG to 18 AWG (0.3mm² to 0.8mm²). The connector features an ultra-fast tab with dimensions of 6.3 mm width and 0.8 mm thickness, providing reliable and secure connections in electrical circuits.
The connector’s brass contact material is plated with tin to enhance conductivity and profile corrosion resistance during long-term operation. Its housing is made from UL 94 V-2 type nylon insulation, designed to fully enclose the contact and prevent electrical shock or short circuits, making it suitable for use in 600V rated applications.
The red insulation color aids in quick wire identification during assembly and maintenance processes. With a straight orientation and an overall length of 21.97 mm, this component is compatible with numerous electronic and electrical power connector configurations.
Designed for dependable performance in industrial, commercial, and electronic assembly environments, this Spade Connector delivers consistent electrical conductivity and mechanical strength. It is ideal for use in electrical panels, wiring harnesses, control cabinets, and other power connector systems requiring fast and safe wiring solutions.
Constructed with brass contact material and tin plating for excellent conductivity and corrosion resistance. Insulated housing made from UL 94 V-2 nylon to prevent shock and short circuit risks. Supports wire sizes 22 AWG to 18 AWG (0.3mm² to 0.8mm²) for flexible application.
Red insulation enables quick wire identification. Straight orientation allows ease of installation. Overall length of 21.97 mm ensures compatibility with standard Ultra-Fast .250 series terminals. Suitable for use in 600V electrical systems, enhancing safety.
Reliable performance for industrial, commercial, and electronic uses. Explore the extensive range of TE Connectivity products on EnvMart for quality connectors supporting diverse electronic and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 22 AWG to 18 AWG, which corresponds to 0.3mm² to 0.8mm².
The tab size of this connector is 6.3 mm in width and 0.8 mm in thickness.
The overall length of this connector is 21.97 mm.
The contact material is brass, which is plated with tin to enhance conductivity and corrosion resistance.
It features insulation made from UL 94 V-2 nylon, designed to prevent electrical shock and short circuits.
This model has a straight orientation, facilitating straightforward installation.
It is suitable for use in electrical panels, wiring harnesses, control cabinets, and other power connector systems requiring fast and safe wiring solutions.
This spade connector is rated for use in 600V electrical applications, ensuring safety during operation.
The red insulation aids in quick identification of wires during assembly and maintenance processes.
This model uses crimp termination for secure connections.
The connector is manufactured in the United States.
This connector is designed as a male spade connector.
