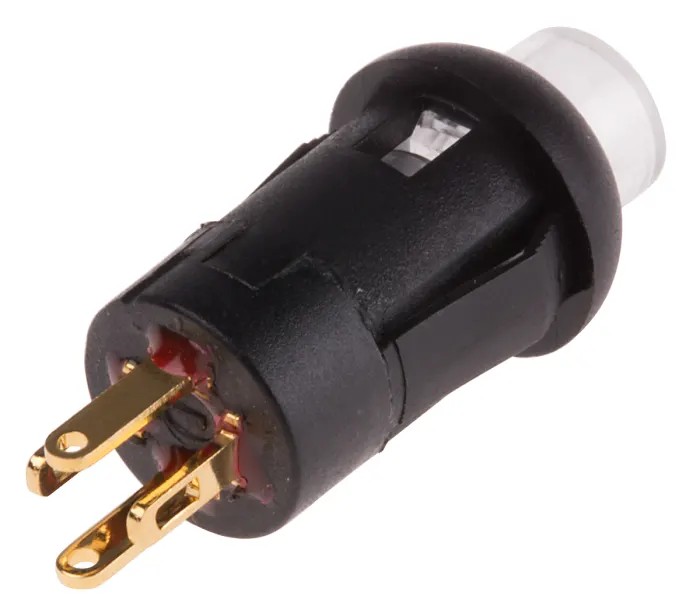

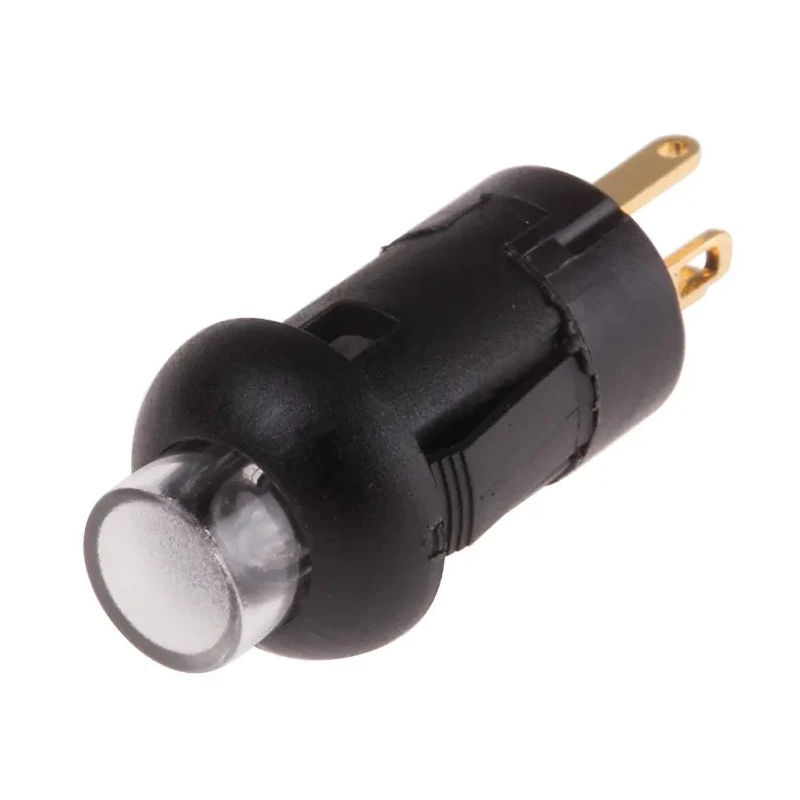

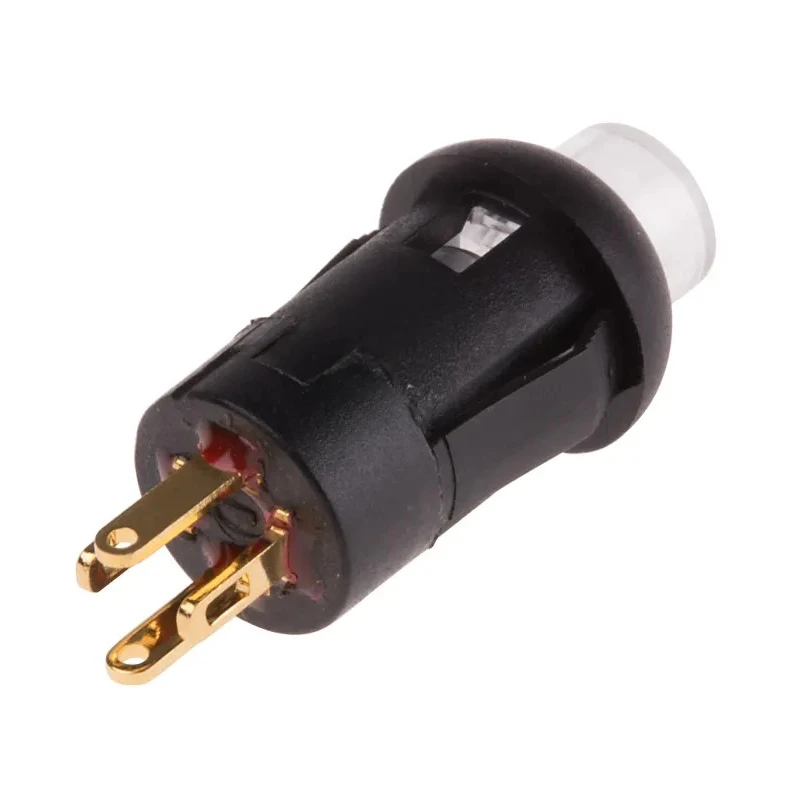

RS PRO Illuminated Miniature Push Button Switch Momentary PCB Mount 8 mm Cutout SPST Green LED 30V DC 30V AC 8207533P

Name: RS PRO Illuminated Miniature Push Button Switch Momentary PCB Mount 8 mm Cutout SPST Green LED 30V DC 30V AC 8207533P
Brand: RS PRO
SKU: 107602
Price: 457.07 INR
Availability: InStock



Category Push Button Switches & Components Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	8207533P
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	SPST
Panel Cutout Size	8 mm
Terminal type	PCB Pin
LED Colour	Green
Switch Operation	Momentary
Contact DC Voltage	30V dc
Actuator Style	Cap
Switch Contact Current	100mA
Operating Force	250±100gf (gram-force)
Contact AC Voltage	30V ac
Total travel	1.2±0.3mm

Key Features

The switch features a green LED illumination for clear visual feedback.
Designed for a contact voltage rating of 30 V DC and 30 V AC.
Equipped with a cap-style actuator and a travel distance of 1.2±0.3 mm.
Operating force is 250±100 gram-force providing tactile switch response.
Supports 100 mA switch contact current for reliable operations.
Made using high-quality Nylon 6/6 housing with gold-plated copper alloy terminals.
Maximum operating temperature of 85°C suitable for industrial use.
Longevity provided by 50,000 operational cycles.

Product Description

RS PRO 8207533P Illuminated Miniature Push Button Switch is a high-quality momentary switch designed specifically for PCB mounting with an 8 mm panel cutout size. Featuring an SPST contact configuration and a green LED for illumination, this switch provides clear operation feedback in electrical and electronic control systems. It operates at 30 V DC and 30 V AC voltages, suitable for low power control applications.

The switch has a cap-style actuator with a total travel of 1.2±0.3 mm and requires an operating force of 250±100 gf, ensuring a responsive tactile feel. Its compact design and durable construction include a Nylon 6/6 housing and copper alloy terminals plated with gold for corrosion resistance and enhanced conductivity. It supports a maximum operating temperature of 85°C, accommodating demanding industrial environments.

With a rated contact current of 100 mA and a robust operating life of 50,000 cycles, this switch offers longevity and consistent performance. Commonly employed in test equipment, telecommunications, networking, and handheld appliance controls, it is an excellent choice for compact and reliable switching in industrial and commercial electronic assemblies.

The RS PRO brand is recognized worldwide for its high reliability and rigorous quality standards, ensuring products meet demanding industry requirements. This illuminated push button switch further delivers versatility with its green LED illumination and easy panel mounting capability.

The switch features a green LED illumination for clear visual feedback. Designed for a contact voltage rating of 30 V DC and 30 V AC. Equipped with a cap-style actuator and a travel distance of 1.2±0.3 mm. Operating force is 250±100 gram-force providing tactile switch response.

Supports 100 mA switch contact current for reliable operations. Made using high-quality Nylon 6/6 housing with gold-plated copper alloy terminals. Maximum operating temperature of 85°C suitable for industrial use. Longevity provided by 50,000 operational cycles.
