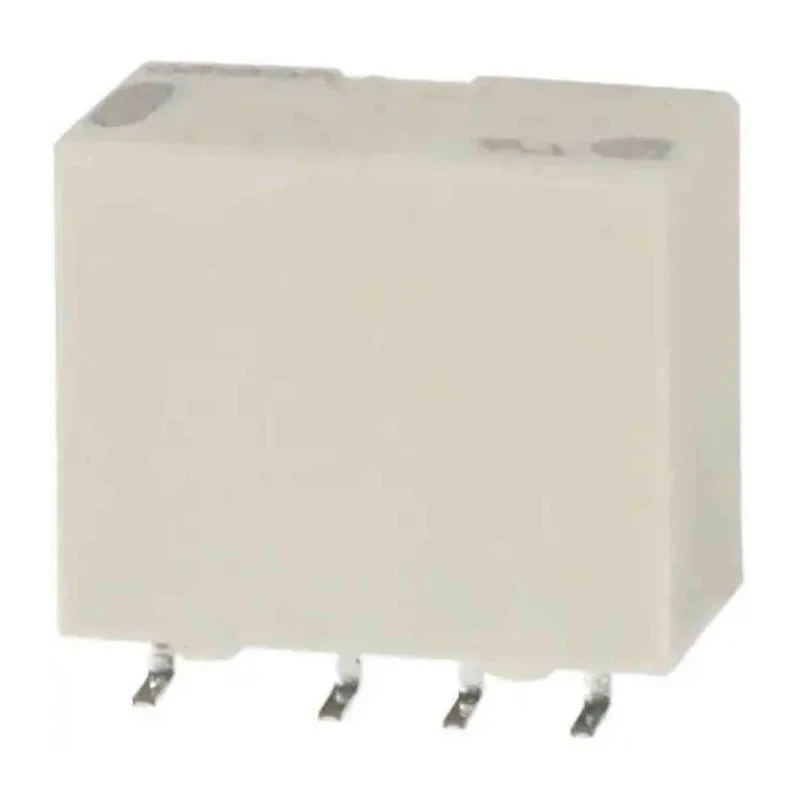

Omron Surface Mount Signal Relay 5V DC Coil 1A DPDT Compact Dimensions G6J-2FL-Y DC5

Free Delivery in India | Lowest Global Shipping Charges

Omron Surface Mount Signal Relay 5V DC Coil 1A DPDT Compact Dimensions G6J-2FL-Y DC5

Name: Omron Surface Mount Signal Relay 5V DC Coil 1A DPDT Compact Dimensions G6J-2FL-Y DC5
Brand: Omron
SKU: 107492
Price: 3.55 USD
Availability: InStock



Category Signal Relay Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	9.9mm
Length	10.6mm
Model	G6J-2FL-Y DC5
Width	5.7mm
Mount Type	Surface
Contact Material	Gold Plated
Series	G6S
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	1A
Terminal type	Surface Mount
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	173Ω
Coil Voltage	5V dc
Switching DC Voltage	110V dc
Switching AC Voltage	125V ac
Coil Power	140mW

Key Features

Compact size with dimensions of 10.6mm length, 9.9mm height, and 5.7mm width.
Surface mounting design suitable for high-density PCB layouts.
Operating temperature range from -40°C to 85°C ensuring reliability in harsh conditions.
Gold plated bifurcated crossbar contacts providing low contact resistance of 100mΩ.
Coil resistance of 173Ω and coil power rating of 140mW for energy-efficient operation.
Dielectric strength of 1500 VAC and impulse withstand voltage of 2500 V (2 x 10μs) for robust isolation.
Suitable for industrial, electrical automation, HVAC, and control circuit applications.
RoHS compliant and manufactured in China for global standards compliance.

Product Description

Omron G6J-2FL-Y DC5 Surface Mount Signal Relay is engineered to deliver reliable switching performance with a 5V DC coil and a compact surface mount form factor. This relay includes a double-pole double-throw (DPDT) contact configuration capable of switching both AC and DC loads safely and efficiently. It is designed for use in various industrial and electrical automation applications requiring compact and energy-saving relays.

The relay dimensions are 10.6mm in length, 9.9mm in height, and 5.7mm in width, supporting high-density mounting on printed circuit boards. The coil resistance is 173Ω and consumes only 140mW of power, featuring a single winding latching type which further reduces energy consumption during operation. Gold plated bifurcated crossbar contacts minimize contact resistance to 100mΩ, ensuring low signal loss and high reliability. This product withstands operating temperatures between -40°C and 85°C making it suitable for demanding environments.

Electrical safety is ensured with a dielectric strength rating of 1500 VAC and an impulse withstand voltage of 2500 V for 2 microseconds, providing protection against electrical surges. The relay supports switching of currents up to 1A, switching voltages up to 125V AC and 110V DC. Omron's RoHS compliance confirms adherence to environmental and safety standards.Common industrial use cases encompass automation controls, HVAC systems, manufacturing equipment signal conditioning, and other electrical control panels requiring precise and durable relay components.

Compact 5V DC coil surface mount relay with DPDT contacts. Operates reliably at temperatures from -40°C to 85°C. Gold plated contacts reduce resistance and improve conductivity. Single winding latching coil saves energy in continuous operation.

High dielectric strength and impulse withstand voltage for safety. Ideal for industrial, laboratory, HVAC, and automation control applications. RoHS compliant ensuring environmentally safe usage. Product manufactured in China following quality standards.

Explore more high-quality relays and automation components directly in the Electronics & Electricals category on EnvMart to meet all your industrial control requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a double-pole double-throw (DPDT) contact configuration, allowing it to switch both AC and DC loads safely and efficiently.

The relay has compact dimensions of 10.6mm in length, 9.9mm in height, and 5.7mm in width, making it suitable for high-density PCB layouts.

The G6J-2FL-Y DC5 operates with a 5V DC coil and has a coil power rating of 140mW, ensuring energy-efficient operation.

It can switch currents up to 1A, which is suitable for various applications in industrial and electrical automation.

The relay operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.

It features a low contact resistance of 100mΩ, which helps minimize signal loss and enhance reliability.

The relay has a dielectric strength rating of 1500 VAC and an impulse withstand voltage of 2500 V for 2 microseconds, providing robust electrical isolation.

Yes, this relay is RoHS compliant, ensuring it adheres to environmental and safety standards.

It is suitable for various applications, including industrial automation, HVAC systems, and control circuit applications.

This model utilizes a surface mount design, making it compatible with high-density PCB layouts.

The coil resistance is 173Ω, which contributes to its energy-efficient operation.

The relay features gold plated bifurcated crossbar contacts, which help reduce contact resistance and improve conductivity.
