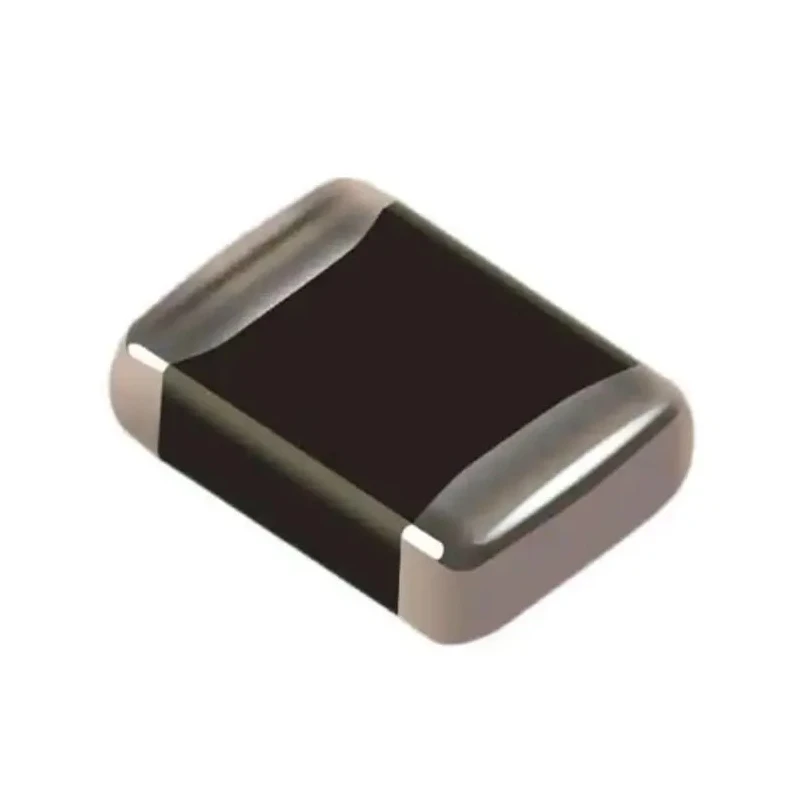

Bourns ZVHT Varistor 4 nF 10 A Clamping Voltage 77 V Varistor Voltage 47 V 2220 Surface Mount ZV30K2220122NIR1HT
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| THICKNESS | 1.25mm |
| Length | 5.7mm |
| Model | ZV30K2220122NIR1HT |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ZVHT |
| Energy Rating | 12.2J |
| Maximum Operating Temperature | 150°C |
| Capacitance | 4nF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 38V dc |
| Standards/Approvals | UL, RoHS |
| Package/Case | 2220 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 30V ac |
| Clamping Voltage VC | 77V |
| Clamping Current | 10A |
| Maximum Surge Current | 1.2kA |
| Varistor Voltage | 47 V |
Key Features
- Features a capacitance of 4 nF for low voltage application protection.
- Supports clamping current of 10 A and maximum surge current of 1.2 kA.
- Offers clamping voltage at 77 V to limit transient voltages.
- Compact 2220 package with surface mount termination for PCB assembly.
- Rated for maximum AC voltage of 30 V and DC voltage of 38 V.
- Operates reliably from -55°C to 150°C temperature range.
- Energy rating of 12.2 joules for high energy surge absorption.
- Compliant with UL and RoHS standards ensuring safety and environmental compliance.
Product Description
Bourns ZV30K2220122NIR1HT Varistor is a low voltage, multi-layered surface mount device with a capacitance of 4 nF and a clamping current of 10 A. It provides effective protection against voltage surges and transient spikes in sensitive electronic circuits.
Designed in a compact 2220 package with dimensions 5.7 mm length, 5 mm depth, and 1.25 mm thickness, this varistor is optimized for surface mount technology (SMT) applications.
It features a clamping voltage of 77 V and varistor voltage of 47 V, suitable for limiting voltage surges, with maximum rated AC voltage of 30 V and DC voltage of 38 V. The device withstands surge currents up to 1.2 kA with an energy rating of 12.2 joules, ensuring robust protection.
Operational temperature ranges from -55°C to 150°C, making it suitable for harsh industrial and electronic environments. The varistor complies with UL and RoHS standards, confirming its reliability and environmental safety.
4 nF capacitance for handling low voltage surges. 10 A clamping current for high surge protection. 77 V clamping voltage to protect circuit components. Surface mount device in 2220 package for PCB integration. High energy rating of 12.2 joules for sustained surge absorption.
Wide operational temperature range from -55°C to 150°C. UL and RoHS compliant for safety and environmental standards. This Varistor is ideal for use in industrial electronics, power supplies, surge protection circuits, and sensitive electronic equipment requiring reliable overvoltage protection.
Explore more electronics components and surge protection devices at EnvMart to support your industrial and manufacturing needs with quality assured parts by Bourns.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this varistor is 77 V, which helps limit transient voltages in electronic circuits.
It has a capacitance rating of 4 nF, suitable for low voltage application protection.
This model can withstand a maximum surge current of 1.2 kA, providing robust protection against voltage surges.
The dimensions of the 2220 package are 5.7 mm in length, 5 mm in depth, and 1.25 mm in thickness.
It operates reliably within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The maximum DC voltage rating for this varistor is 38 V.
Yes, it is compliant with UL and RoHS standards, ensuring safety and environmental compliance.
This varistor has an energy rating of 12.2 joules, which allows for effective surge absorption.
It uses surface mount termination, optimized for PCB assembly.
The clamping current rating for this model is 10 A, providing effective protection against voltage surges.
The varistor voltage of this device is 47 V, which is essential for limiting voltage surges.
It is packaged in tape and reel format, suitable for automated assembly processes.
