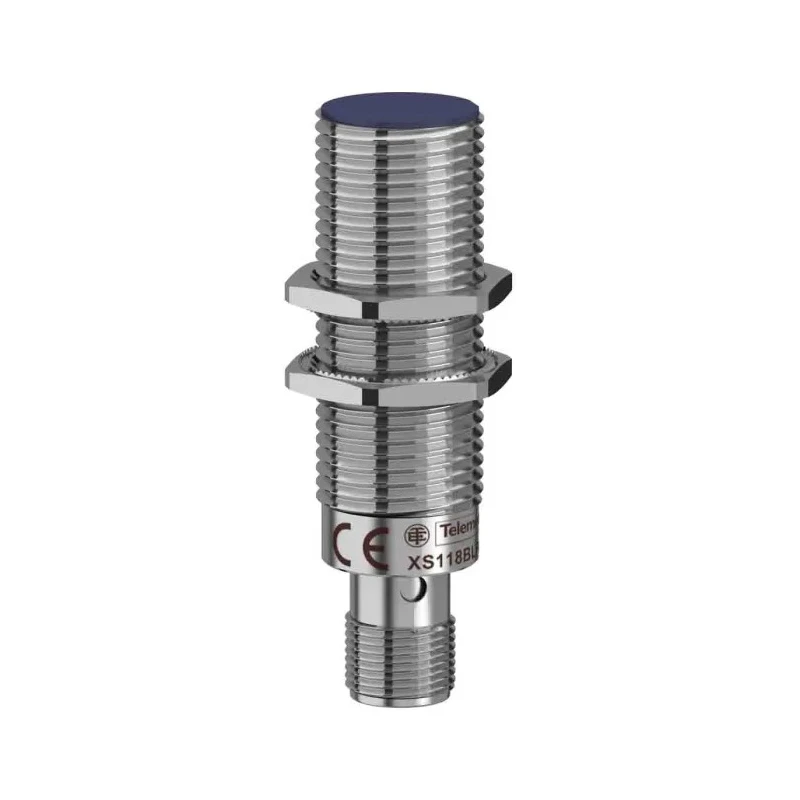

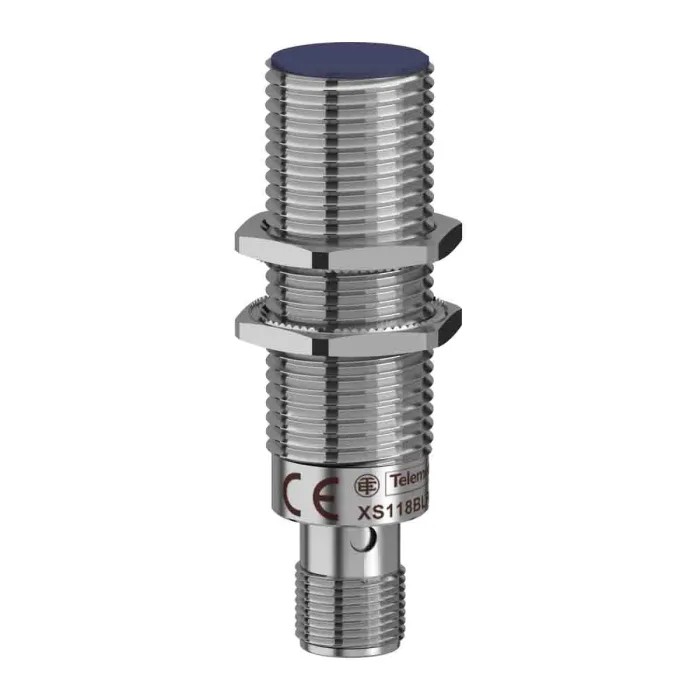

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 24 V dc 200mA XS118BLPAM12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 64mm |
| Model | XS118BLPAM12 |
| Depth | 8mm |
| IP Rating | IP67 |
| Width | 8mm |
| Mount Type | Flush |
| Housing Material | Brass |
| Output type | PNP |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin M12 Male Connector |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 24V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | CE, CSA, UL |
| Maximum Supply Voltage | 36V |
| Materials Detected | Metal |
| Maximum Detection | 5mm |
Key Features
- Equipped with a threaded barrel design for easy installation.
- Operates at a maximum supply voltage of 36V and maximum DC voltage of 24V dc.
- Compact dimensions with 64 mm length, 8 mm width, and 8 mm depth.
- Made with nickel-plated brass housing for durability and corrosion resistance.
- Provides metal detection with a maximum sensing distance of 5 mm.
- Features IP67 protection rating suitable for harsh industrial environments.
- Compatible with 4-pin M12 male connector terminals.
- Functional operating temperature range from -25°C to 70°C.
Product Description
Telemecanique Sensors XS118BLPAM12 is a high-performance threaded barrel inductive proximity sensor designed for industrial automation and control applications. Featuring an M18 x 1 threaded barrel body and a flush mount type, this sensor delivers reliable metal object detection with a maximum sensing distance of 5 mm. It operates with a PNP discrete output and supports a supply voltage up to 36V, with a maximum DC voltage of 24V dc and a switching current of 200mA.
The sensor housing is crafted from nickel-plated brass offering robust protection and durability, rated at IP67 for dust-tight and water immersion resistance suitable for harsh environments. It features a compact size with dimensions of 64 mm length, 8 mm width, and 8 mm depth, and utilizes a 4-pin M12 male connector for electrical connection.
Operating temperature ranges from -25°C to 70°C, supporting stable switching frequencies up to 2 kHz for responsive operation in demanding automation tasks. The XS118BLPAM12 sensor complies with CE, CSA, and UL standards, ensuring quality and safety in diverse industrial environments.
Applications include metal detection for railway systems, mobile equipment, machine tools, packaging, robotics, material handling, and manufacturing processes. It is ideal for environments requiring non-contact detection of metal objects resilient to oil, dirt, and vibrations.
Thread size: M18 x 1 threaded barrel for secure mounting. Detection capability for metal objects with 5 mm sensing distance. Rated to IP67 to withstand dust and water ingress. Durable brass housing with nickel plating for corrosion resistance.
PNP output type compatible with PLCs and industrial controllers. Operating temperature range ensures reliable performance in diverse conditions. High switching frequency supports rapid sensing cycles. Includes 4-pin M12 male connector for easy installation.
Certified for safety and quality by CE, CSA, and UL organizations.
This inductive Proximity Sensor is part of the Telemecanique Sensors XS series, known for industrial-grade performance and reliability. Perfect for automated control systems across manufacturing, logistics, and material handling sectors.
Explore more high-precision sensors and industrial automation products in the Sensors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sensing distance of this model is 5 mm for metal detection.
This unit has dimensions of 64 mm in length, 8 mm in width, and 8 mm in depth.
It features a PNP output type, which is compatible with PLCs and industrial controllers.
The functional operating temperature range is from -25°C to 70°C.
The maximum supply voltage for this proximity sensor is 36V.
It utilizes a 4-pin M12 male connector for electrical connection.
This model is designed to detect metal objects.
The maximum switching frequency is 2 kHz, allowing for rapid sensing cycles.
The housing is made of nickel-plated brass, providing durability and corrosion resistance.
It has an IP67 rating, making it suitable for harsh environments by being dust-tight and resistant to water immersion.
The thread size of this proximity sensor is M18 x 1, designed for secure mounting.
This model complies with CE, CSA, and UL standards, ensuring quality and safety in industrial applications.
