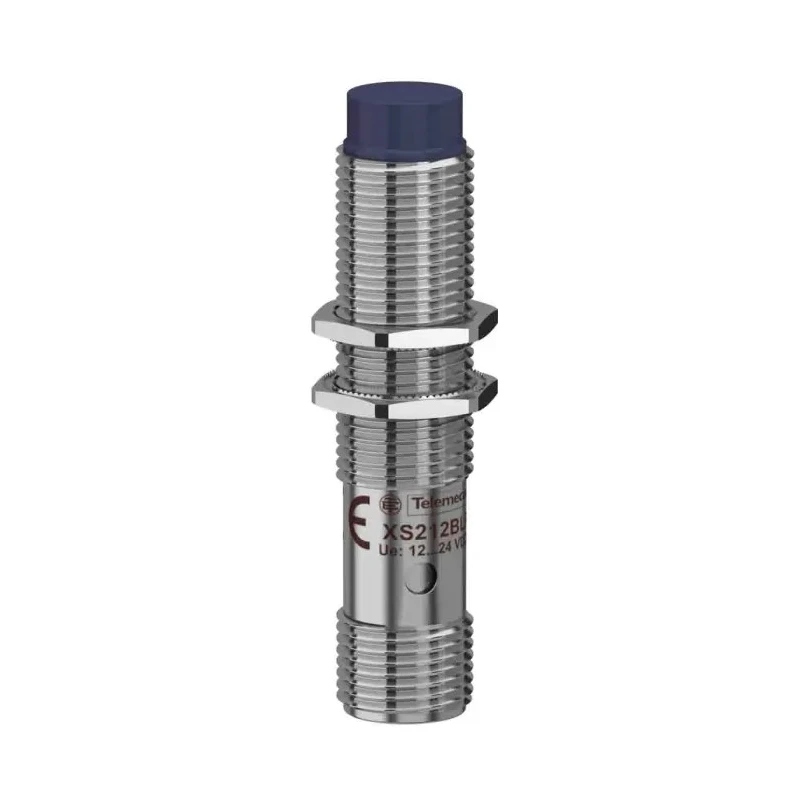

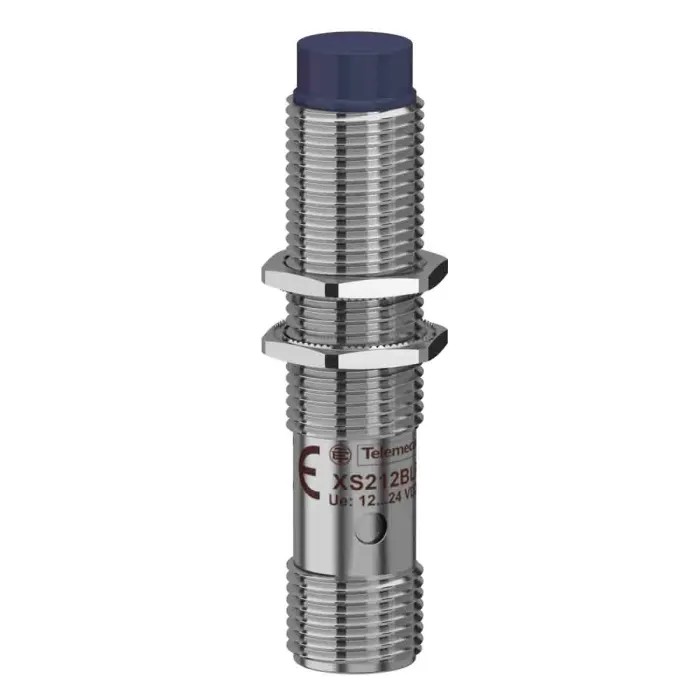

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M12 x 1, PNP Output, 24 V dc 200mA, 4 mm XS212BLPAM12

Telemecanique Sensors XS212BLPAM12 is a general-purpose threaded barrel inductive proximity sensor designed for reliable detection of metal objects in a variety of automation and control applications. This sensor features an M12 x 1 cylindrical barrel design constructed of nickel-plated brass and a PBT sensing face, combining durability with precision.

Powered by a 24 V dc supply with reverse polarity protection, it provides a PNP output with a maximum switching current of 200mA, suitable for interfacing with industrial control systems. The sensor is non-flush mountable with a threaded length of 29 mm and overall length of 55 mm, facilitating straightforward installation.

The device is unshielded, allowing for a nominal sensing distance of 4 mm, appropriate for detection of metal targets within that range. Its IP67 rating ensures protection against ingress of dust and water jets, making it suitable for use in harsh industrial environments including manufacturing, material handling, and robotics.

It operates effectively between -25°C and 70°C, supporting continuous operation in varied ambient conditions. The sensor features a 4-pin male M12 connector for quick and secure electrical connection. Compliance with UL, RoHS, and CE standards reinforces its suitability for industrial and commercial applications.

Applications of this inductive sensor include railway systems, mobile equipment, lifts and escalators, hoisting, packaging, pharmaceutical, food and beverage, material working, and machine tools. The XS series is recognized for its robust performance and versatility in detecting metal objects in environments exposed to oil, dirt, vibration, and shocks.

Thread size: M12 x 1. Body length: 52 mm, overall length: 55 mm. Output type: PNP, discrete 3-wire. Maximum switching frequency: 1 kHz. Housing material: brass with nickel plating and PBT front. Protection class IP67 ensuring dust tight and water jet protection.

Operating temperature: -25°C to 70°C. Switching current: 200mA maximum. Non-flush mountable design. Complies with UL, RoHS, CE standards.

This inductive Proximity Sensor is an excellent choice for industrial automation, manufacturing processes, robotics, and safety applications requiring reliable metal object detection. Explore more sensors and automation devices in EnvMart’s Electronics & Electricals category.
