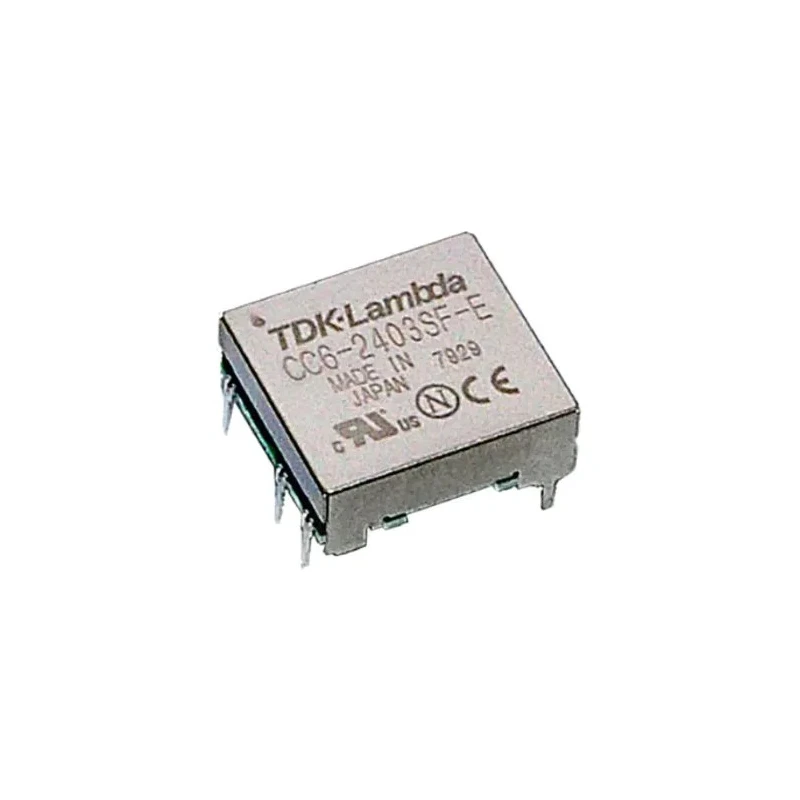

TDK-Lambda CC-E DC/DC Converter, 12V DC Output, 250 mA, 18V Max Input, Surface Mount, 6W Power, -40°C to 85°C CC6-1212DR-E
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda CC-E DC/DC Converter, 12V dc/ 250 mA, 1 |
| Brand | TDK-Lambda |
| Efficiency | 0.85% |
| Length | 22.86mm |
| Model | CC6-1212DR-E |
| Depth | 21.1mm |
| Gross Weight | 5.8g |
| Width | 22.8mm |
| Mount Type | Surface |
| Series | CC-E |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 18V |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 500V |
| Output Current 2 | -0.25A |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V dc |
Key Features
- The converter offers isolation voltage of 500V ensuring electrical safety.
- Compact surface mount package with dimensions 22.86mm x 22.8mm x 21.1mm.
- High efficiency operation at 85% typical efficiency.
- Ideal for telecommunication, industrial equipment, and consumer electronics applications.
- Operating temperature range suitable for various industrial environments.
- Lightweight design weighing only 5.8 grams enabling compact product design.
Product Description
TDK-Lambda CC6-1212DR-E DC/DC Converter is a highly reliable isolated voltage converter designed to provide a stable 12V DC output at 250 mA current from input voltages ranging between 9V DC minimum and 18V maximum. Its surface mount package and compact size (22.86mm length, 22.8mm width, 21.1mm depth) support highly integrated PCB designs in modern electronics.
With a maximum output power of 6W and an isolation voltage of 500V, this converter ensures safe electrical separation between input and output, critical for protecting sensitive subsystems. The unit achieves typical efficiency of 85%, reducing power losses and thermal footprint.
Designed in the CC-E series, it supports multiple input voltage configurations and features a dual output with an input ratio of 2:1. The operating temperature range from -40°C to 85°C makes it suitable for harsh industrial, telecommunications, and consumer device environments.
This DC/DC converter is RoHS compliant and manufactured in Japan, assuring high build quality and durability. Its lightweight construction (5.8 grams) and surface mount package type enable easy integration into compact and space-constrained applications.
The converter features strong electrical isolation of 500V ensuring safety. Compact dimensions facilitate use in dense PCB layouts. High efficiency lowers operating temperatures and energy losses. Wide input voltage range for versatile power supply applications.
Broad operating temperature range suitable for industrial and commercial use. Surface mount design for automated manufacturing processes. Manufactured in Japan with high-quality standards.
Suitable for industrial electronics, laboratory instrumentation, telecommunication equipment, and consumer electronics requiring reliable DC voltage conversion with electrical isolation. Explore the full range of DC/DC Converters at EnvMart to find solutions tailored to your power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK-Lambda CC6-1212DR-E provides a stable output voltage of 12V DC with a maximum output current of 250 mA.
This converter operates with input voltages ranging from 9V DC to a maximum of 18V DC.
It achieves a typical efficiency of 85%, helping to reduce power losses during operation.
The dimensions of this model are 22.86 mm in length, 22.8 mm in width, and 21.1 mm in depth.
The converter offers an isolation voltage of 500V, ensuring safe electrical separation between input and output.
It is designed to operate within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
This DC/DC converter has a lightweight design, weighing only 5.8 grams.
The model features a surface mount package type, facilitating automated manufacturing processes.
It is suitable for use in telecommunication, industrial equipment, and consumer electronics requiring reliable DC voltage conversion.
The CC6-1212DR-E features two outputs, providing both 12V DC and -12V DC.
The maximum output power of this converter is 6W.
This DC/DC converter is manufactured in Japan, ensuring high build quality and standards.
