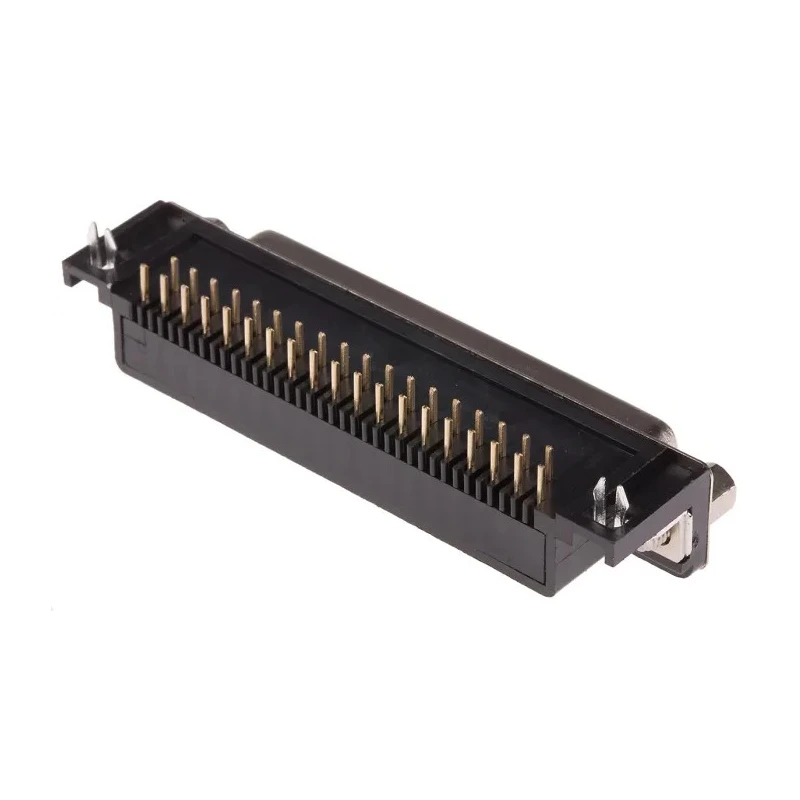

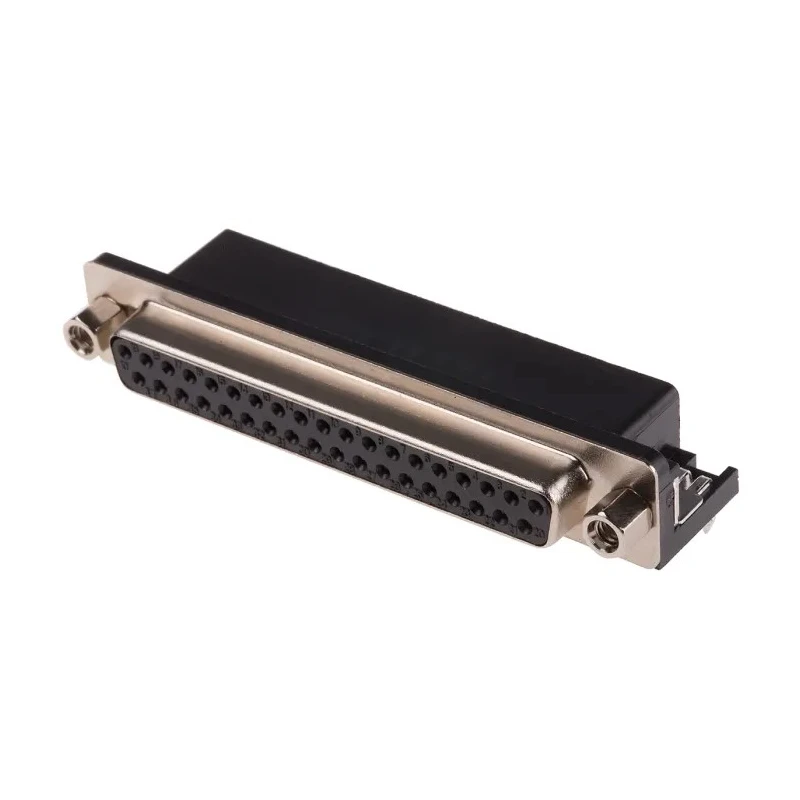

RS PRO 107 37 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Female 811-7131
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 3A |
| Model | 811-7131 |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | 107 |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 37 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| A range of Right Angle PCB mount D-Sub connectors with | Nickel plated steel shells, Black Glass-Filled Thermoplastic PBT UL 94V-0 insert, Brass Gold flash plated stamped contacts, Brass Tin plated grounding hook boardlocks, Brass Nickel plated M3 threaded screwlocks installed and 9.4 mm footprint |
Key Features
- Designed for through hole PCB mounting with right angle orientation.
- Contains 37 female brass contacts plated with gold for reliable signal transmission.
- Operates up to 250V and supports 3A current.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
- Suitable for industrial and electronic equipment requiring secure connector solutions.
- Wide operating temperature range from -55°C to 105°C enables use in harsh environments.
- Includes nickel plated steel shell and brass M3 threaded screwlocks for robust mounting.
- Contact pitch of 2.77 mm ensures precise mating alignment in applications.
Product Description
RS PRO 811-7131 is a high-quality 37 Way Right Angle D-Sub Connector designed for through hole PCB mounting, featuring a 2.77 mm pitch. It comes with a 4 to 40 UNC screw lock mechanism to ensure secure fixing in electronic assemblies. The connector has female brass gold-plated contacts that provide optimal electrical conductivity and resistance to corrosion.
The housing material is fibreglass reinforced polybutylene terephthalate, complying with UL 94V-0 standards, which offers excellent mechanical strength and thermal resistance. Operating voltages can reach up to 250V, with a current rating of 3A, making this connector suitable for a broad range of electronic and industrial applications.
This connector operates reliably across a wide temperature range from -55°C to 105°C, enabling performance in demanding environments. The nickel-plated steel shell adds mechanical durability and EMI shielding. It further features brass tin-plated grounding hook boardlocks and brass nickel-plated M3 threaded screwlocks for enhanced stability during installation.
The precise 2.77 mm contact pitch and a compact design with a 9.4 mm footprint accommodate dense PCB layouts. This RS PRO connector is ideal for industrial electronics, power and connectors, instrumentation, and other applications needing robust and reliable D-Sub connections.
Designed for through hole PCB mounting with right angle orientation. Contains 37 female brass contacts plated with gold for reliable signal transmission. Operates up to 250V and supports 3A current. Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
Suitable for industrial and electronic equipment requiring secure connector solutions. Wide operating temperature range from -55°C to 105°C enables use in harsh environments. Includes nickel plated steel shell and brass M3 threaded screwlocks for robust mounting.
Contact pitch of 2.77 mm ensures precise mating alignment in applications. Explore the RS PRO range and find high-performance D-Sub Connectors for your industrial, manufacturing, laboratory, and commercial electronic assembly needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 250V.
The contact pitch of this D-Sub connector is 2.77 mm.
It is constructed with fibreglass reinforced polybutylene terephthalate housing and features brass contacts plated with gold.
The connector operates reliably within a temperature range of -55°C to 105°C.
This connector is designed for through hole PCB mounting with a right angle orientation.
The termination type for this model is solder.
This connector contains 37 female contacts.
It includes a 4 to 40 UNC screw lock mechanism for secure fixing.
The connector has a compact footprint of 9.4 mm.
It is suitable for industrial and electronic equipment requiring secure connector solutions.
The connector features a nickel-plated steel shell that adds mechanical durability and EMI shielding.
